5
For Remote Blower Use:
See Figure 3, page 3.
1. Remove 2 hood electrical knockouts and install
1/2” conduit connectors.
2. Run black, white and green supply wires through
1/2” conduit to hood electrical knockout behind
J box.
3. Connect power supply wires to hood wires behind
J box (white to white, black to black, green to
green). Use wire nuts supplied.
4. Run 5 wires (#14 AWG) in 1/2” conduit from the
remote blower to the electrical knockout behind
the remote wire cover.
5. Connect remote blower wiring to “pigtail” wires
behind remote wire cover with wire nuts supplied
(white to white, black to black, green to green and
black to brown, white to white, red to red and
blue to blue) See Figure 6.
6. Connect other end of “pigtail” at white connector.
Verify that connectors are tightly connected.
6. Connect Wiring
For Internal Blower Use:
See Figure 1 or 2, page 3.
1. Remove electrical knockout behind J box and
install 1/2” conduit connectors.
2. Run 120V AC 60Hz, 15A supply wires through 1/2”
conduit to hood electrical knockout behind J box
cover.
3. Connect blower cord wires to house wiring through
electrical knockouts. Use wire nuts supplied (white
to white, black to black, green to green).
4. Connect blower cord at white connector behind
connector access panel (if not already connected).
Verify that connectors are tightly connected.
Installation

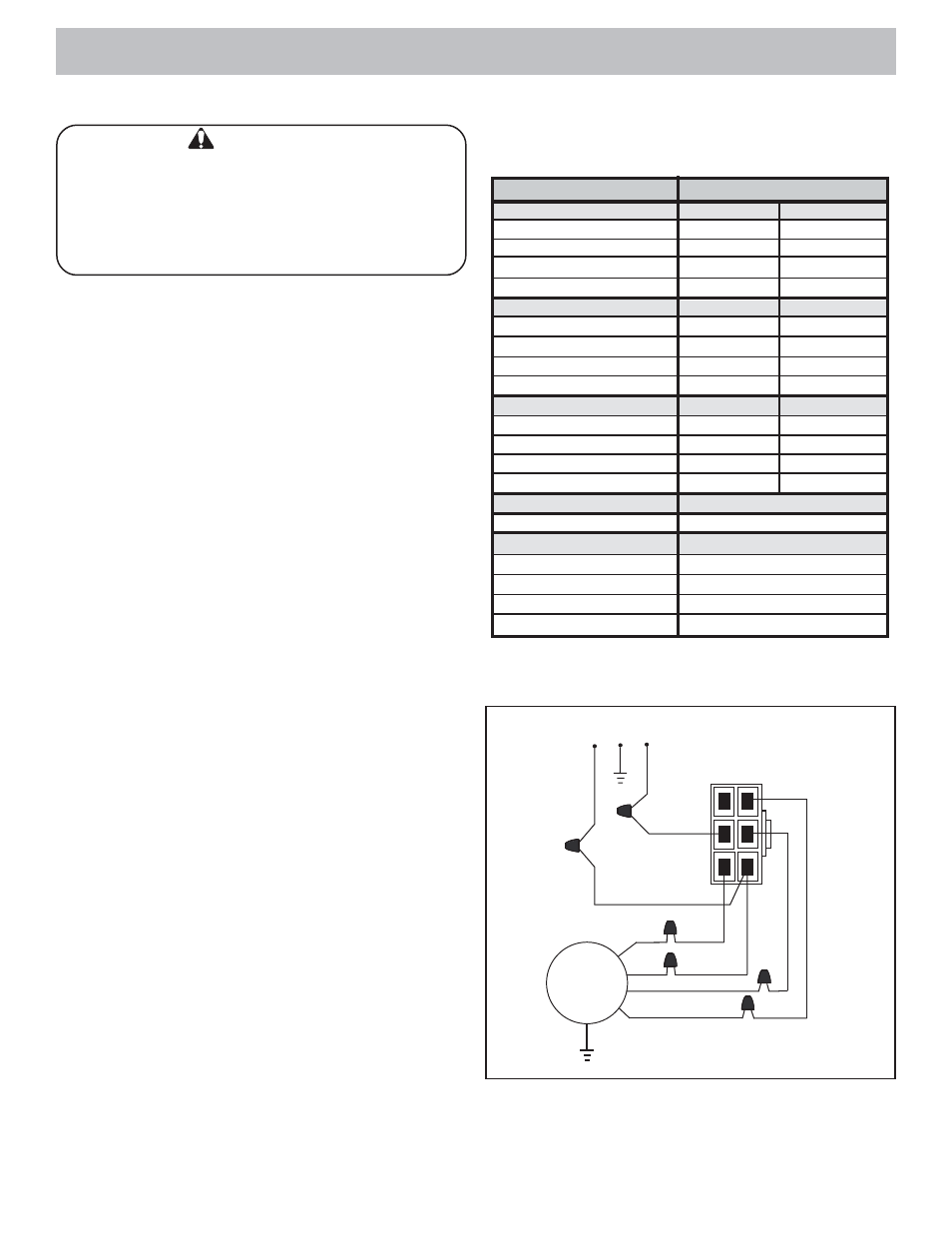

Figure 6 - Remote Blower Pigtail Assembly
7. Reassemble Hood
Reattach the following:
1. Connector access panel (internal blower only)
2. J box
3. Remote wire cover (remote blower use only)
4. Back filter rail
5. Filters
Accessories
The following accessories are available from your Bosch
dealer or through Bosch Service: 800-944-2904. Please
reference the model number when requesting these items.
Accessory Model #
6” Duct Covers
Black
White
Biscuit
Stainless Steel
30” 36”
DCZ7607UC N/A
DCZ7606UC
DCZ7605UC
DCZ7602UC
DCZ9666UC
DCZ9665UC
DCZ9662UC
12” Duct Covers 30” 36”
Biscuit
Black
Stainless Steel
White
DCZ7207UC
DCZ7206UC
DCZ7205UC
DCZ7202UC
N/A
DCZ9266UC
DCZ9265UC
DCZ9262UC
Recirculation Kit 30” 36”
Biscuit
Black
Stainless Steel
White
DRZ7007UC
DRZ7006UC
DRZ7005UC
DRZ7002UC
N/A
DRZ9066UC
DRZ9065UC
DRZ9062UC
Charcoal Filter DHZ7960UC
3 1/4 x 10Transition DHZ3410UC
Integral Blower, 400 CFM DHG4001UC
Integral Blower, 600 CFM DHG6001UC
Remote Blower, 600 CFM DHG6003UC
Blowers*
*for use with DAH95 models only
Remote Blower, 1000 CFM DHG1003UC
M
WHITE
BROWN
( PROVIDED W/HOOD )
BL
UE
RED
WHITE
BLACK
N L1 GND
BROWN
WHITE
RED
BLUE
GND
WARNING:
Use only spring type wire nuts (included) to make
electrical connections. Replacement wire nuts must be
rated for a minimum of (2) #18ga wires and a maximum
of 4 #14ga wires, UL & CSA rated to 600V and 302º F/
150º C. Request #189692 when ordering from
BSH.
