Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
! WARNING
Combination Hammer
DUST SHIELD
LOCKING
SLEEVE
SELECTOR LEVER
TRIGGER
SWITCH
VARIABLE
SPEED DIAL
TRIGGER
RELEASE
SWITCH
SERVICE
REMINDER
LIGHT
VENTILATION
OPENINGS
HAND GRIP
AUXILIARY
HANDLE
NOTE: For tool specifications refer to the nameplate on your tool.
POWER
INDICATOR
LIGHT
Model number 11241EVS 11248EVS
Shank style SDS Max Spline
Maximum Capacities:
Carbide tipped bits 1 9/16" 1 9/16"
Thick wall core bits 4" 4"
SPLINE TOOL HOLDER
(Model 11248 only)

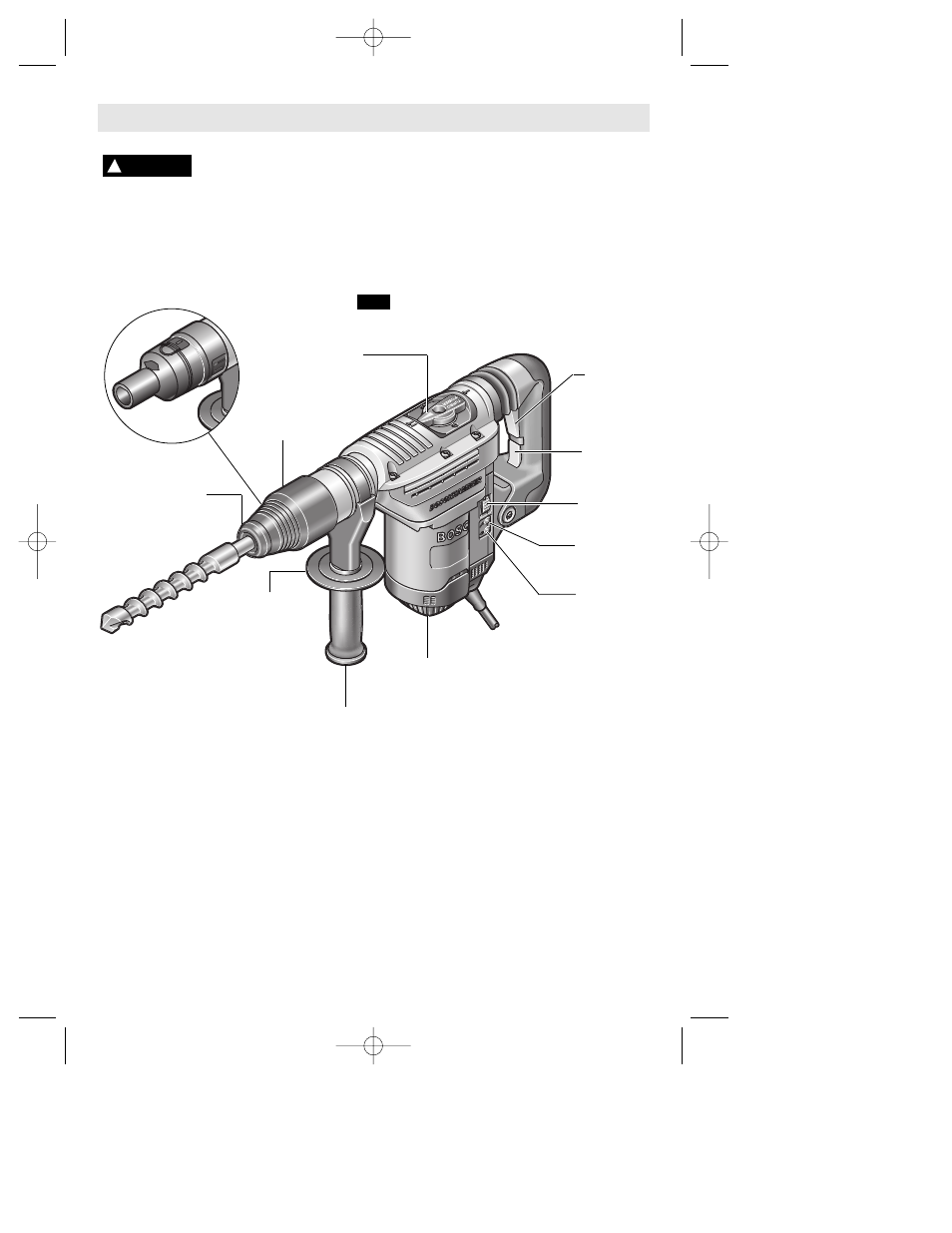

FIG. 1
