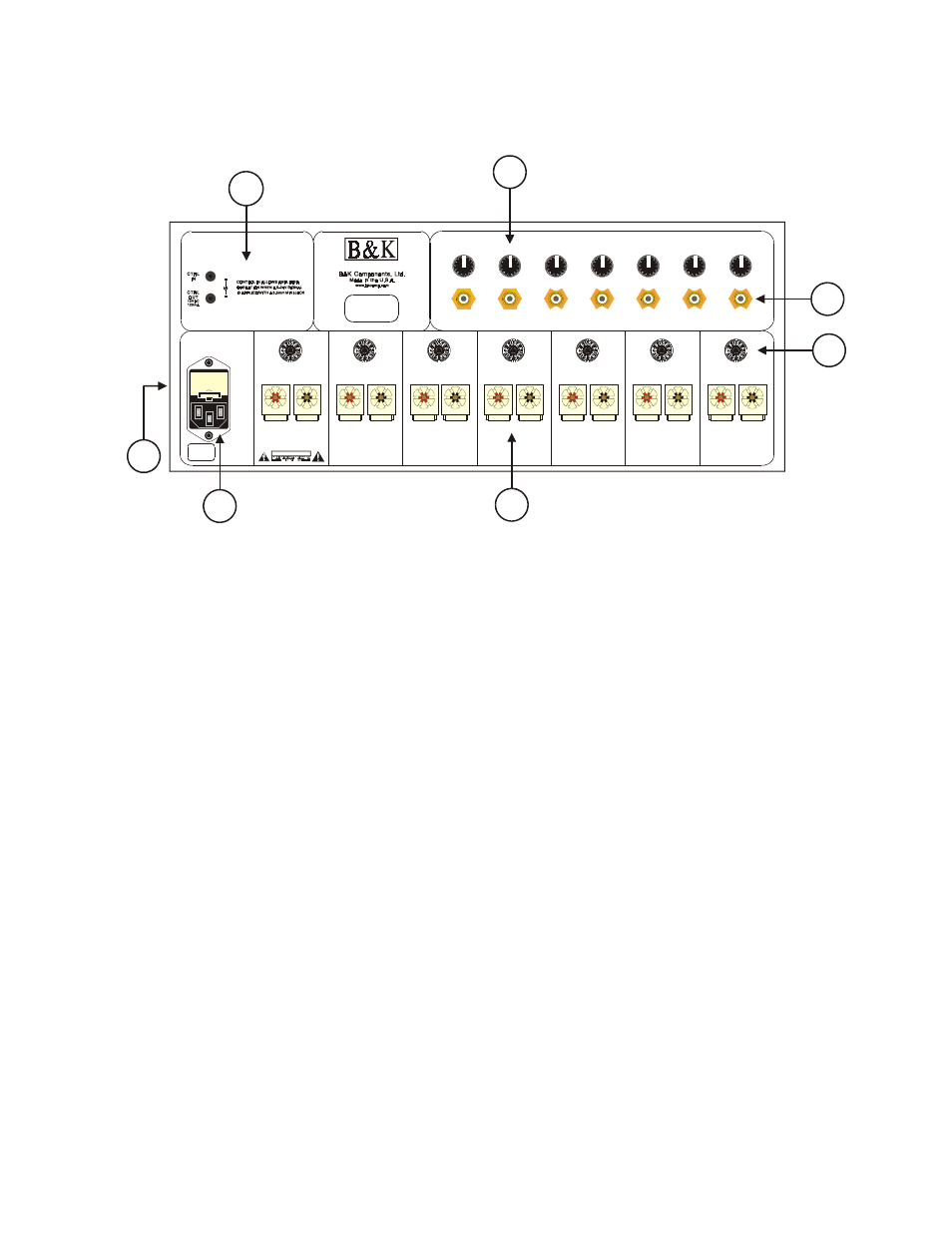

Rear Panel View
1. AC fuse holder 4. Amplifier control muting input/output
2. AC Input receptacle 5. Level controls
3. Speaker outputs 6. Inputs
7. Speaker fuses
REAR PANEL DESCRIPTION
1. AC fuse holder - Holds the AC Line fuse. This fuse is a 15 Amp / 250 Volt Slow Blow
fuse. Replace only with the same type and value fuse.
2. AC Input receptacle - For attaching the supplied AC power cord to the amplifier.
3. Speaker outputs - For connecting the speakers to the amplifier. Explained further on
page 6.
4. Amplifier control muting input/output - To provide remote switching of the mute
on/off feature of the amplifier. Explained further on pages (8 - 9).
5. Level controls - For adjusting the input level of each channel into the amplifier. There
are seven level controls on the back of the amplifier. One level control for each channel.
6. Inputs - For connecting signal patch cables (interconnects) from the preamplifier to the
amplifier to pass a signal. Pages (5 - 6).
7. Speaker Fuses - Protection against amplifier damage in the case of shorted speaker
wires. Replace fuse with the same value 6 AMP T-Lag only! VERY IMPORTANT!
Page 4
