5-6 FORK LIFT OPTION
Raise the positioning lock pins at the top of each
fork. Place fork in the middle of the frame over the
notch in the lower edge. Slide forks to desired posi-
tions and lower pins to lock forks in place.
28
5-7 BALE SPEAR OPTION
Insert long spear into top of frame and fasten with
eccentric nut as shown. Tapered side of nut must be
against frame.
Torque nut to 470 -505 ft./lbs.
Insert
short spears into tubes at bottom of frame and tight-
en lock bolts.

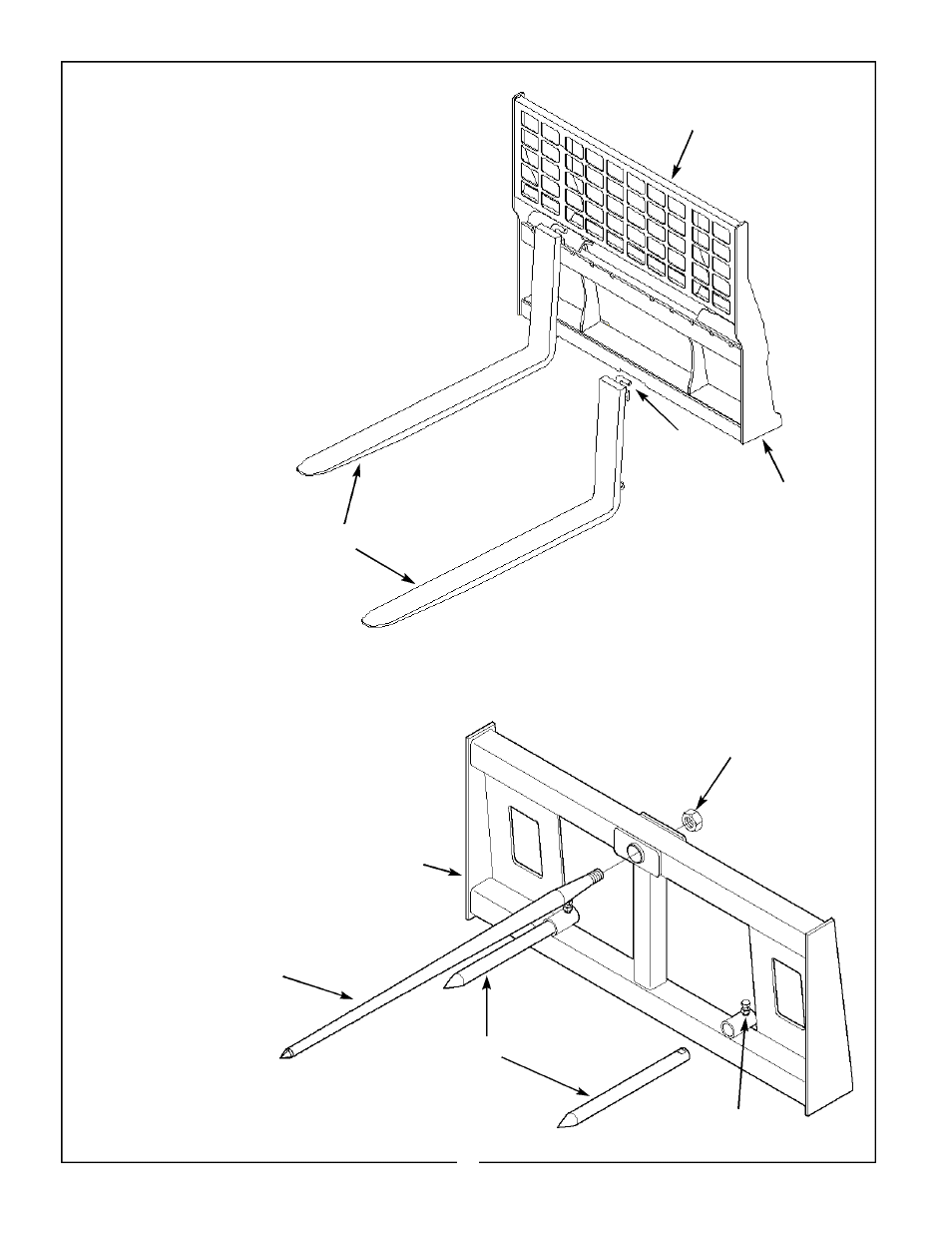

Eccentric Nut
Frame Assembly
Locking Bolt
Long Spear
Short Spears
Guard
Mainframe
Forks
Lock Pin
