BRI BRI
FUSES
25A 25A
SPEAKERS
PROTECT
POWER
+12V GND REM
CH1 CH3
CH2 CH4
FUSES
25A 25A 25A
SPEAKERS
+12V PROTECT
POWER
GND REM SP SP SP SP
+ + - -
4 Ohm
(2 Ohm Minimum)
4 Ohm
(2 Ohm Minimum)
11

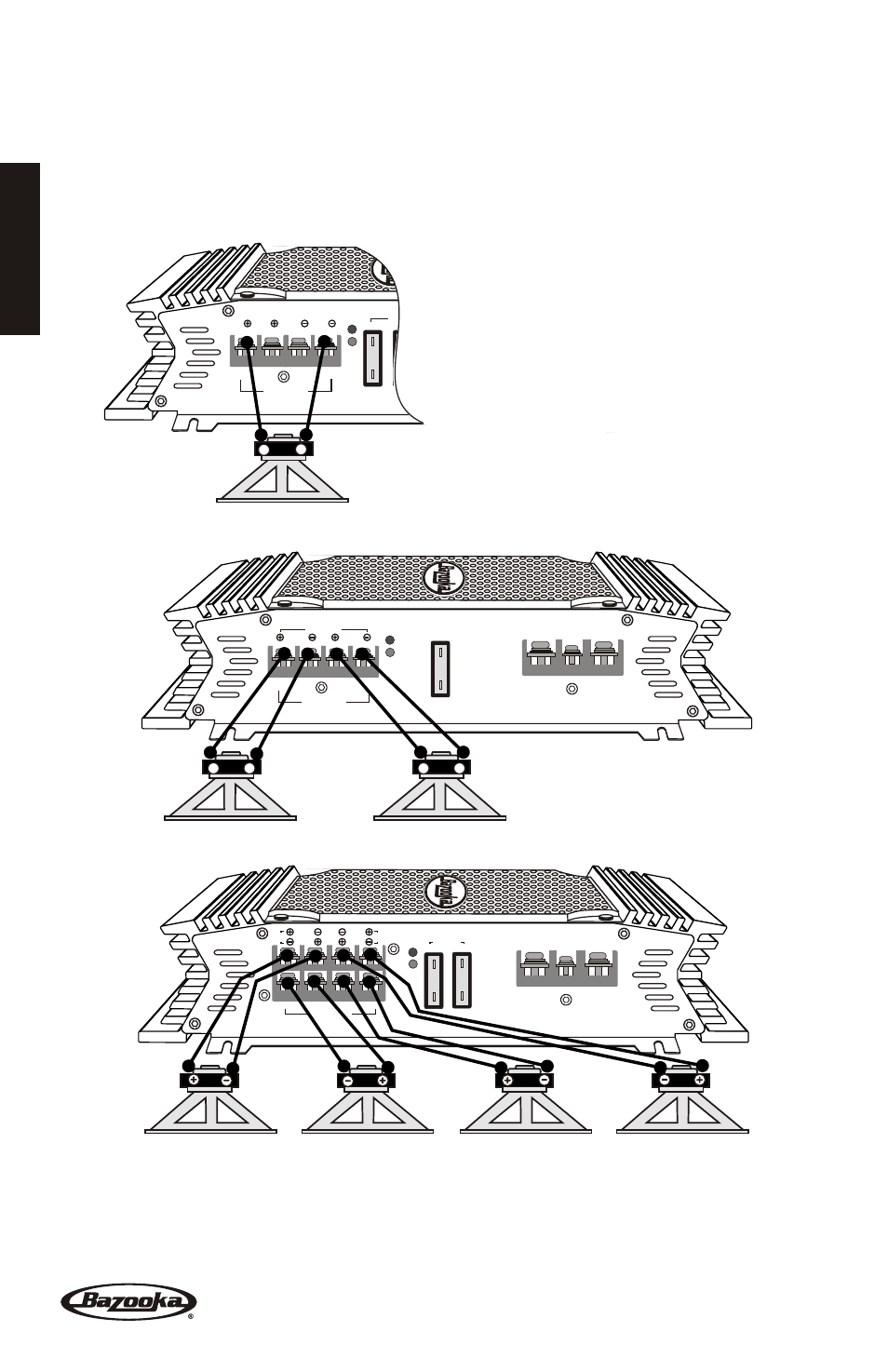

Make the speaker connections using speaker wire that is at least 16 gauge or heavier.
As with any audio component, proper phasing of the amplifier and speakers is essential for
strong bass response. When connecting, make sure that positive (+) from the amplifier is
connected to the positive (+) of the speaker, and the same for negative (-).
S
PEAKER CONNECTIONS
ELA265, ELA2100 & ELA2150 SPEAKER CONNECTIONS
ELA1190, ELA1300, ELA1500 & ELA1800 SPEAKER CONNECTIONS
4 Ohm
(2 Ohm Minimum)
4 Ohm
(2 Ohm Minimum)
4 Ohm
(2 Ohm Minimum)
4 Ohm
(2 Ohm Minimum)
EN
GL
IS
H
FUSE
25A
SPEAKERS
BRIDGED +12V
PROTECT
POWER
GND REM
LEFT RIGHT
+ + - - + + - -
4 Ohm
(2 Ohm Minimum)
4 Ohm
(2 Ohm Minimum)
Please note that although the ELA1190,
ELA1300, ELA1500 and ELA1800 are mono
amplifiers, we have provided two sets of
speaker terminals on the amplifier. These
terminals are connected in parallel
internally (connected together). The
second set of speaker terminals are
intended for ease of connection when
running multiple woofers.
ELA465 SPEAKER CONNECTIONS
