10000W Portable Generator

5

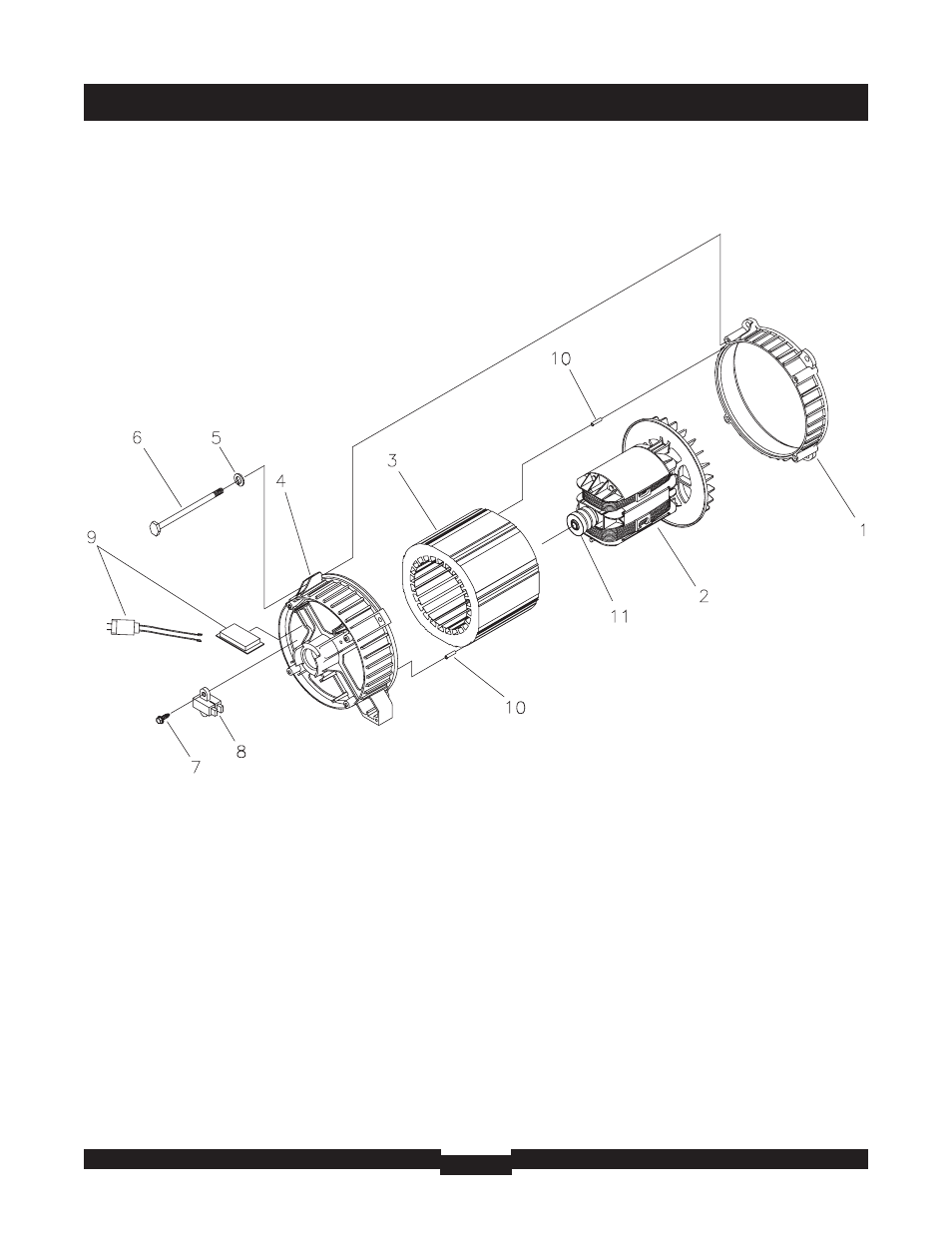

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part #

Description

1

186059GS

ADAPTER, Mounting, Alternator

2

191952GS

ASSY, Rotor (Includes Item 11)

3

191953GS

STATOR

4

193336GS

RBC, (with O-Ring p/n 189197GS)

5

*

WASHER, 1/4-M6 Lock

6

66449KGS

BOLT, M6 - 1.0 x 200

7

66849GS

TAPTITE, M5 - 0.8 x 16

8

66386GS

ASSY, Holder, Brush

9

202165GS

KIT, AVR & Boost

10

81917GS

PIN, Roll, 4mm x 10

11

65791GS

BEARING

* - Items without part numbers are common fasteners and
are available at your local hardware store.
