10000W Portable Generator

4

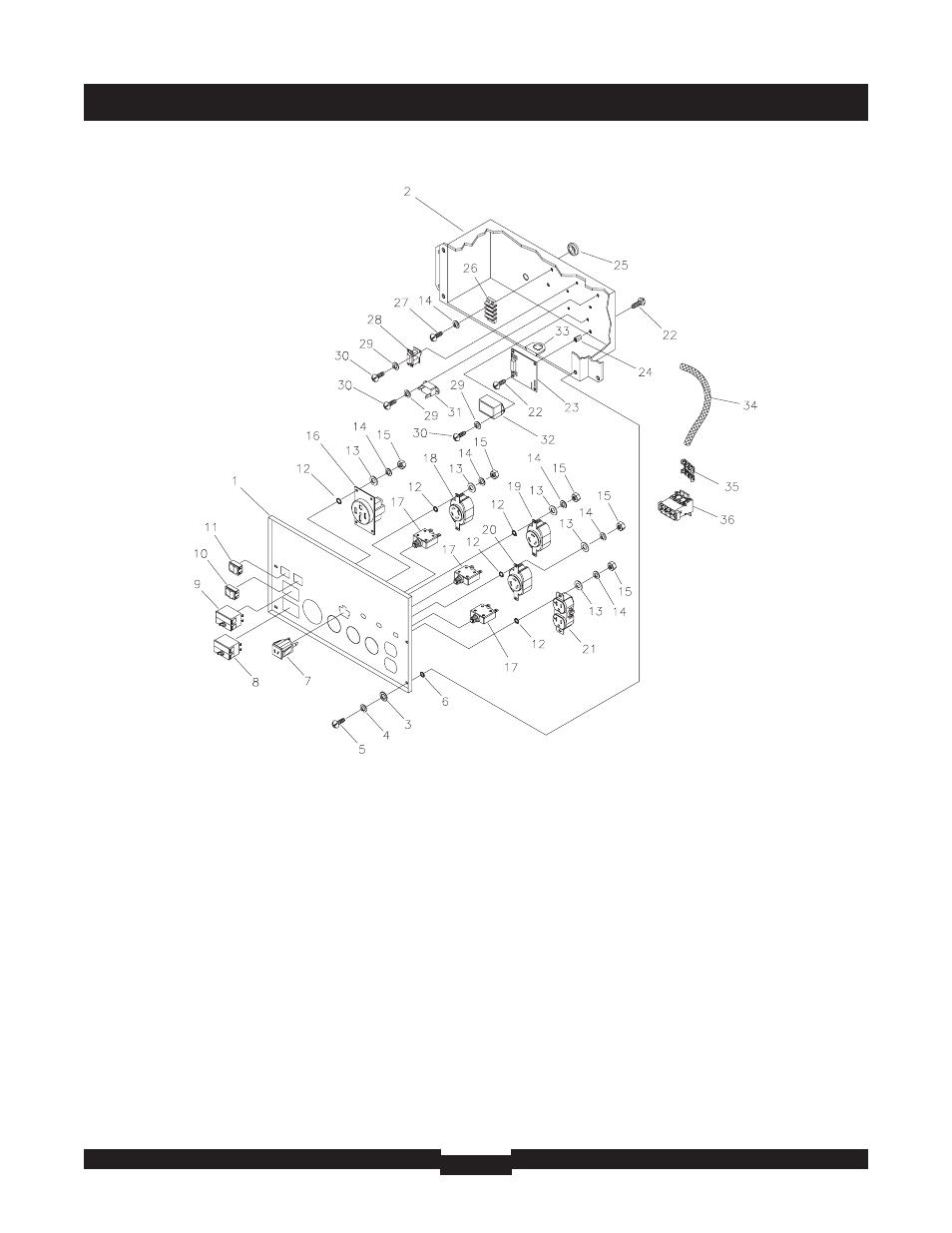

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part #

Description

1

M199022GS

PANEL, Control

2

201864GS

BOX, Control Panel

3

*

WASHER, Flat, #10 - M5

4

*

LOCKWASHER, M5

5

*

PPHMS, M5 - 0.8 x 12

6

*

WASHER, M6 - 1/4, Int. Shakeproof

7

90418GS

OUTLET, 12V DC Snap

8

191480BGS

BREAKER, Circuit, 40A, 2P

9

191480AGS

BREAKER, Circuit, 30A, 2P

10 82538GS

SWITCH, Rocker

11 78653GS

SWITCH, Eng, Run-Stop

12 *

WASHER, Shakeproof, Int. #8

13 *

WASHER, Flat, M4

14 *

LOCKWASHER, M4

15 *

NUT, M4 - 0.7

16 B4262GS

RECEPTICLE

17 75207GS

BREAKER, Circuit, 20A W/hardware

18 43437GS

OUTLET, 120/240V, 30A

19 68868GS

OUTLET, 120V, 30A

20

74190GS

OUTLET, 120V, 20A

Item Part #

Description

21

68759GS

OUTLET, 120V, 20A, Duplex

22

*

PHTS, 6 - 32 x 3/8"

23

195406GS

ASSY, PCB, Control, Stepper Motor

24

64525GS

STANDOFF, Hex, 3/4"

25

62265GS

GROMMET

26

92953GS

TERMINAL, Block

27

*

PPHMS, M4 - 0.7 x 20

28

84028GS

TRANSFORMER, Idle Control

29

*

LOCKWASHER, M3

30

*

PHMS, M3 - 0.5 x 10

31

87962GS

BREAKER, Circuit, 10A, 12V

32

77314GS

THERMAL, Relay

33

188632GS

BOOT, Rubber Wire Outlet

34

194273GS

TUBING

35

199532GS

STRIP, Dual Row, TPA, 6 Circuit

36

199528GS

PLUG, Dual Row, Housing, 6 Circuit

* - Items without part numbers are common fasteners and
are available at your local hardware store.
