3. Wiring Examples
You’ll be surprised how flexibly you can set up your MIC100. The following chapter
describes some typical wiring examples.
3.1 Enhancing vocals and instruments in
live applications
Here, the MIC100 is wired before the mixer’s channel input. Thus, the sound
gains in warmth and transparency. Due to the integrated limiter, distortion is
eliminated effectively.
XLR-input
XLR-output
Microphone input

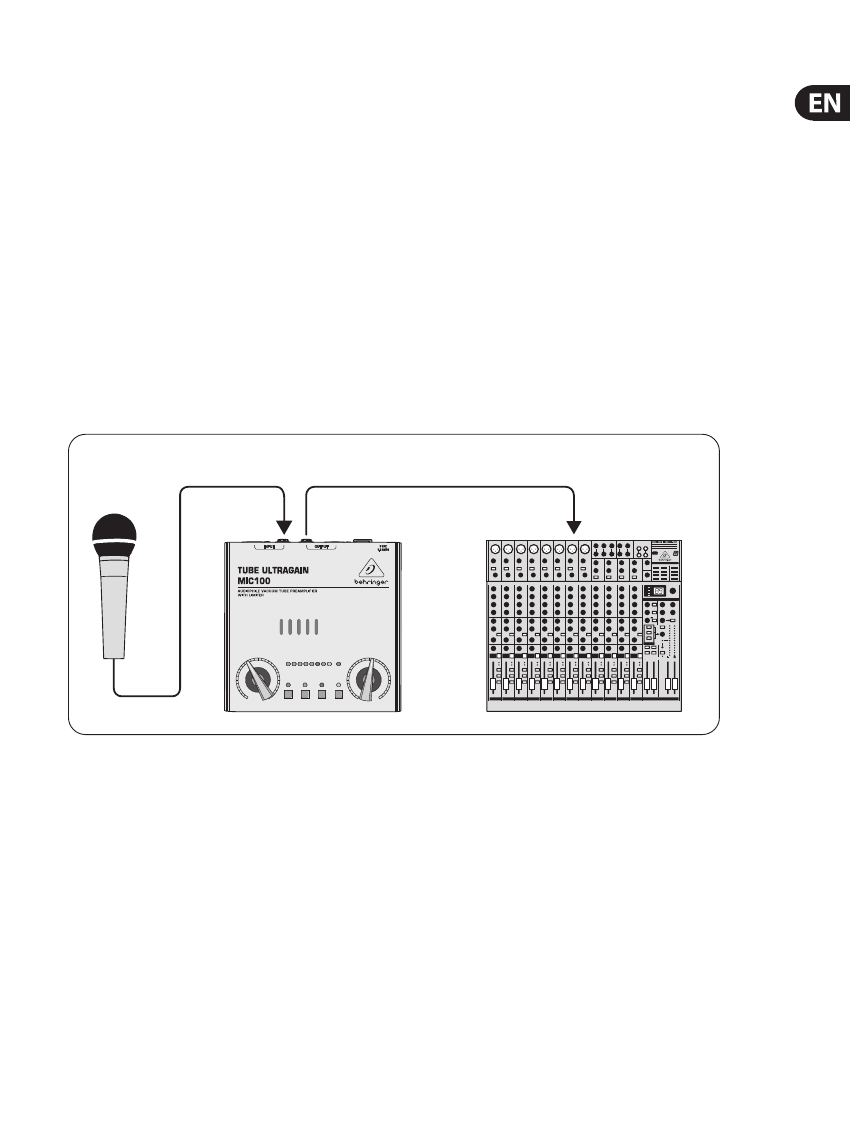

Fig. 3.1: Standard live application
