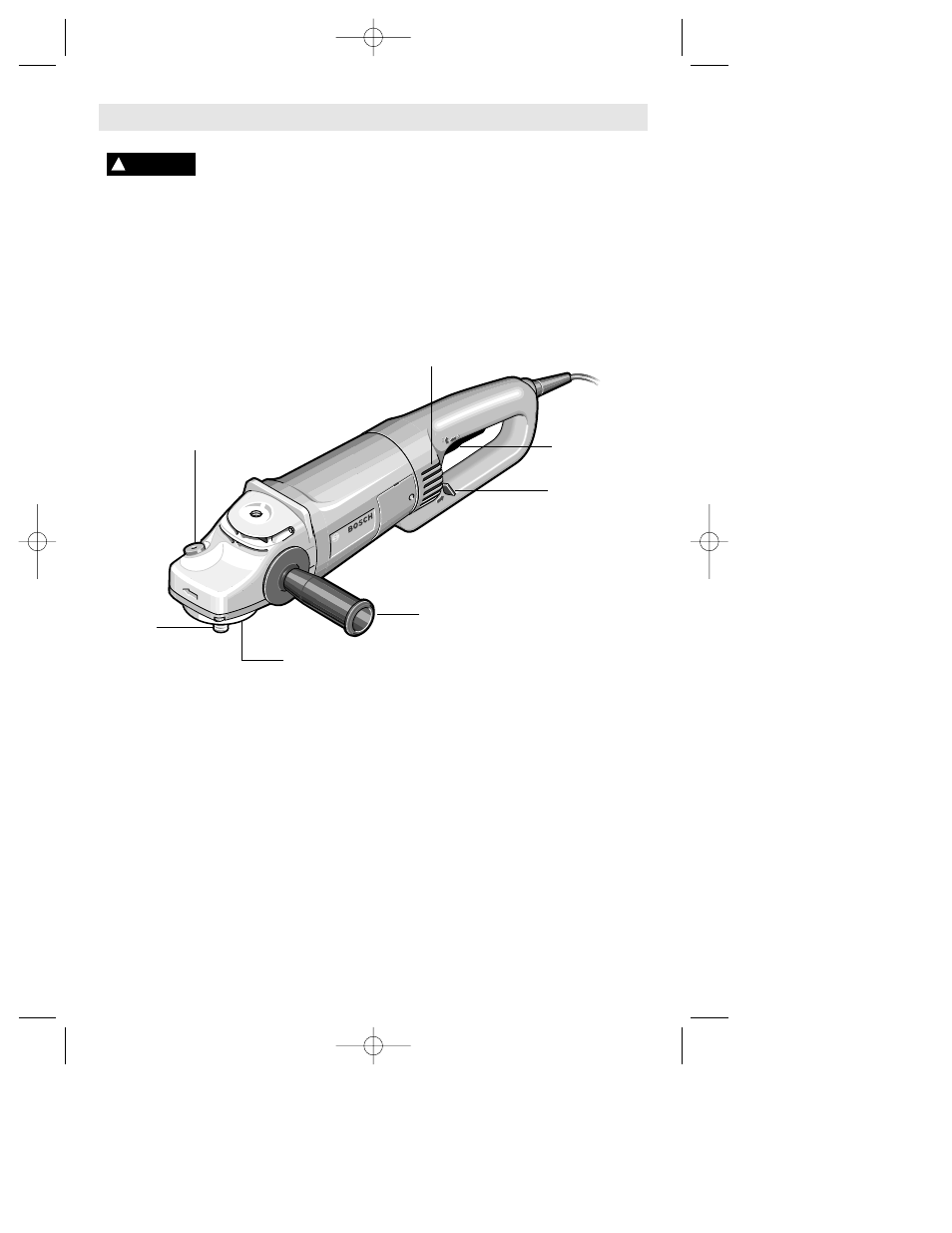

Functional Description and Specifications

SPINDLE LOCK

SIDE HANDLE

MOTOR HOUSING

RELEASE LEVER

(1754 ONLY)

VENTILATION

OPENINGS

PADDLE SWITCH

Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive

safety measures reduce the risk of starting the tool accidentally.

WARNING

NOTE: For tool specifications refer to the nameplate on your tool.

Model number

1752

1754

1757

Spindle thread

5/8"-11 UNC

Max. sanding disc

9" Dia.

*Max. grinding wheel (Type 27)

9" Dia.

*Max. flared cup wheel (Type 11)

5” Dia.

Max. wire wheel

6" Dia.

Max. wire cup brush

6" Dia.

Angle Sanders

SPINDLE

*NOTE: Wheel guard must be used when sander is converted for grinding operations.

MOUNTING FLANGE
