Outdoor LP Gas Barbecue Grill Model No. HBT601B

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

page no.

Step

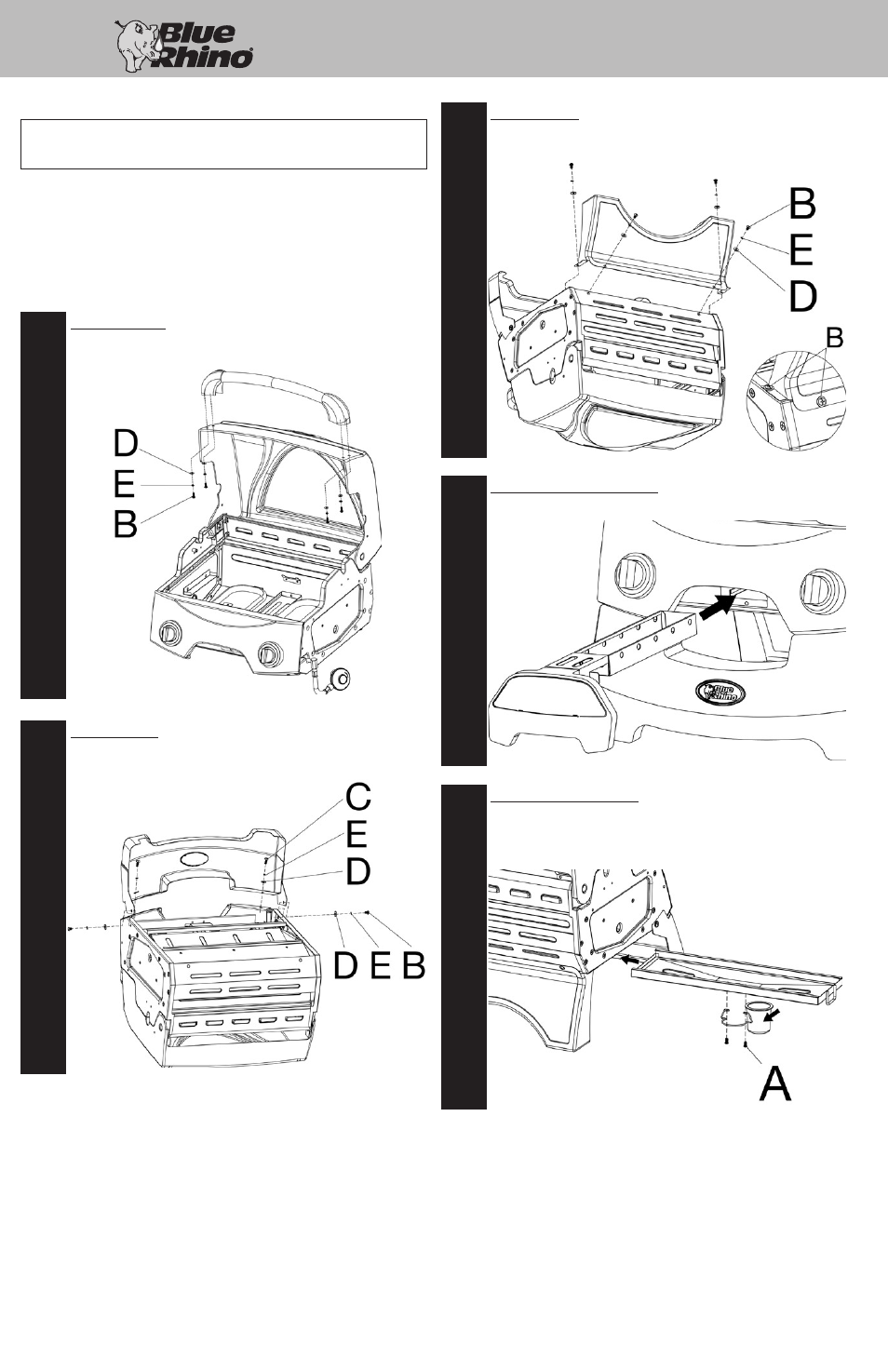

Attach lid handle

Attach lid handle to grill body assembly using 4 sets of large screws (B), lock
washers (E), and washers (D).

Step

Attach front leg

Attach front leg to grill body assembly using 2 sets of bolts (C), lock washers (E),
washers (D) and 2 sets of large screws (B), lock washers (E), and washers (D).

Step

Attach back leg

Attach back leg to grill body assembly using 4 sets of large screws (B), lock
washers (E), and washers (D).

Assembly Instructions

DO NOT RETURN PRODUCT TO STORE.
For assistance call

1.800.762.1142 toll free. Please have your owner’s manual and serial

number available for reference.

For Easiest Assembly:

• To avoid losing any small components or hardware, assemble your product on a hard level

surface that does not have cracks or openings.

• Clear an area large enough to layout all components and hardware.
• When applicable, tighten all hardware connections by hand first. Once the step is

completed, go back and fully tighten all hardware.

• Follow all steps in order to properly assemble your product.

Estimated assembly time: 30 to 40 minutes

Step

Insert charcoal tray assembly

Insert charcoal tray into the second opening on front of grill assembly.

Step

Insert grease pan and cup

A. Attach grease cup support to grease tray using 2 small screws (A).

B. Insert grease cup into grease cup support.

C. Insert grease tray into slots on bottom of grill body.
