Bag Installation and Tube Assembly
INSTALL COLLECTOR BAGS
1. Raise the cover (A, Figure 7).
2. Attach collector bags (B) using grass bag hanger (C)
to bag hanger post (D).
A
D

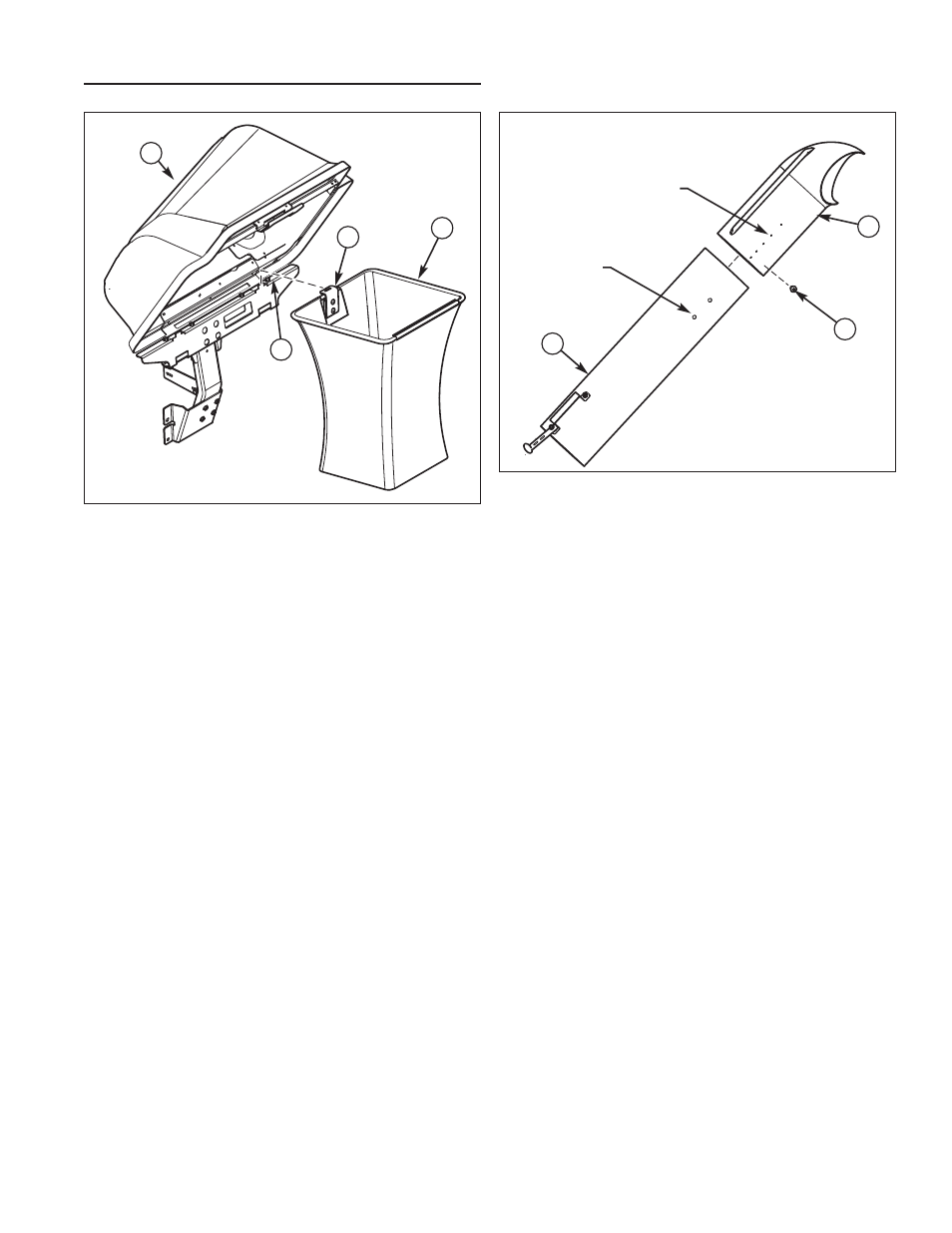

Figure 7. Install Collector Bags
A. Cover
B. Collector Bags
C. Grass Bag Hanger
D. Bag Hanger Post
B
C
B
A
50” Mowers
CONNECTING UPPER AND MIDDLE TUBE
1. Slide the upper tube (A, Figure 8) over middle tube
(B) and secure together using screw (C).
In upper tube:
- Fourth hole from end is for 50” mowers
See Figure 8 for hole locations.
C
Figure 8. Middle and Upper Tube Assembly
A. Upper Tube
B. Middle Tube
C. Screw, 1/4 x 3/4
50” Mowers
