1. Overview

BenQ PE8700 User’s Manual

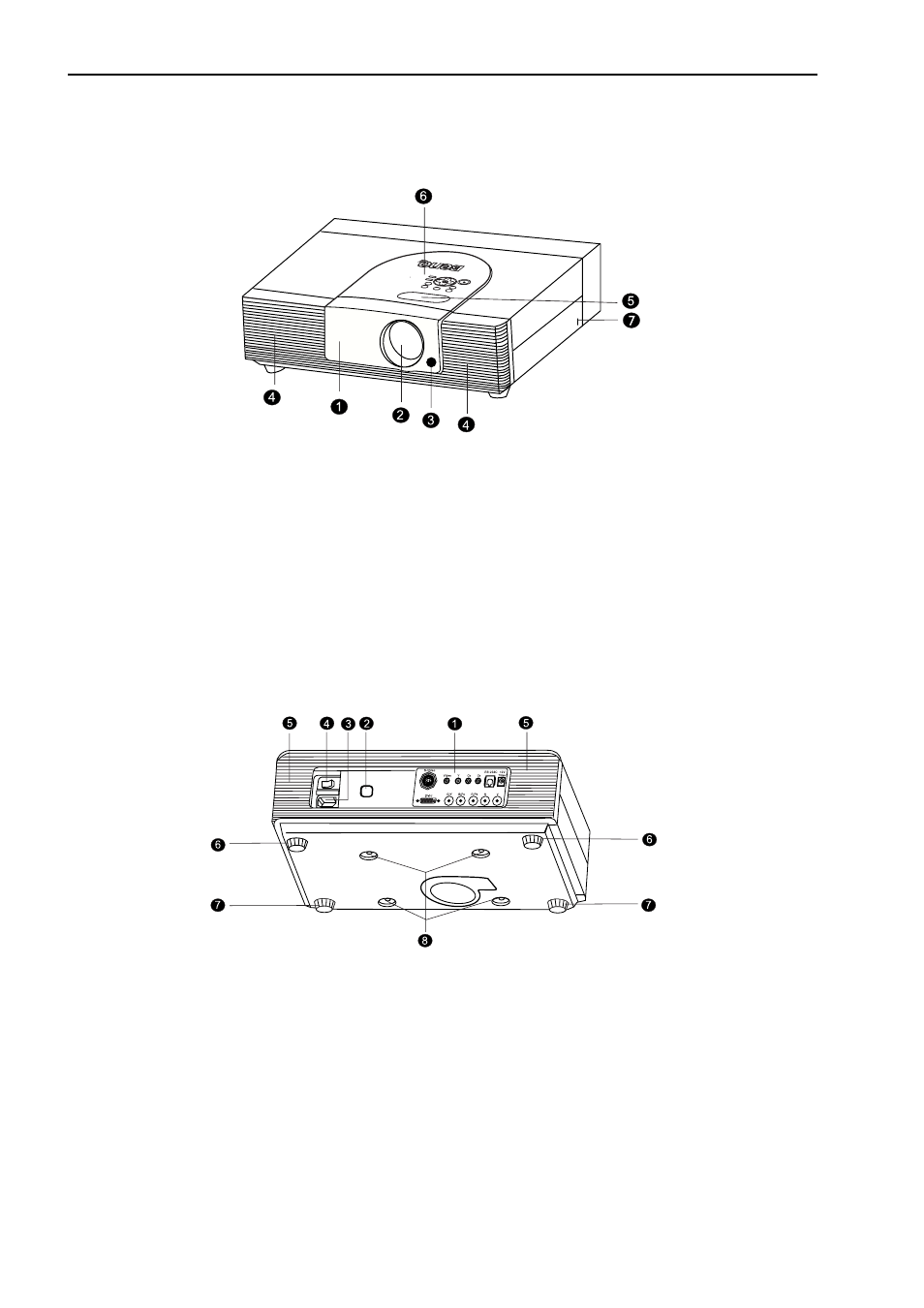

Location

❚

Front/Upper Side

❚

Rear/Bottom Side

1. Front Lamp Cover

Remove this cover when replacing the
lamp.

2. Projection Lens

3. Front IR Sensor

4. Ventilation Holes (exhaust)

5. Focus Ring and Zoom Ring

Adjusts the focus and zoom of the
projection lens.

6. Control Panel

Show lamp status and whether the projector
is on or off.
For more details, see "Control Panel" on
page 5.

7. Kensington Lock

This lock can withstand 150 N of force.

1. Connector Panel

For more details, see "Connector Panel" on page 6.

2. Back IR Sensor

3. AC Power IN Socket.

4. AC Power Switch

AC main power switch.

5. Ventilation Holes (intake)

6. Rear Adjusters

Adjusts the height or projection angle.

7. Front Adjusters

Adjusts the height or projection angle.

8. Ceiling Mount Holes

For attaching the prjector to a ceiling mount
rack.
