Outdoor Charcoal Barbecue Grill Model No. NB1854WRTR
© 2005 Blue Rhino Global Sourcing, LLC. All Rights Reserved. UniFlame ® is a registered trademark of Blue Rhino Global Sourcing, LLC. All Rights Reserved. NB1854WRTR-CHL-100 ES

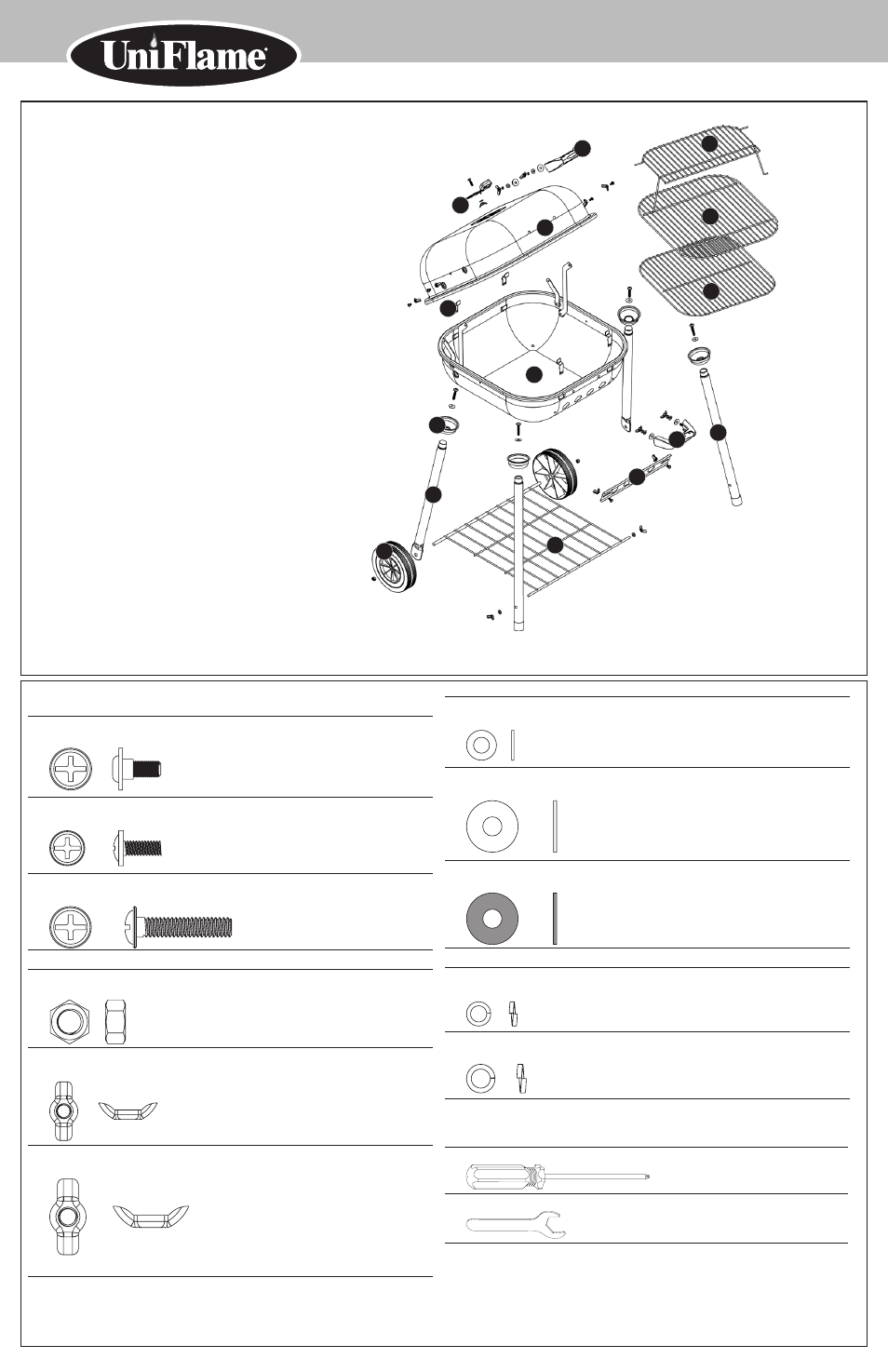

Exploded View
1. Lid
2. Lid Air Vent
3. Handle (2)
4. Bottom Bowl
5. Warming Rack
6. Cooking Grid
7. Charcoal Grid
8. Support Clip (4)
9. Air Damper
10. Leg Support Cup (4)
11. Front Leg (2)
12. Wheel Leg (2)
13. Bottom Support Grid
14. Wheel (2)
3
5
6
7
1
2
8
4
3
9
13
11
10
12
14
Hardware
A. Small Screw 6 pcs
M5x12 Zinc Plated Phillips Truss Head Screw
B. Medium Screw
1 pc
M5x12 Zinc Plated Phillips Truss Head Screw
C. Large Screw 4 pcs
M6x30 Zinc Plated Phillips Truss Head Screw
D. Wheel Nut 2 pcs
M8 Zinc Plated Hex Nut
E. Small Wing Nut 7 pcs
M5 Zinc Plated Wing Nut
F. Large Wing Nut 6 pcs
M6 Zinc Plated Wing Nut
G. Small Washer 6 pcs
ø6 Zinc Plated Washer
H. Large Washer
4 pcs
ø6 Zinc Plated Washer
I. Heat Resistant Washer 4 pcs
ø6 Heat Resistant Washer
J. Small Lock Washer 1 pc
ø5 Zinc Plated Lock Washer
K. Large Lock Washer 4 pcs
ø6 Zinc Plated Lock Washer
Tools Included
L. Screwdriver* 1 pc
M. Wrench* 1 pc
* Not shown at actual size.
