Beckett CG10 - Manual (Page 2)

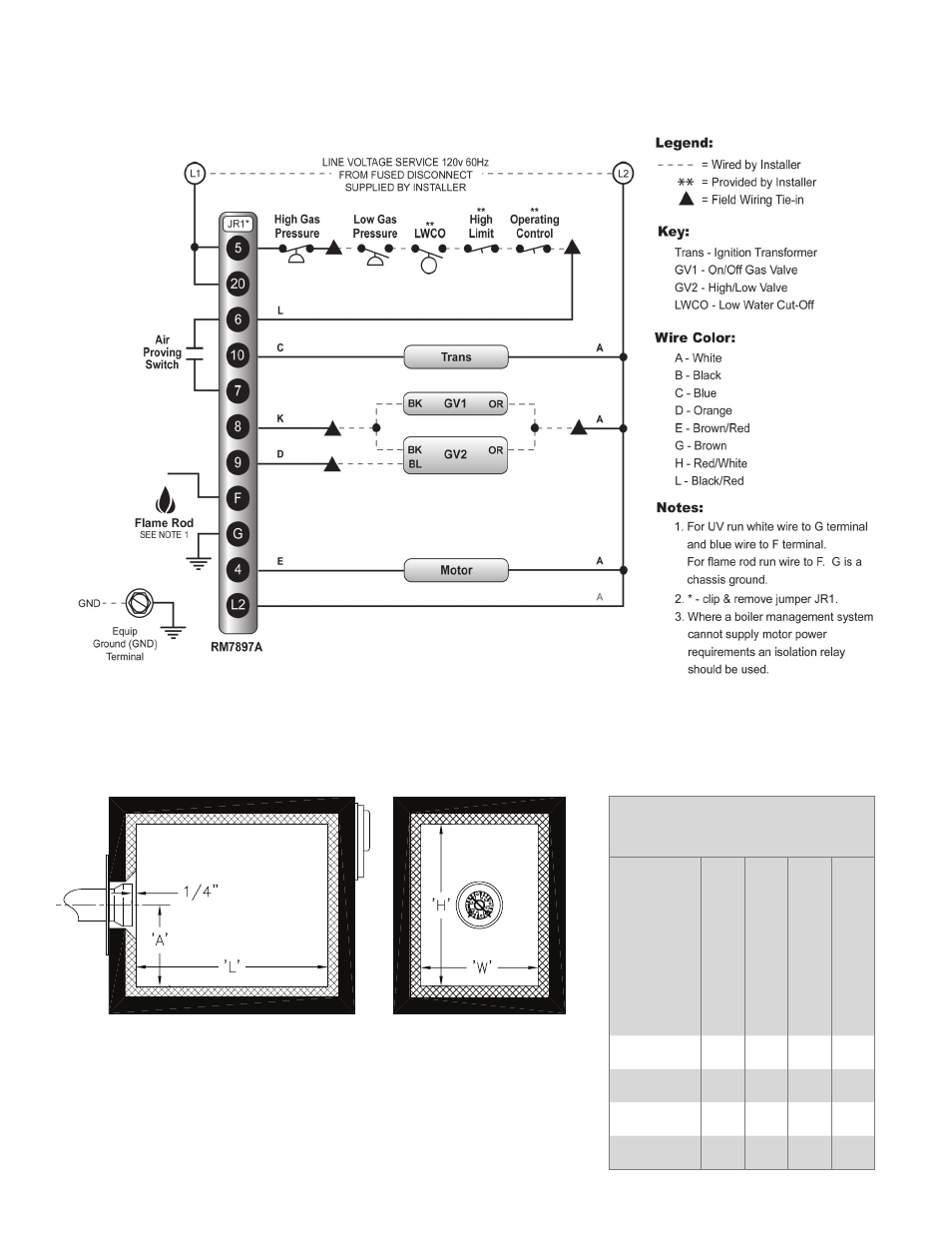

Typical Wiring (Honeywell RM7897A - for reference only)
Minimum Combustion
Chamber Dimensions (inches)
Input Firing Rate in MBH ‘L
’ (Length)
‘W’
(Width)
‘H’
(Height)
Burner Head Centerline to
fl oor
‘A
’
300-400 18 12 12 6
400-600 22 14 14 7
600-900 26 16 16 8
900-1200 30 18 18 9
Combustion Chamber Dimensions
