Parts List
1 Lid Handle 55-07-043
2 Warming Rack 55-14-855
3 Lid 55-07-042
4 Air Vent 55-14-857
5 Cooking Grid 55-14-873
6 Top Hinge (2) 55-15-123
7 Bottom Hinge (2) 55-14-868
8 Charcoal Grid 55-14-856
9 Side Handle 55-14-870
10 Bottom Bowl 55-09-201
11 Side Shelf 55-14-869
12
Charcoal Grid Support
Rod (2)
55-14-872
13 Control Knob Assembly 55-09-203
14 Control Panel 55-09-204
15 Control Knob 55-09-202
16 Leg Support Cup (4) 55-14-864
17 Ash Receiver Slide 55-09-200
18 Left Leg (2) 55-14-863
19 Wheel Leg (2) 55-14-860
20 Bottom Shelf 55-14-858
21 Wheel (2) 55-14-861
22 Hub Cap (2) 55-14-862
23 Axle 55-14-859
24 Ash Receiver 55-09-199

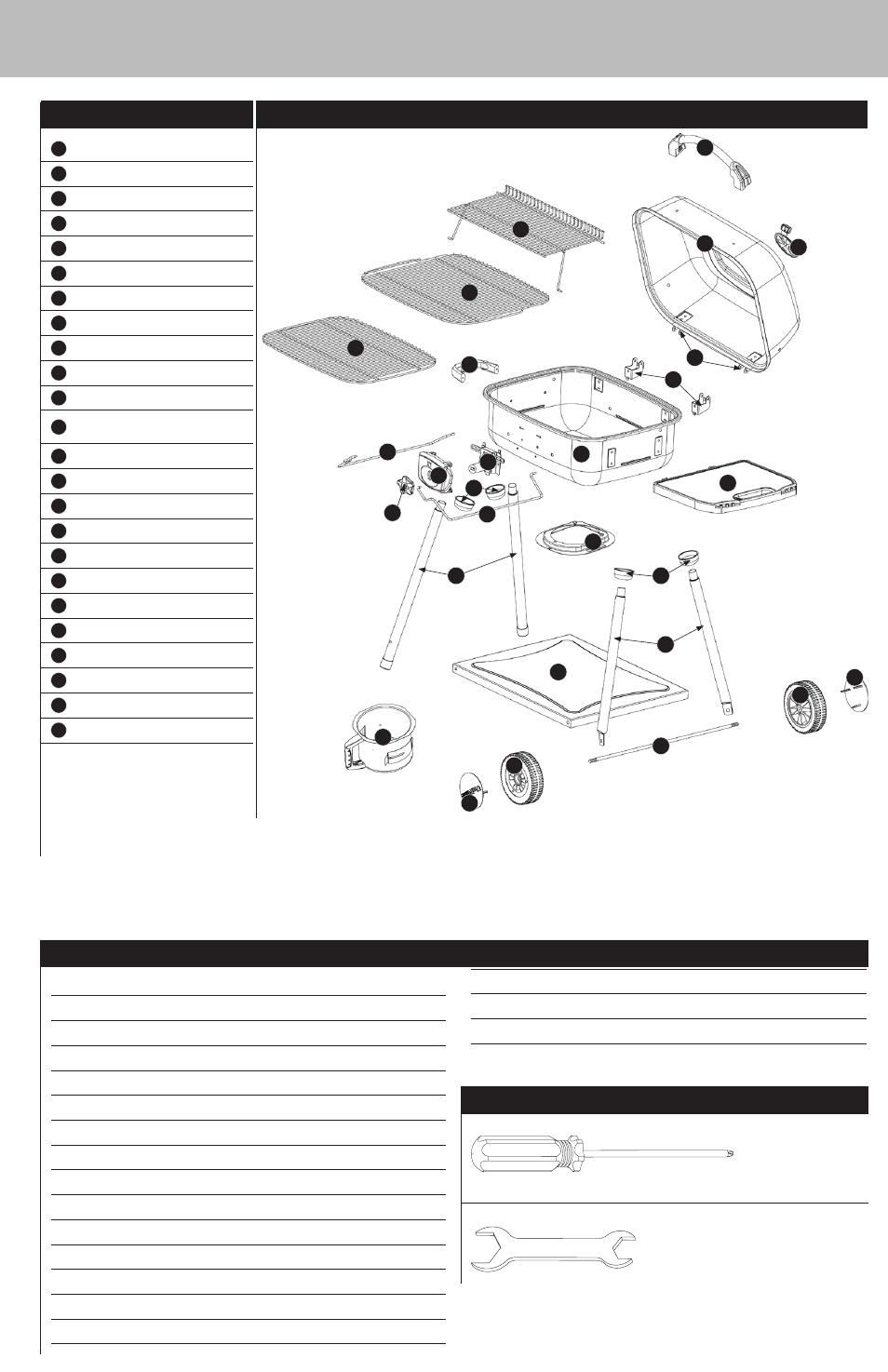

Exploded View
5
17
9
2
10
22
20
21
11
1
4
3
23
24
13
14
12
8
12
21
22
19
16
18 16
Hardware
A
Screw M4x12 Zinc Plated Phillips Truss Head 1 pc
B
Screw M5x12 Zinc Plated Phillips Truss Head 7 pcs
C
Screw M6x16 Zinc Plated Phillips Truss Head 11 pcs
D
Screw M6x40 Zinc Plated Phillips Truss Head 4 pcs
E
Screw M6x45 Zinc Plated Phillips Truss Head 2 pcs
F
Nut M10 Zinc Plated 2 pcs
G
Cap Nut M5 Zinc Plated 2 pcs
H
Wing Nut M5 Zinc Plated 1 pc
I
Wing Nut M6 Zinc Plated 5 pcs
J
Washer ø5.5 Zinc Plated 6 pcs
K
Washer ø6.5 Zinc Plated 5 pcs
L
Washer ø6.5 Zinc Plated 12 pcs
M
Washer ø6.2 Zinc Plated 4 pcs
N
Washer ø6.2 Heat Resistant 12 pcs
O
Lock Washer ø5.5 Zinc Plated 7 pcs
P
Lock Washer ø6.5 Zinc Plated 11 pcs
Q
Pin ø5 x 30 Black Coated 2 pcs
R
Cotter Pin ø1.4 x 30 Zinc Plated 2 pcs
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver 1 pc
M5 - M10 Wrench 2 pcs
