BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
30 29
28
27
35
12
34
33
36
35
24
25
31
32
15
25
19
6
12
10
3
21
21
20
18
1
13
17
13
6
11
12
26
4
16
14
7
22
23
2
REF. PART
QTY. DESCRIPTION
NO. NO.
1 90878 1 Gear Box Mount w/Decals
2 90873 1 Deck Weldment w/Decals
3 90876 1 R.H. Belt Shield w/Decals
4 90877 1 L.H. Belt Shield w/Decals
5 90875 1 Grass Shield w/Decals
6 88660 2 Plug
7 82619 1 Danger Decal
8 50042281 1 RPM Decal
9 83056 1 Warning Decal
10 82618 1 Warning Decal
11 82617 1 Warning Decal
12 50012615 3 Warning Decal
13 50012616 2 Danger Decal
14 90837 1 Model No. Decal Stripe
15 90838 1 Model No. Decal
16 12115 1 Bush Hog Decal
17 90879 1 Belt Installation Decal
18 20414 4 Locknut, Flanged 5/8”

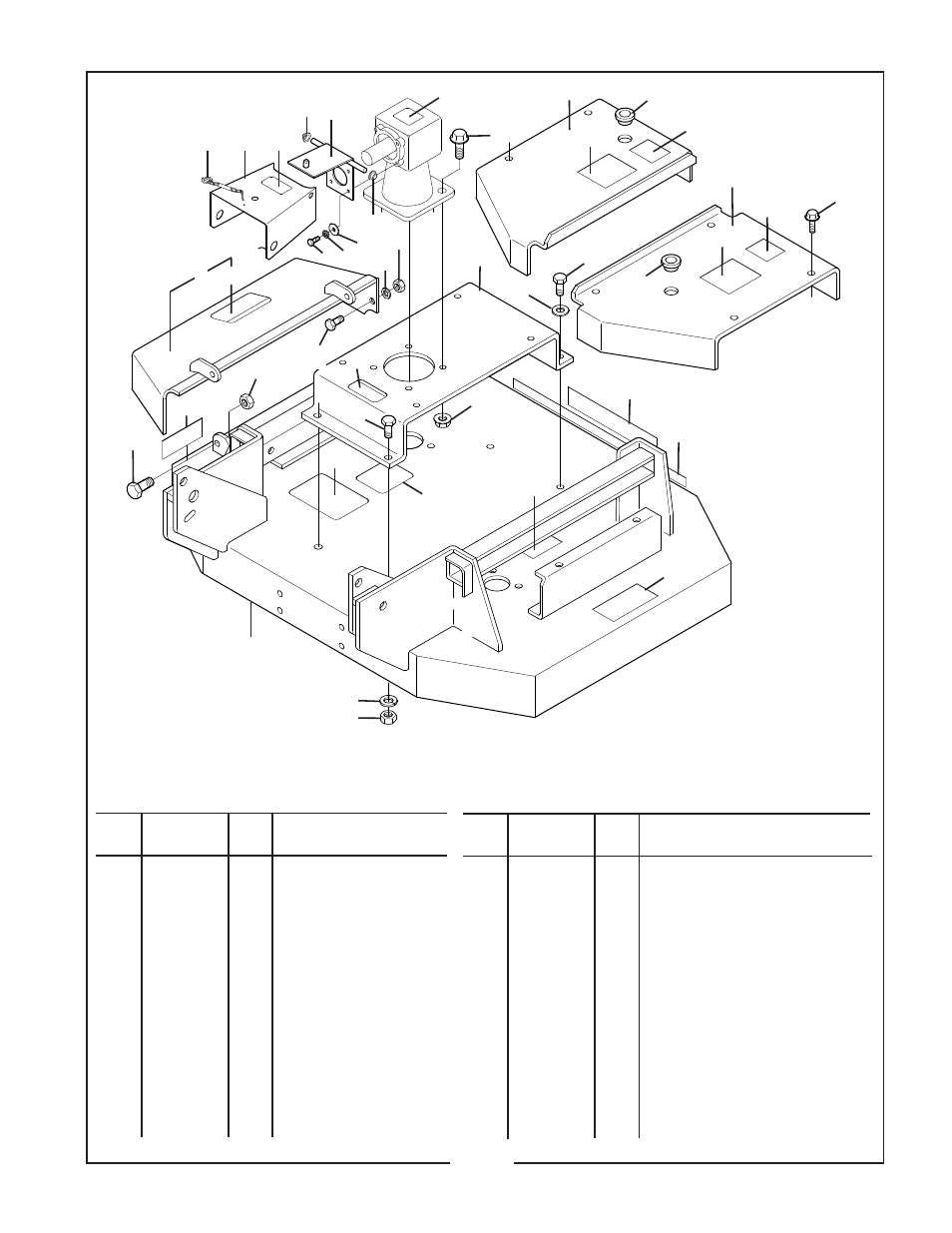

BASE FRAME AND SHIELDING
FTH 480
45-1-1
REF. PART QTY. DESCRIPTION
NO. NO.
19 ––––– 4 Capscrew 5/8” xs 1 3/4” Gr. 5
20 ––––– 2 Flatwasher 1/2”
21 ––––– 4 Capscrew 1/2” x 1 1/2” Gr.5
22 ––––– 4 Lockwasher 1/2”
23 ––––– 4 Hex Nut 1/2”
24 09131200 4 Locknut 3/8”
25 ––––– 3 Capscrew 3/8” x 1 “ Gr.5
26 86873 8 Capscrew, Flange Lock 3/8” x 3/4” Gr.5
27 94306 1 Input Shield
28 44216 4 Flatwasher m8
29 44311 4 Lockwasher m8
30 44215 4 Capscrew m8
31 ––––– 1 Lockwasher 3/8”
32 ––––– 1 Hex Nut 3/8”
33 50057096 1 Decal, Gearbox Warranty
34 94305 1 Shield Mount
35 50014067 2 Cap, Friction
36 6050096 1 Pin & Chain Assembly
9 5
8
APRIL, 2008
