Burley 09 Encore - Manual (Page 2)

B U R L E Y D E S I G N
Copyright © 2008 by Burley Design LLC. “Burley” is a registered trademark of Burley Design LLC : Rev 06/08 : 170056 Euro d’lite, Encore and Solo Installation Instructions r1
4020 Stewart Rd. Eugene, OR 97402 : PH 541.687.1644 800.423.8445 FAX 541.687.0436 : burley @ burley.com : www.burley.com
Light Installation
Note: Clear light is mounted facing
forward, on side closest to traffic.
Red light is mounted facing rear, on
the side closest to traffic.
Note: Make sure on/off light switches
are accessible.
1. Remove clips and screws from back of
lights.
2. Using screws, fasten brackets and
lights together.
3. Mount clear light/bracket diagonally on
front of roll bar and red light/bracket on
rear of roll bar, both on side closest to
traffic. PHOTO 1
Locking Quick Release/
Wheel Installation
and Operation
1. With quick release lever in “open”
position, insert wheel axle completely
into trailer axle receiver.
2. Close quick release lever, with lever
aimed towards rear of trailer. PHOTO 2
3. Verify that tires are inflated to pressure
marked on the tire side wall.
4. To remove wheel from trailer axle, push
locking button on side of quick release
lever and open lever.
Note: The locking quick release lever
securely attaches the wheel to the
trailer. If you have difficulty removing
the wheel, release pressure on the
quick release by pushing the end
of lever in toward the trailer before
pushing the locking button.
MAKe Sure WHeeLS Are HeLD SeCureLY,
WiTH WHeeL SHAFT FuLLY iNSerTeD iNTO
AXLe reCeiVer. YOu SHOuLD NOT Be ABLe
TO rOCK Or SHiFT WHeeLS. iMPrOPerLY
iNSTALLeD WHeeLS CAN FALL OFF, CAuSiNg
AN ACCiDeNT Or SeriOuS iNJurY.
WArNiNg
B U R L E Y D E S I G N
Copyright © 2008 by Burley Design LLC. “Burley” is a registered trademark of Burley Design LLC : Rev 06/08 : 170056 Euro d’lite, Encore and Solo Installation Instructions r1
4020 Stewart Rd. Eugene, OR 97402 : PH 541.687.1644 800.423.8445 FAX 541.687.0436 : burley @ burley.com : www.burley.com
Light Installation
Note: Clear light is mounted facing
forward, on side closest to traffic.
Red light is mounted facing rear, on
the side closest to traffic.
Note: Make sure on/off light switches
are accessible.
1. Remove clips and screws from back of
lights.
2. Using screws, fasten brackets and
lights together.
3. Mount clear light/bracket diagonally on
front of roll bar and red light/bracket on
rear of roll bar, both on side closest to
traffic. PHOTO 1
Locking Quick Release/
Wheel Installation
and Operation
1. With quick release lever in “open”
position, insert wheel axle completely
into trailer axle receiver.
2. Close quick release lever, with lever
aimed towards rear of trailer. PHOTO 2
3. Verify that tires are inflated to pressure
marked on the tire side wall.
4. To remove wheel from trailer axle, push
locking button on side of quick release
lever and open lever.
Note: The locking quick release lever
securely attaches the wheel to the
trailer. If you have difficulty removing
the wheel, release pressure on the
quick release by pushing the end
of lever in toward the trailer before
pushing the locking button.
MAKe Sure WHeeLS Are HeLD SeCureLY,
WiTH WHeeL SHAFT FuLLY iNSerTeD iNTO
AXLe reCeiVer. YOu SHOuLD NOT Be ABLe
TO rOCK Or SHiFT WHeeLS. iMPrOPerLY
iNSTALLeD WHeeLS CAN FALL OFF, CAuSiNg
AN ACCiDeNT Or SeriOuS iNJurY.
WArNiNg

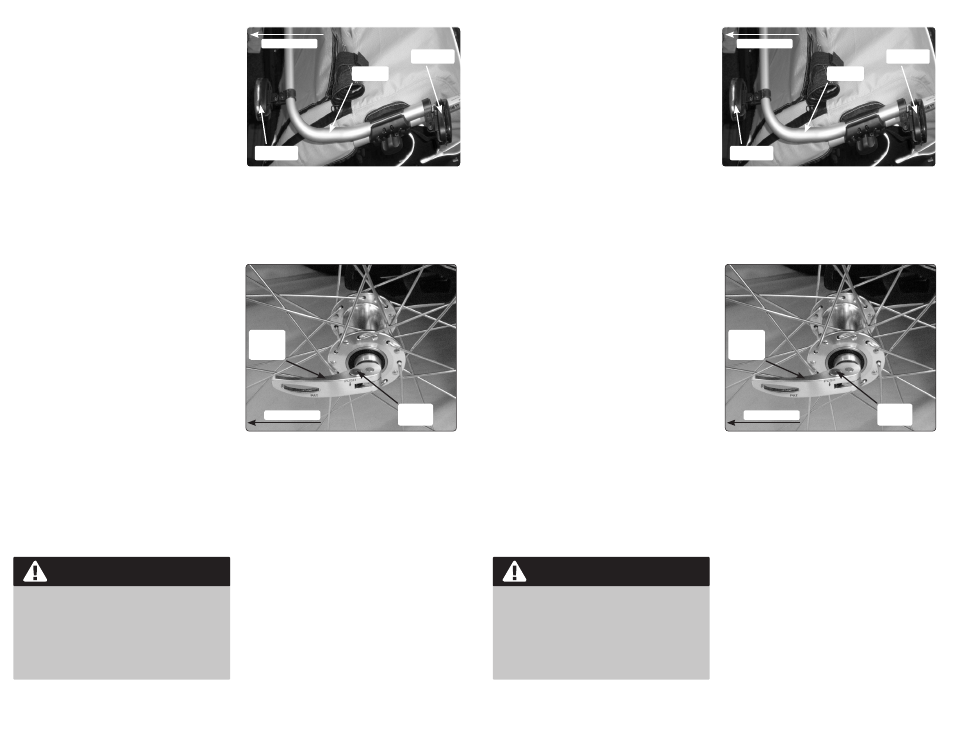

PHOTO 2: Wheel Installation
Quick
release
Lever
Locking
Button
rear of Trailer
PHOTO 2: Wheel Installation
Quick
release
Lever
Locking
Button
PHOTO 1: Light Installation
rear of Trailer
roll Bar
red Light
Clear Light
Front of Trailer
PHOTO 1: Light Installation
roll Bar
red Light
Clear Light
Front of Trailer
