Instruction 24-9422 9
IrDA Printer
3. Using a cotton swab dampened with alcohol, wipe the heating dots of
the print head. Be careful not to touch the heating dots with your
fingers.
4. Allow the alcohol to dry.
5. Reload the paper and close the paper cover.
Installing the Paper
Replace the paper when it runs out as indicated by the front panel green
Power LED flashing.
1. Open the paper cover as previously described.
2. Remove the spent paper core.
3. Drop in a new paper roll so that it will rotate in the direction shown
in Figure 2.
4. Insert edge of paper roll into slot in cover next to cutter; then close
cover. Remove any slack by pulling out about ½ inch of paper from
the printer.
Note: If there was unprinted data in memory when the
paper ran out, and the printer was not shut OFF, then the
printer will automatically go on-line and print the remaining
data 5 seconds after closing the paper cover.
Maintenance

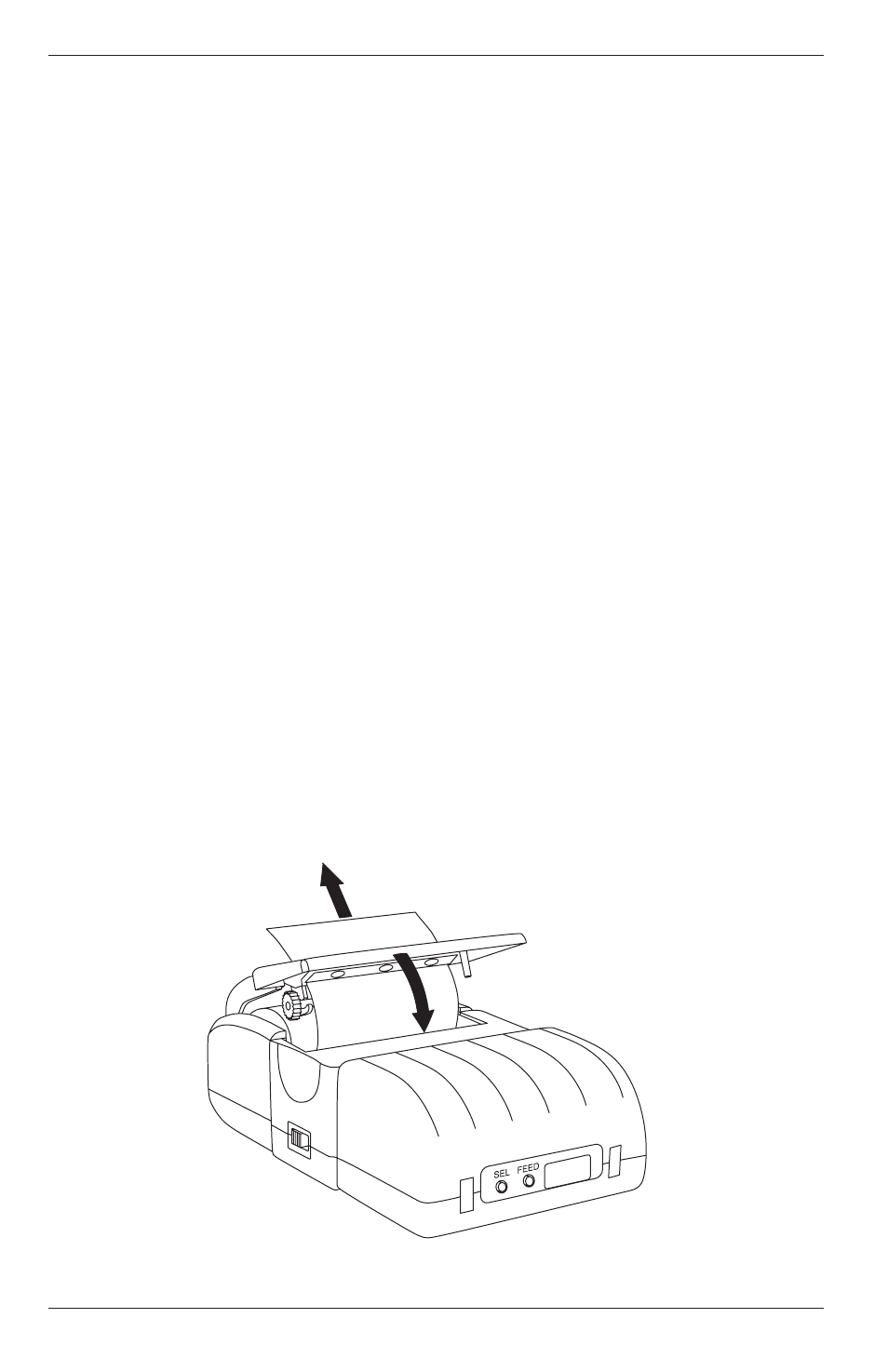

Figure 2. Installing the Paper
