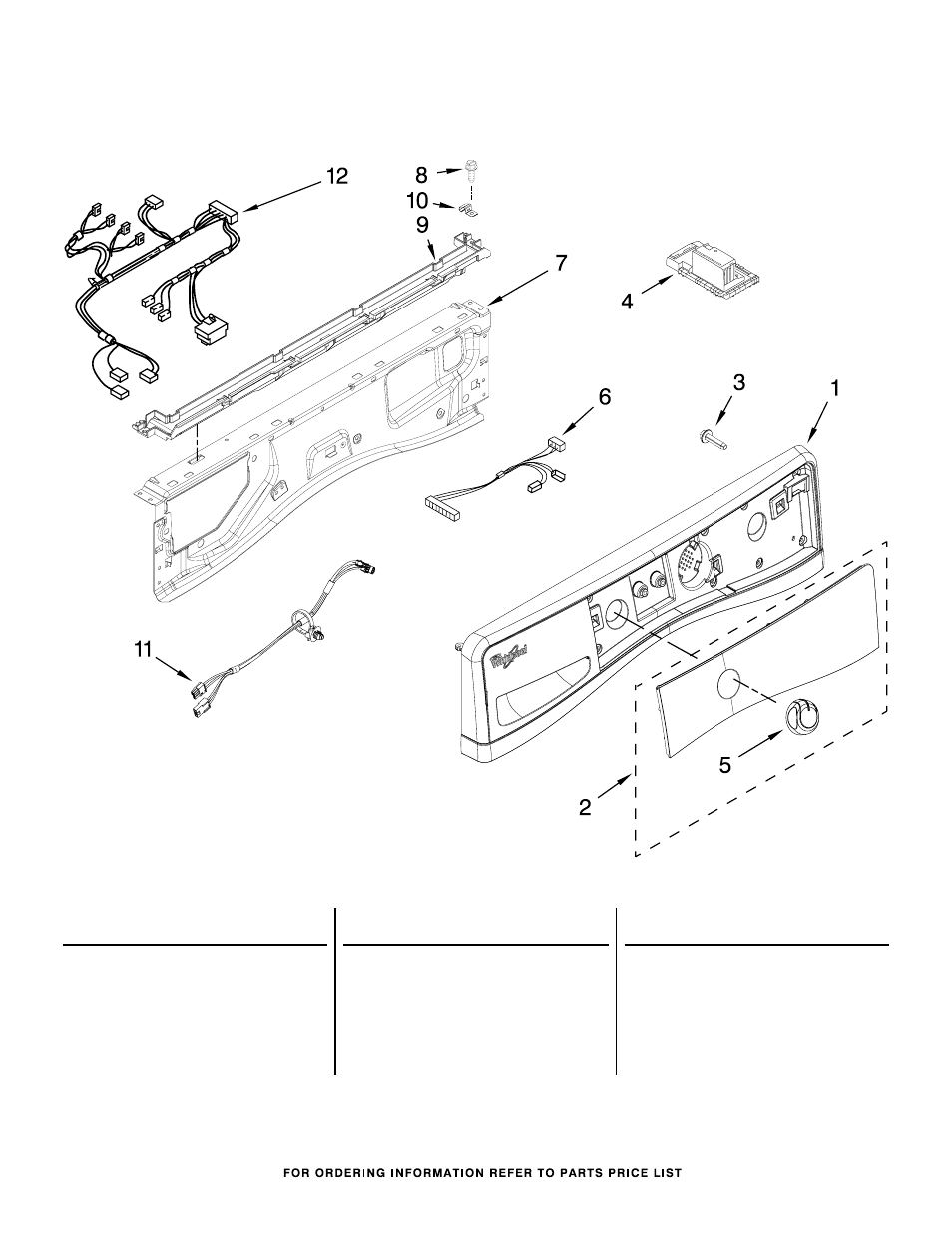

CONTROL PANEL PARTS
4
For Models: WFW94HEAW0, WFW94HEAC0
(White) (Chrome Shadow)
W10515343
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
Console Asssembly
W10446408 White
W10463516 Chrome Shadow
2
IML Assembly
(Includes Item 3)
W10391530 White
W10463520 Chrome Shadow
3 W10219342 Screw
4 W10422889 Control Unit,
Central
5 W10391535 Knob Assembly
6 W10486221 Harness, UI Jumper
7 W10208197 Bracket, Console
8 W10142290 Screw
9 W10317570 Channel, Water
(Includes Item 10)
10 W10317566 Clip, Spring
11 W10485684 Harness, LED UI
12 W10422437 Harness, Wiring
(Upper Main)
