Whirlpool WGT3300XQ - Manual

1

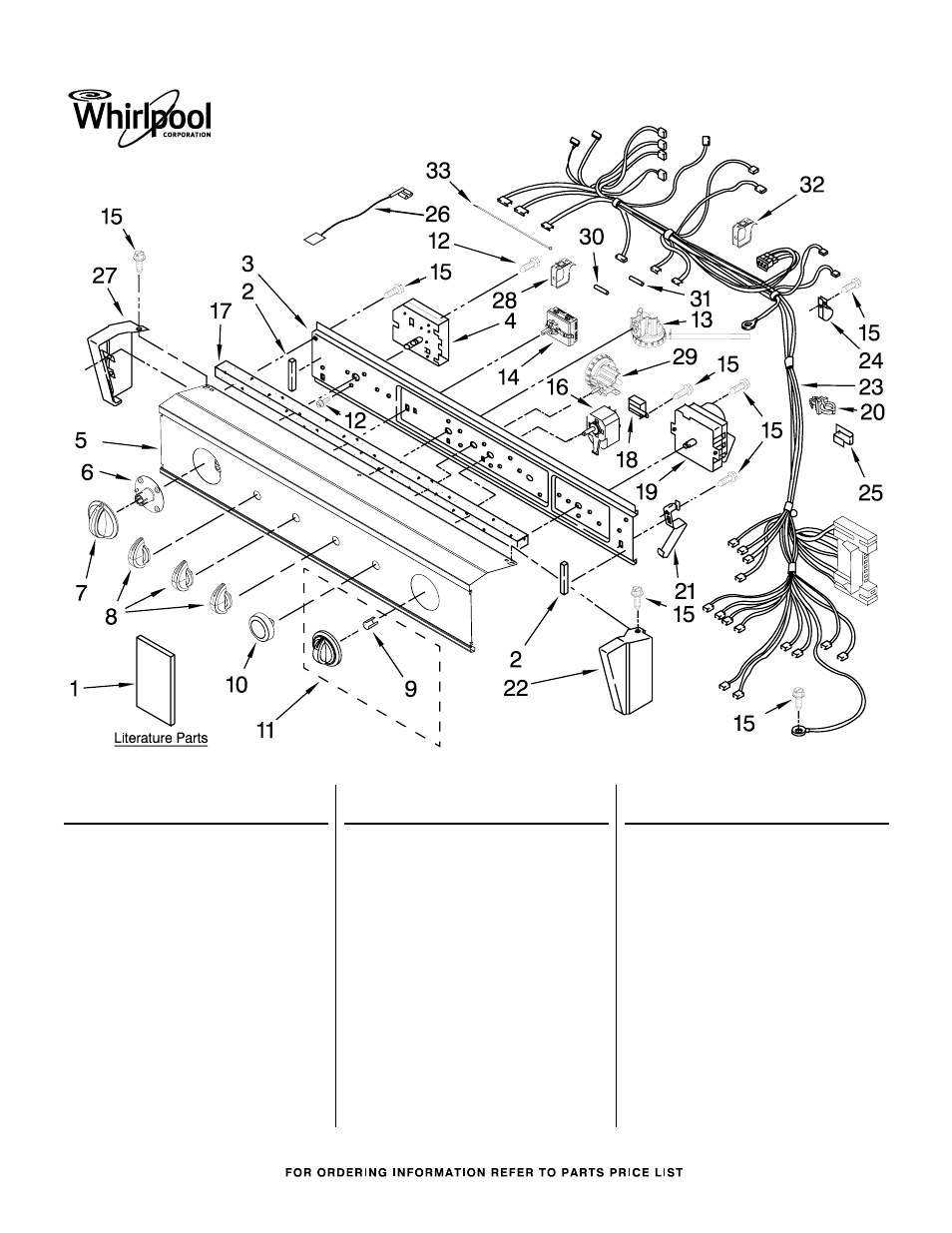

WASHER/DRYER CONTROL PANEL PARTS
For Model: WGT3300XQ0
(Designer White)
WASHER/DRYER
LAUNDRY SYSTEM
7−12 Litho in U.S.A. (LT) (psw) Part No. W10387243 Rev. B
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10356101 Installation
Instructions
W10343071 Use & Care Guide
W10362946 Wiring Diagram
W10389458 Energy Guide
2 3390688 Spacer−
Foam Pad (2)
3 8528583 Bracket, Control
(Includes Illus. 2)
4 W10113804 Timer, Washer
5 W10339549 Panel, Control
6
8566018 Dial, (Washer)
7 8566022 Knob, Timer
(Washer)
8 8565944 Knob, Control (2)
9 8536939 Spring−Clip Knob
10 8566073 Knob,
Push−To−Start
11 8566061 Knob, Timer
(Dryer)
12 3400808 Screw,
10−32 x 5/16
13 W10415756 Switch, Pressure
Assembly (3−Level)
14 W10114118 Switch,
Temperature
15 90767 Screw, 8−18 x 3/8
16 3404233 Switch,
Push−To−Start
17 8521965 Gasket−Console
18 694419 Buzzer, Mini
19 W10113761 Timer, Dryer
20 2219077 Clip, Harness
21 3389453 Bracket, Hinge (2)
22 3389456 End Cap (RH)
23 W10139463 Harness − Dryer
24
3390604 Clamp, Harness
25 3390422 Clip, Harness (2)
26 W10121648 Jumper Wire
(Buzzer−Timer)
27 3389464 End Cap (LH)
28 W10210799 Clip, Harness
29 W10400880 Switch, Pressure
Assembly (2−Level)
30 W10400873 Hose−Pressure
(3−Level)
31 W10368080 Hose, Pressure
Switch (2−Level)
32 W10134186 Clip, Harness
33 W10334336 Cable Tie
