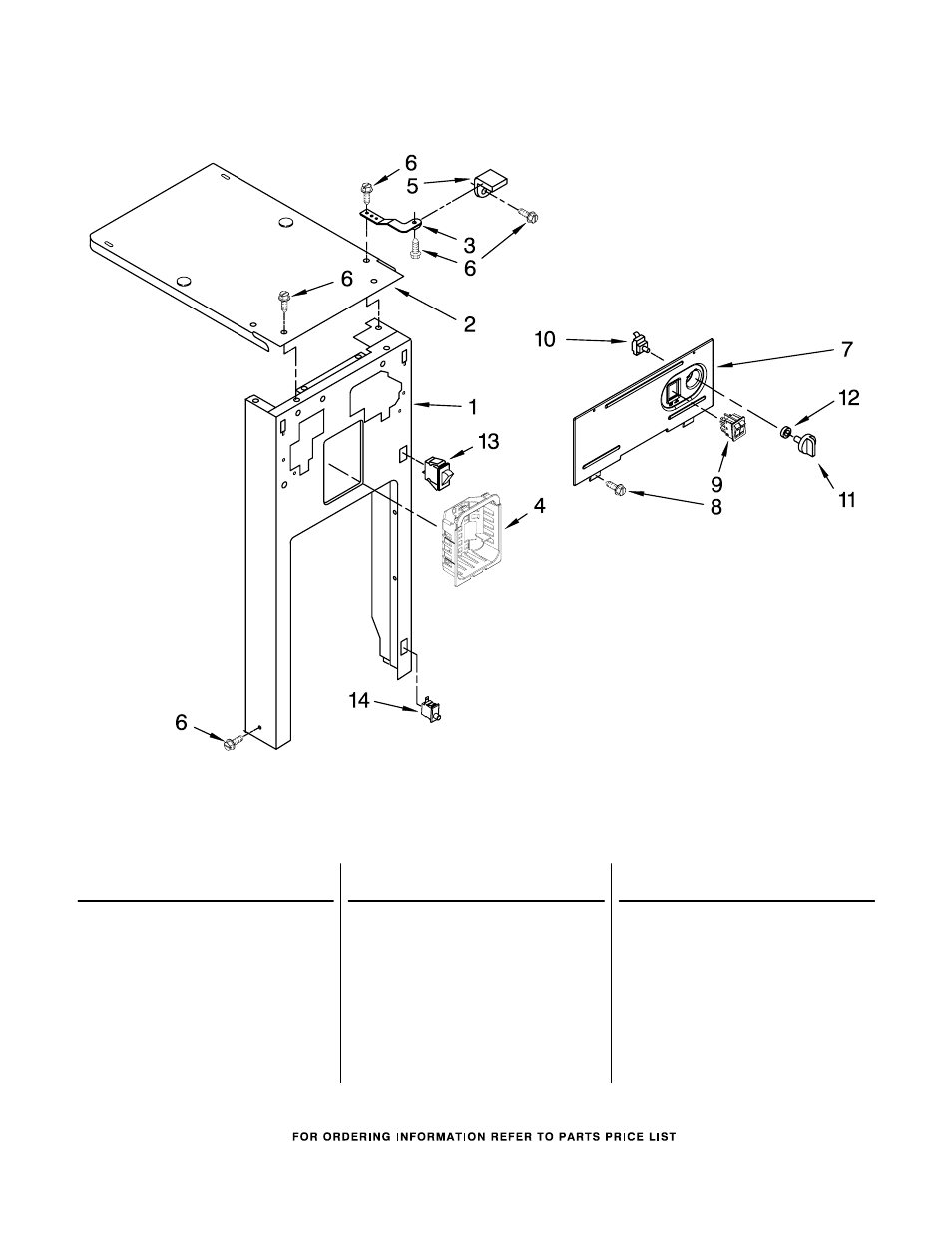

PANEL AND CONTROL PARTS
5
For Models: TU950QPXB0, TU950QPXQ0, TU965QPXS0
(Black) (White) (Stainless)
W10374114
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
Panel, Front
Frame
W10242567 Black
2
608572 Cover, Top
3
9871993 Bracket, Retainer
4
9871066 Compartment,
Air Freshener
5
780239 Bracket, Retainer
(Alternate)
6 W10001260 Screw
7
Escutcheon,
Control
W10318831 Black
8
246131 Screw
9
Switch Assembly
Black
10
9871971 Switch, Rotary
Start−Run
11
9871920 Knob, Rotary
Switch
12
777383 Nut, Rotary
Switch
13
9871829 Switch,
Drawer
14 W10242556 Switch, Pushbutton
