A‐6 Series GLC
MN2408
E-Stop
E-Stop Switch Kit - Mounts to Baldor supplied Enclosure to provide easy access to shut down
engine with the press of a button. Connects to Remote Run Terminals on genset. Must be
adapted for remote mounting when used with open skid mount units.

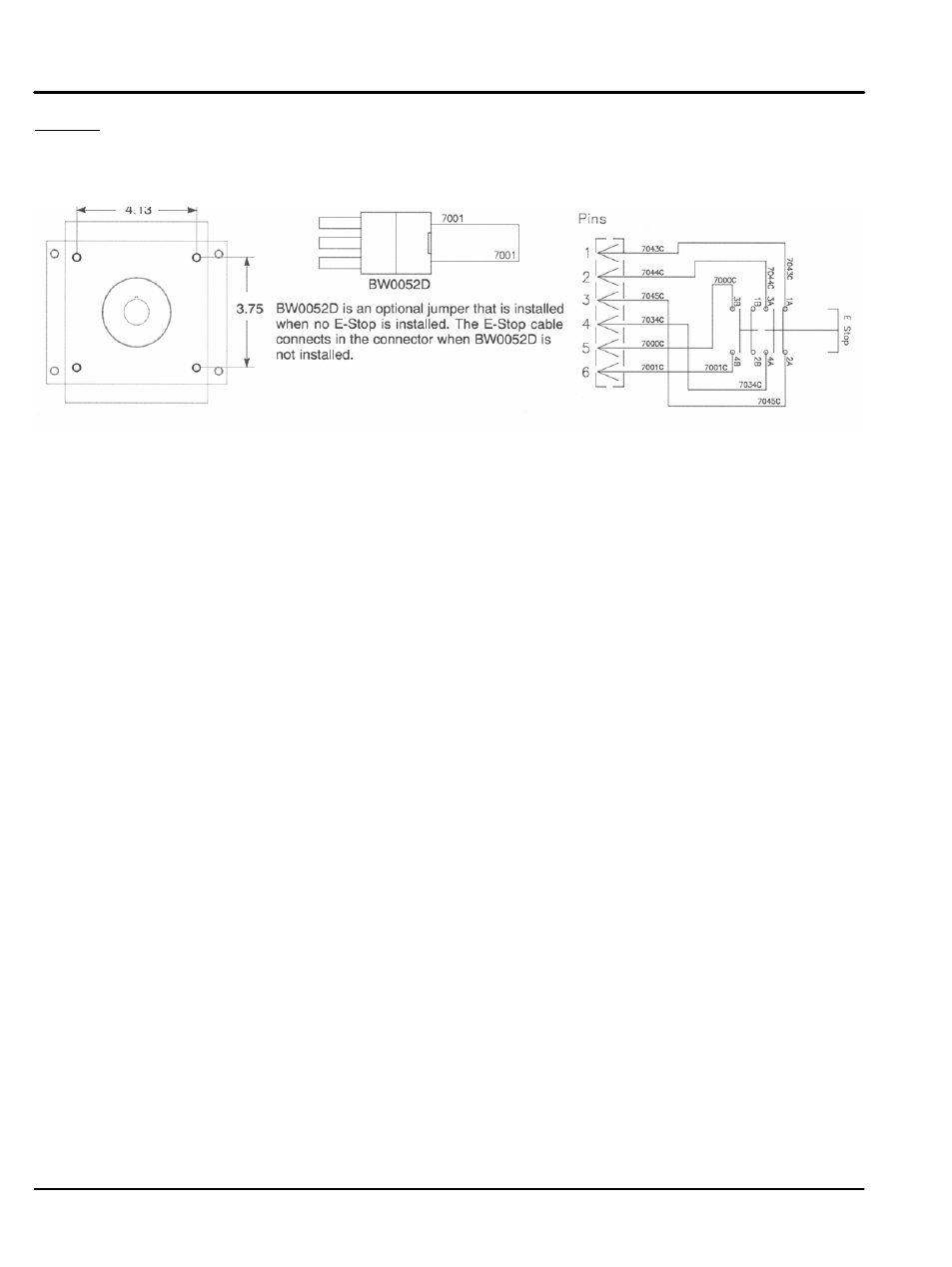

Figure A‐6
1
3
Installation:
1.
Locate and drill 4 holes shown in Figure A‐6.
2.
Mount the E-Stop Switch box to the enclosure,
3.
Install the E-Stop assembly into the E-Stop Switch box enclosure.
4.
Connect the E-Stop Switch cable into the connections for BW0052D.
