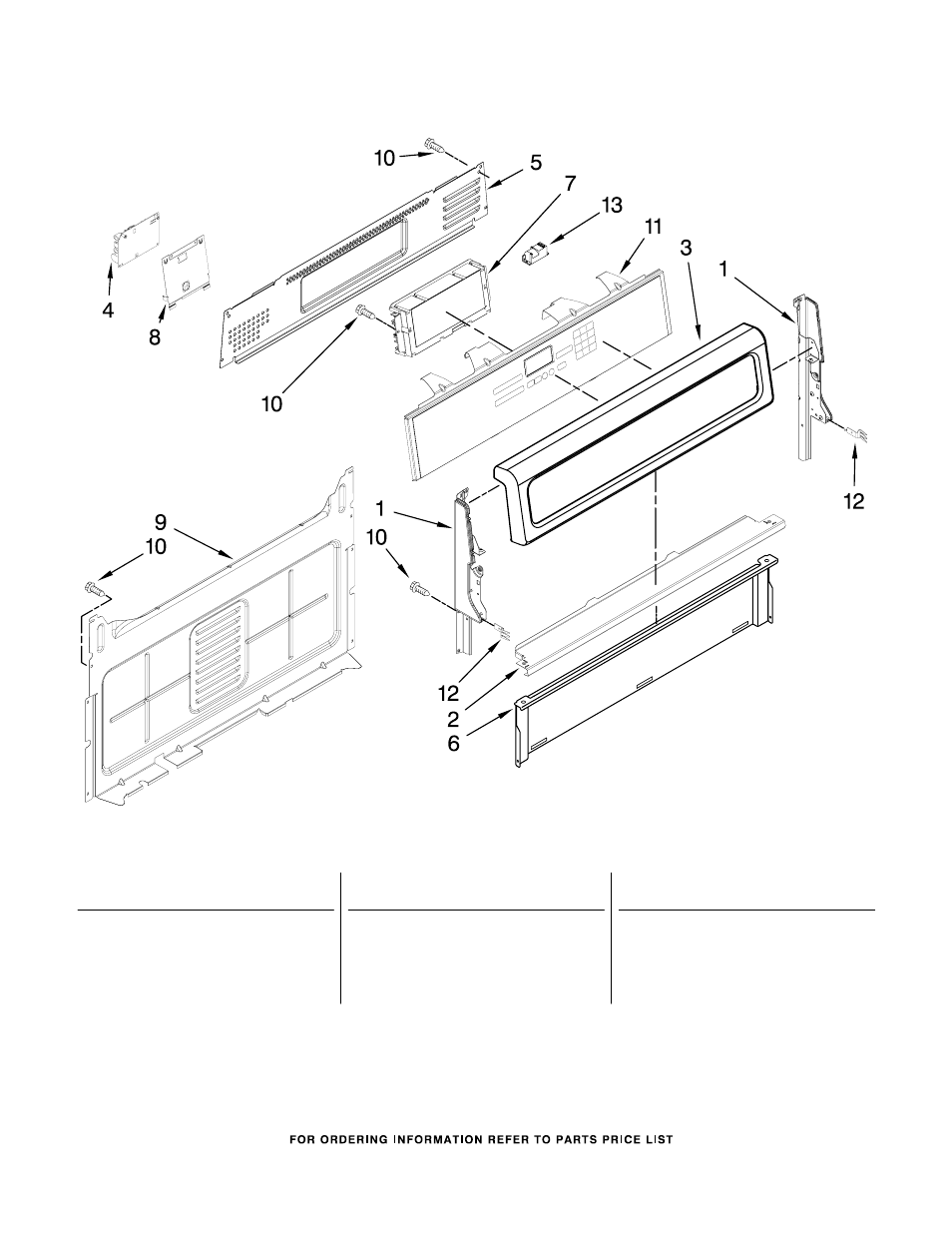

CONTROL PANEL PARTS
2
For Models: WFG720H0AS0
(Stainless)
W10498254
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 W10184437 Endcap, Left Hand
W10184438 Endcap, Right Hand
2 W10211996 Bracket, Console
3 W10318550 Console
4 W10331686 Module, Spark
5 W10198745 Cover, Upper
6 W10192841 Shield, Heat
7 W10340317 Control, MRC
8 W10333917 Bracket, DSI
9 W10184251 Cover, Main Wire
10
3196178 Screw
11 W10318563 Assembly, Overlay
12
8523412 Bracket, Rear
13
8522425 Module, Spark
