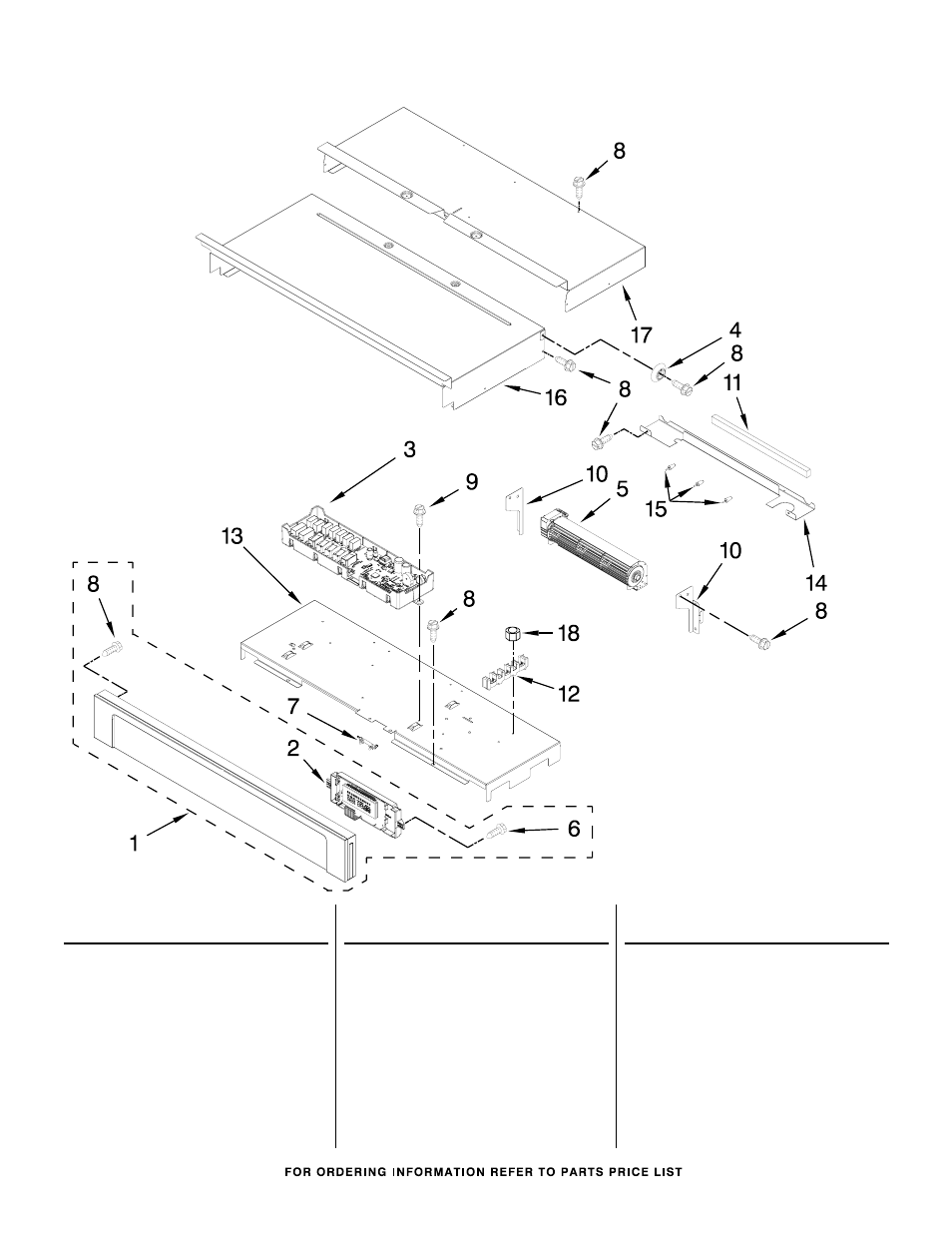

CONTROL PANEL PARTS
8
For Models:WOD51EC7AB00, WOD51EC7AW00, WOD51EC7AT00, WOD51EC7AS00
(Black) (White) (Biscuit) (Stainless)
W10487247
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 Assembly,
Control Panel
(Includes Overlay)
W10363093 Black
W10363094 White
W10363095 Biscuit
W10363092 Stainless
2 W10286216 Board,
MRC2 Display
3 W10286215 Board,
MRC2 Main
4 W10363824 Spacer, Lateral
5 W10286217 Blower
6
7101P403−60 Screw
7 W10436435 Fuse, Thermal
8
7101P426−60 Screw
9 7101P434−60 Screw
10 Bracket, Blower
W10351257 Left
W10283078 Right
11 4451758 Block, Foam
12 7401P038−60 Block, Terminal
13 W10283005 Tray, Electronic
14 W10318191 Chassis,
Divider Back
(Upper Model Only)
15 W10351295 Bumper
(Lower Model Only)
16 W10318193 Chassis, Cover
Top Front 30"
17 W10318195 Chassis, Cover
Top Back 30"
18 7103P027−60 Nut,
Terminal Block
