3

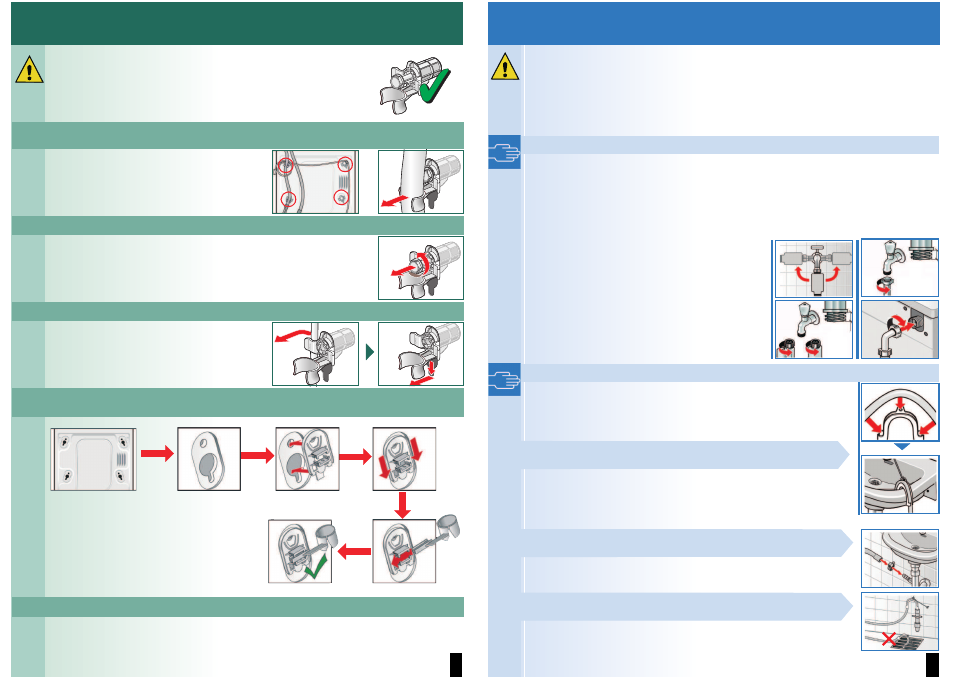

Removing transport bolts
– Before using the appliance for the first time, always remove and retain
all 4 transport bolts.
– If transporting the appliance subsequently, always re-install the
transport bolts – this prevents damage to the machine. aPageâ6
– Retain the screw and sleeve.
1. Take the hoses out of the holder and the elbow.
2. Undo and remove all 4 transport bolts.
3. Take the power cord out of the holders. Remove the sleeves.
4. Insert the covers and lock them in place by pressing on the locking hook. Insert the hose
holders.
5. Fix the hoses in the hose holders.
4
Water connection
– Risk of electric shock! Do not immerse the Aqua-Stop safety device in water
(containsâanâelectric valve).
– To prevent leakage or water damage, follow the instructions in this chapter.
– Attention: operate the washer dryer with cold drinking water only.
Do not connect to the mixer tap of a pressureless hot-water heater.
– Do not use a used inlet hose. Only use the inlet hose supplied or one which
was purchased from an authorised specialist dealer.
– If in doubt, have the appliance connected by a technician.
Water supply
Water inlet hose:
Attention: do not kink, crush, modify or cut through (strength is no longer guaranteed).
Optimum water pressure in the mains: 100–1000 kPa (1–10 bar)
– When the tap is turned on, the water flow is at least 8 l/min.
– If the water pressure is higher, install a pressure reducing valve.
Model: Aqua-Stop
Aqua-Secure
Standard
1. Connect the water supply hose to the tap.
Tighten plastic screw fittings by hand only.
2. Carefully turn on the tap and check that the
connection points are not leaking.
Attention: the screw connection is under
water mains pressure.
Water drainage
Water drainage hose:
Attention: do not kink or stretch.
Height difference between installation area and outlet: 60–100 cm
Drainage into a sink/bath tub:
Attention: secure the drainage hose to prevent it from slipping out
ofâtheâsink.
Attention: the plug must not be in the plug hole. When the water is being
pumped out of the washer dryer, check that the water drains away quickly
enough. Do not immerse the end of the drainage hose in the water that has
been pumped out. There is a risk that water will be drawn back into the
washer dryer.
Drainage into a siphon:
Attention: secure the connection with a 24–40 mm dia. hose clip (available
from a specialist retailer).
Drainage into a plastic pipe with rubber sleeve:
Attention: Secure the drainage hose to prevent it from slipping out
ofâtheâdrain.
3/4 ’’
min. 10 mm
max.
90° max.
90°
3/4 ’’
min 10 mm
