Positioning your projector 20

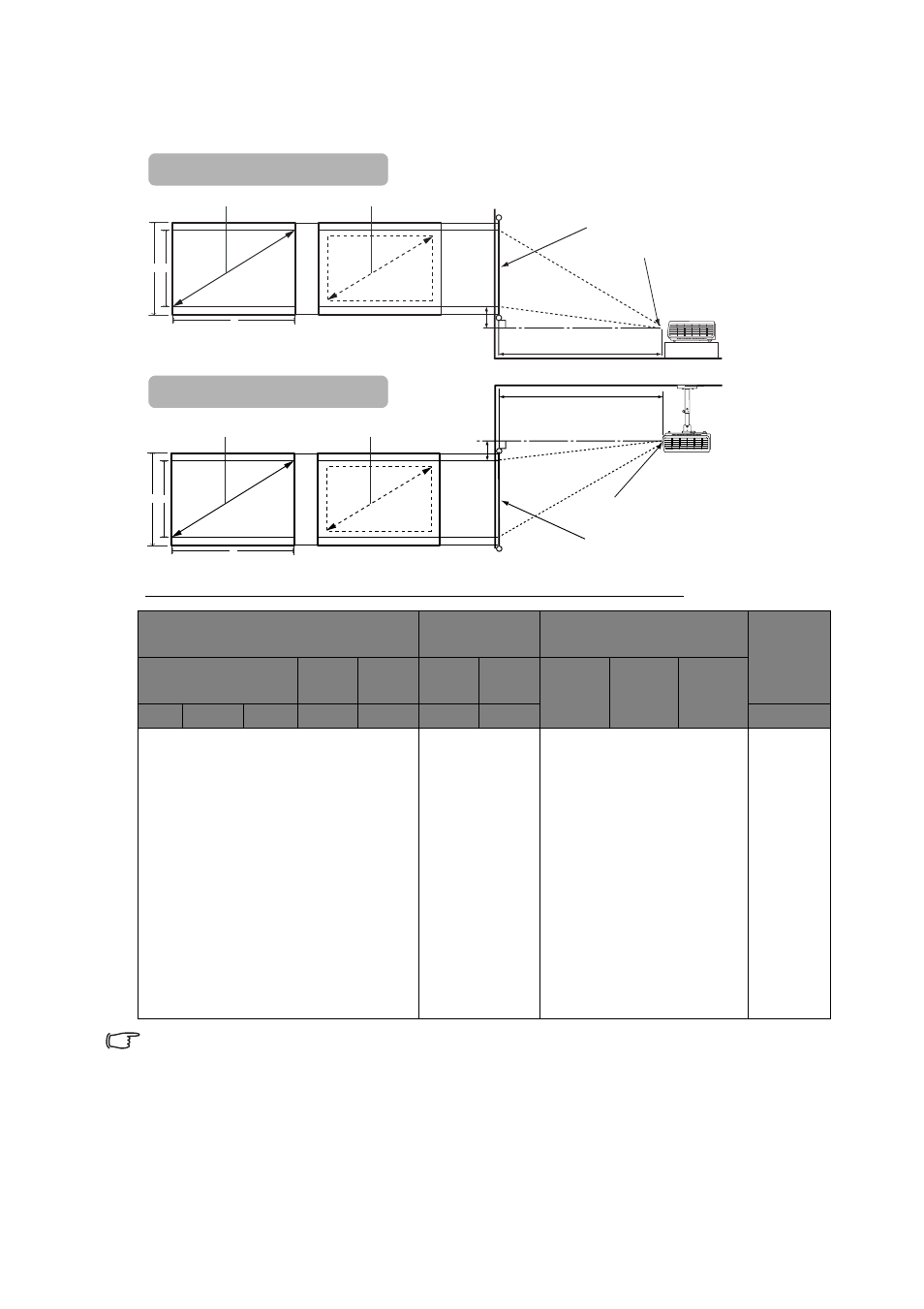

When the screen aspect ratio is 4:3 and the projected picture is 16:10
Table B2: The screen aspect ratio is 4:3 and the projected picture is 16:10
There is 3% tolerance among these numbers in Table A1, Table A2, Table B1, and Table B2 due
to optical component variations.
BenQ recommends that if you intend to permanently install the projector, you should
physically test the projection size and distance using the actual projector in situ before you
permanently install it, so as to make allowance for this projector's optical characteristics. This
will help you determine the exact mounting position so that it best suits your installation
location.
Screen Dimensions Projected
picture size
Distance from Screen in mm Vertical
Offset (E)
Diagonal Height
C
Width
B
Height
A
Width
B
Min
(Max
zoom)
Average Max
(Min
zoom) Feet Inches mm mm mm mm mm mm
2.5 30 762 457 610 381 610 968 1045 1122 15
4.2 50 1270 762 1016 635 1016 1613 1742 1871 25
6.7 80 2032 1219 1626 1016 1626 2580 2787 2993 41
8.3 100 2540 1524 2032 1270 2032 3225 3483 3741 51
10.0 120 3048 1829 2438 1524 2438 3870 4180 4490 61
12.5 150 3810 2286 3048 1905 3048 4838 5225 5612 76
15.0 180 4572 2743 3658 2286 3658 5806 6270 6734 91
16.7 200 5080 3048 4064 2540 4064 6451 6967 7483 102
18.3 220 5588 3353 4470 2794 4470 7096 7663 8231 112
20.0 240 6096 3658 4877 3048 4877 7741 8360 8979 122
22.5 270 6858 4115 5486 3429 5486 8708 9405 10102 137
25.0 300 7620 4572 6096 3810 6096 9676 10450 11224 152
A
B E
C
Maximum zoom Minimum zoom
Projection distance
Center of lens
Screen
Floor Installation
E
A
B
C
Maximum zoom Minimum zoom
Projection distance
Center of lens
Screen
Ceiling Installation
