over 180mm
wall
552mm(IG-A20E)
898mm(IG-A40E)
E-5

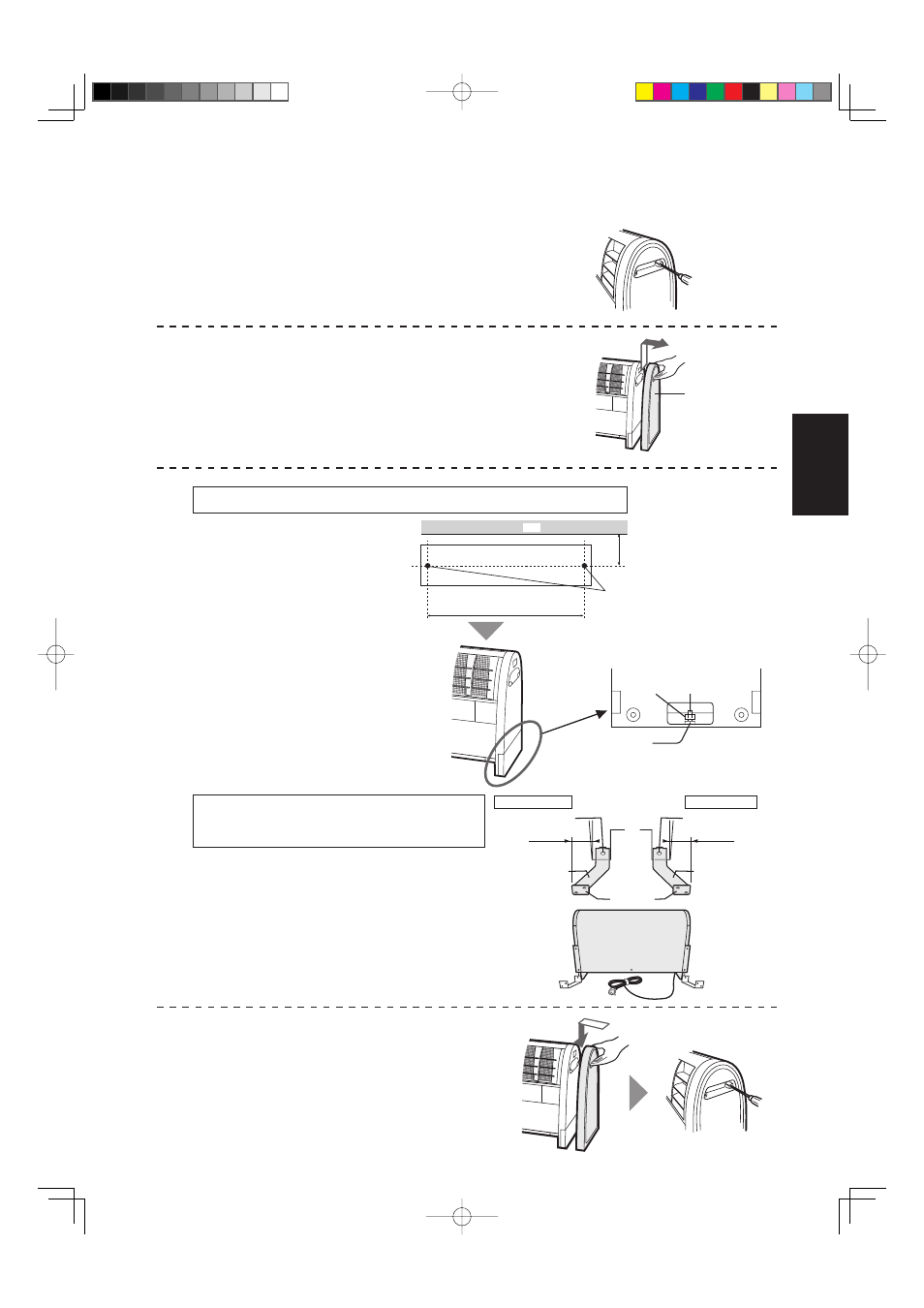

HOW TO INSTALL THE UNIT
Unscrew the painted screws
(2 pcs on each side ).
1
2 Lift up the Side Panel and remove
it outward.
3
In case of fi xing the main unit to the fl oor by anchor bolts.
Measure the position of the anchor
bolts and fi x them to the fl oor.
* The height of the anchor
bolt is 25mm or less.
* S i z e o f a n c h o r b o l t
diameter is 8mm or less.
nut anchor bolt
Put the main unit on the anchor
bolts and tighten surely with washer
and nut.
In case of fixing the main unit to the
wall with the mounting parts.
Fix the mounting parts to the main unit
by screws. (Right and left side)
The mounting parts and screws are
accessory parts. (Each 2 pcs)
Screws are to be surely tightened.
* Depending on the material of the wall, it may
not be able to tighten.
Attach the Side Panel and screw
the painted screws on both sides.
right side of rear
28mm
wall side
28mm
screw screw
left side of rear
mounting part(right) mounting part(left)
Side Panel
4
anchor bolts
washer
