B100999-1-0906

Page 9

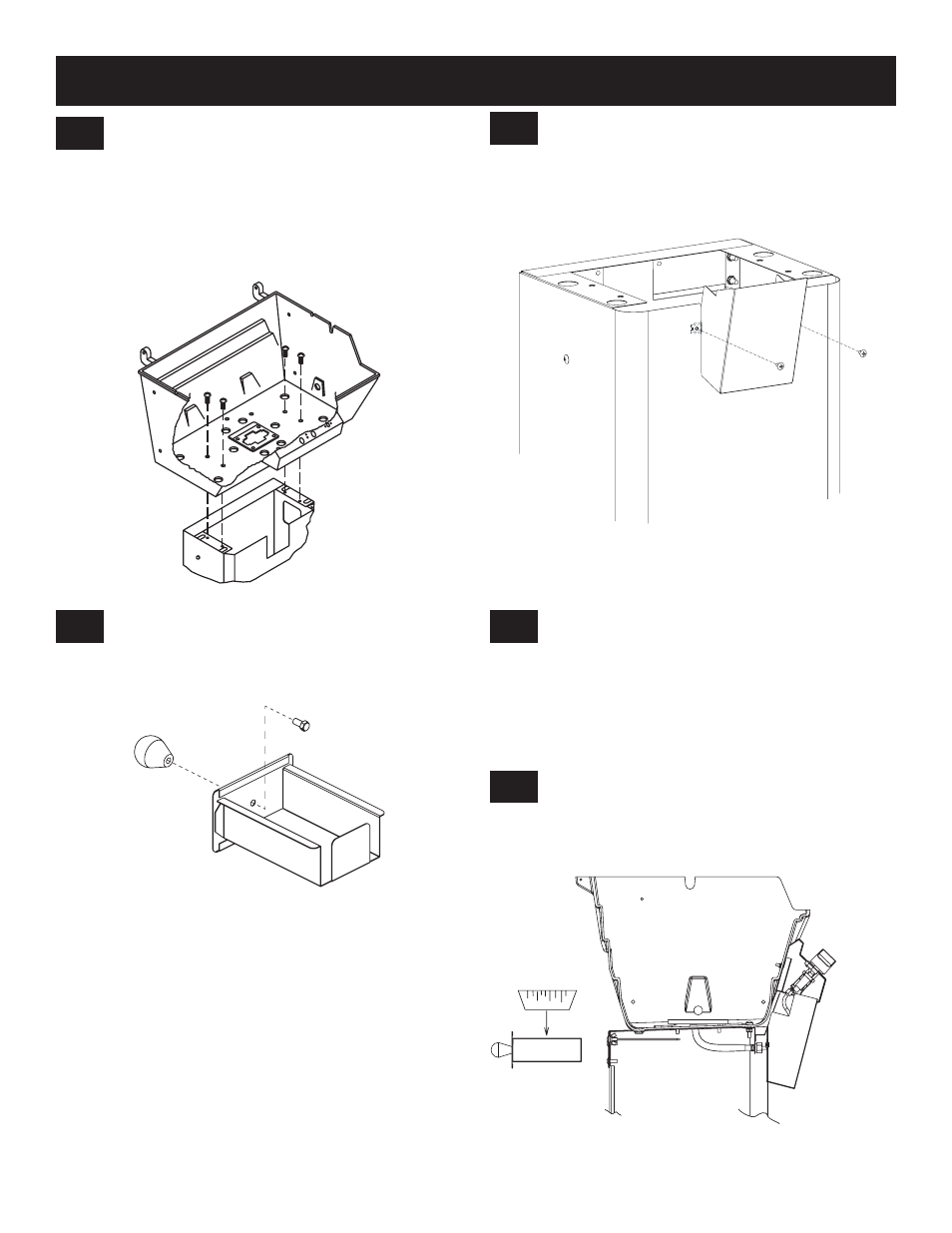

Using four 1/4-20 x 3/4 screws, fasten the grill to the

cart. Figure 4.

Note: To ease assembly you may wish to install the ig-

niter as shown in your Broilmaster

®

grill manual before

attaching the grill to the cart.

C

ART

A

SSEMBLY

F

IGURE

4

Install one 1/4-20 x 1/2 hex head BOS into drip pan

drawer assembly (2) and tighten knob (1). Figure 5.

F

IGURE

5

Slide the mounting tabs on the control (7) housing be-

hind the opening on the cart. Allow the control housing

to rest at bottom of opening on cart. Figure 6.

Align the holes in the front of cart with the nuts on the

control housing (with the mounting tabs positioned

inside cart) and attach with the two 10-24 x 3/8 phillips

head screws. Figure 6.

Place the drip pan in the drip pan drawer and slide onto

drip pan bracket. Figure 7.

F

IGURE

7

F

IGURE

6

5

6

7

8

9
