Broilmaster DC2CART-1 - Manual (Page 10)

Page 10 B100999-1-0906
Attention: Peel protective film from all parts
before assembly.
Caution: Be careful when handling parts, as they
may contain sharp edges. Work gloves are recom-
mended to prevent injury.
In each illustration parts are identified with "Key" num-
bers. Key numbers appear in parenthesis after a part
name is mentioned for the first time in the instructions
and are labeled on the illustrations. You can reference
each part by its key number on the Parts List if you need
help in identifying a part.
F
IXED
B
ASE
I
NSTALLATION
I
NSTRUCTIONS

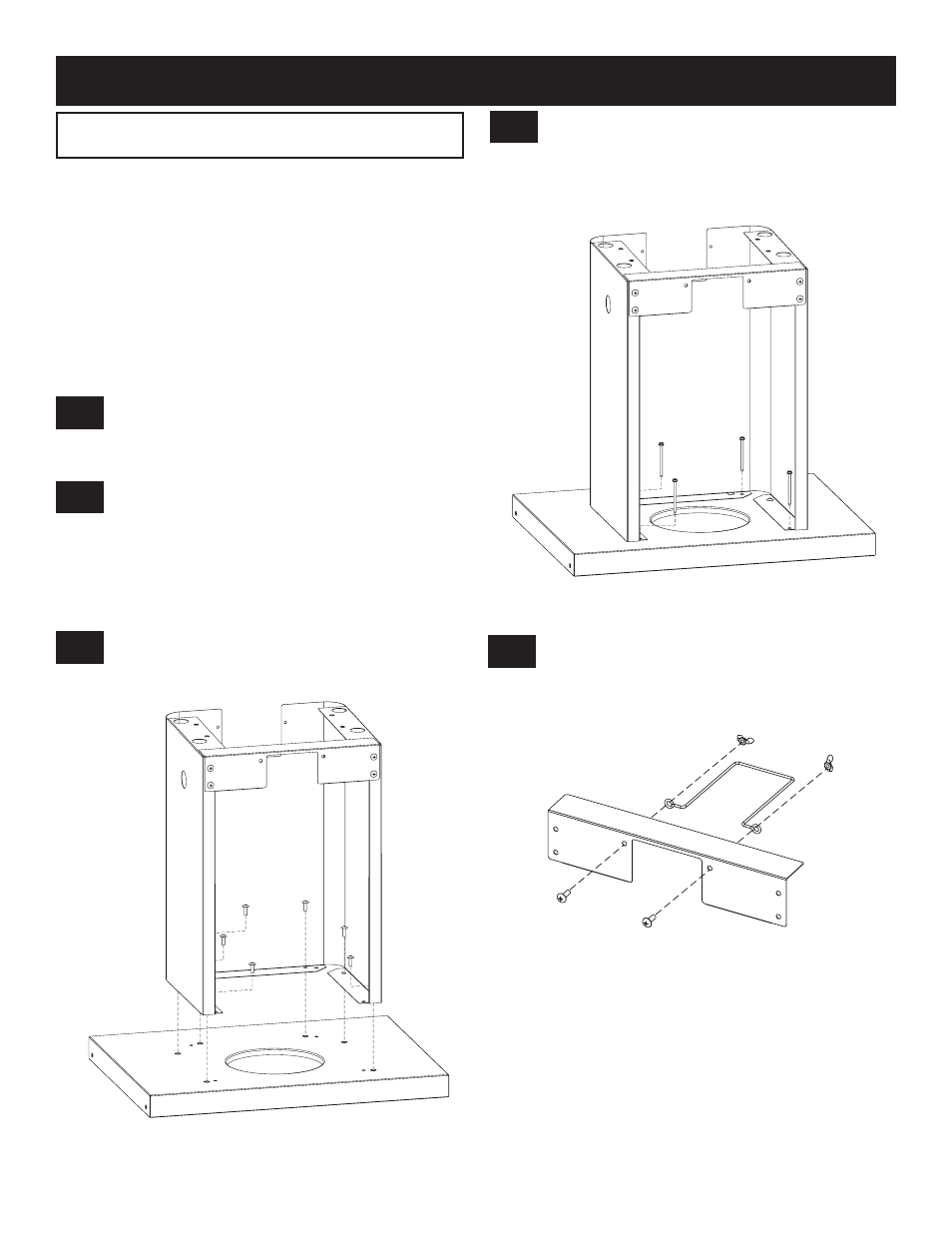

Remove four casters (9, 10) (wheels) from base shelf
assembly (8).
Position base at the installation location.
Attach base body assembly (6) to base shelf assembly
(8) with six 1/4-20x3/4" phillips head screws. Insert
screws into the factory installed threaded inserts on
the base shelf assembly. Tighten screws completely.
Figure 8.
Attach base to surface (deck, concrete, etc.) with four
appropriate bolts (not supplied). Figure 9.
Attach drip pan bracket (5) to the rear brace of the base
body assembly with two 1/4-20 x 3/4 phillips head screws
and two 1/4-20 Wing Nuts. Figure 10.
F
IGURE
10
1
2
3
4
5
F
IGURE
8
(Base body removed for clarity)
F
IGURE
9
