13
EURORACK PRO RX1202FX
4. INSTALLATION
4.1 Mains connection
AC POWER IN
The power supply is delivered through the power supply line
to be found on the backside. The connection complies with the
required security regulations.
Never connect the EURORACK to the power supply
line while the latter is already connected to the
mains! Rather connect the console with the power
supply line before plugging it into the mains.
Please note that the mixer warms up when in
operation. This is absolutely normal.
4.2 Audio connections
You will need a large number of cables for different
applications. The illustrations below show how the connectors
should be wired. Be sure to use only high-grade cables.
Please use commercial RCA cables to connect the CD/tape
inputs and outputs.
You can, of course, also connect unbalanced equipment to
the balanced inputs/outputs. To do this, use either mono plugs or
stereo plugs with the ring and sleeve bridged (pins 1 and 3 in the
case of XLR connectors).
Caution! Never use unbalanced XLR connectors
(PIN 1 and 3 connected) on the MIC input connectors
when using the phantom power supply.

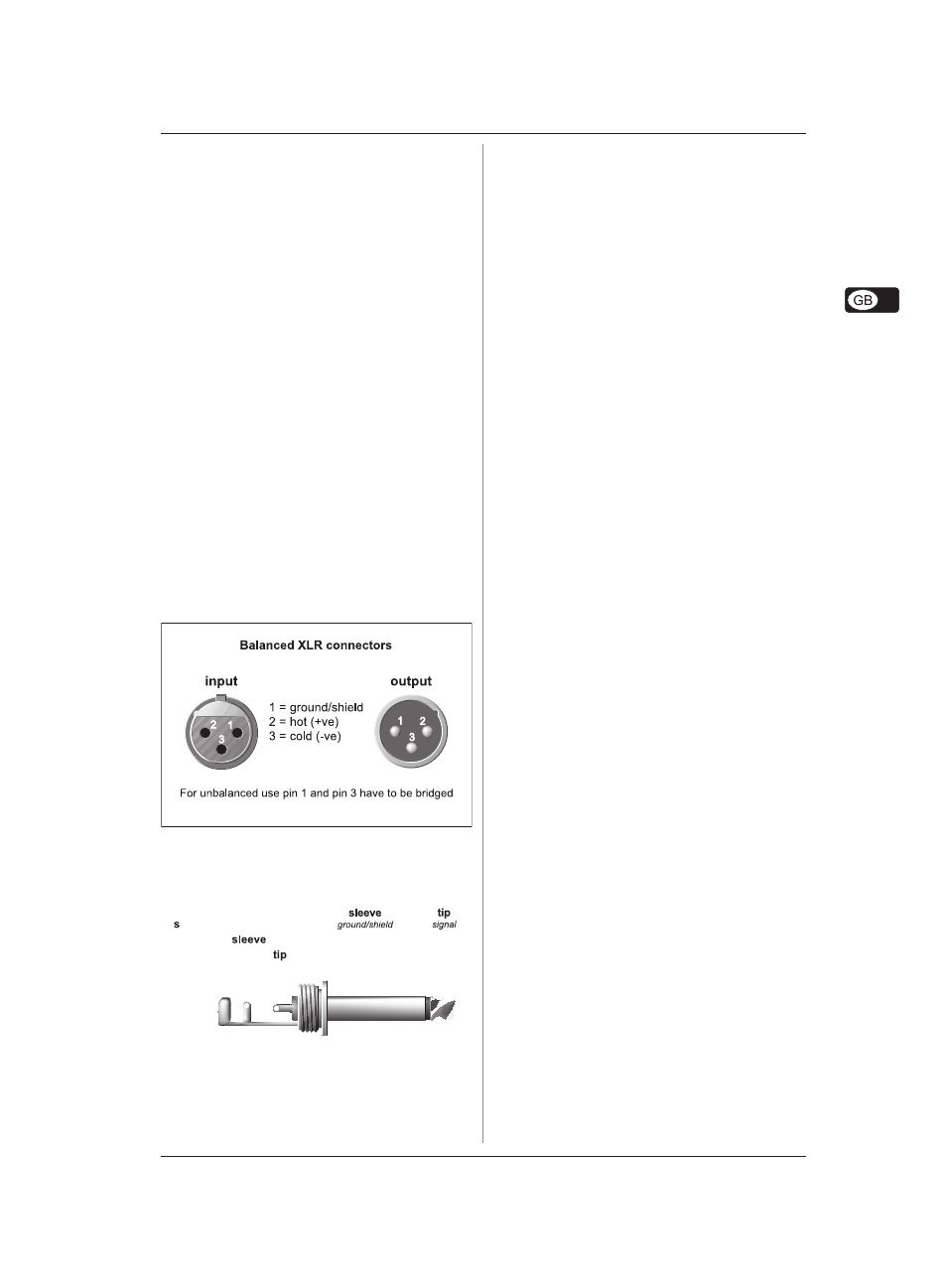

Fig. 4.1: XLR connections
