Rubber Bumper Pad Adjustment
The plastic bed of the Utility Vehicle is equipped with two rubber
bumper pads located at the bottom front of the bed. These rubber
bumpers are factory adjusted to prevent rattling when the bed is in the
down position. If adjustment should be needed at a later time proceed
as follows:
Manual Lift - Screw pads down enough so that slight down pressure
on the front of the bed is needed to unlatch the lift handle.
Electric Lift - Lower bed, then screw pads down for a snug fit to pre-
vent rattling.

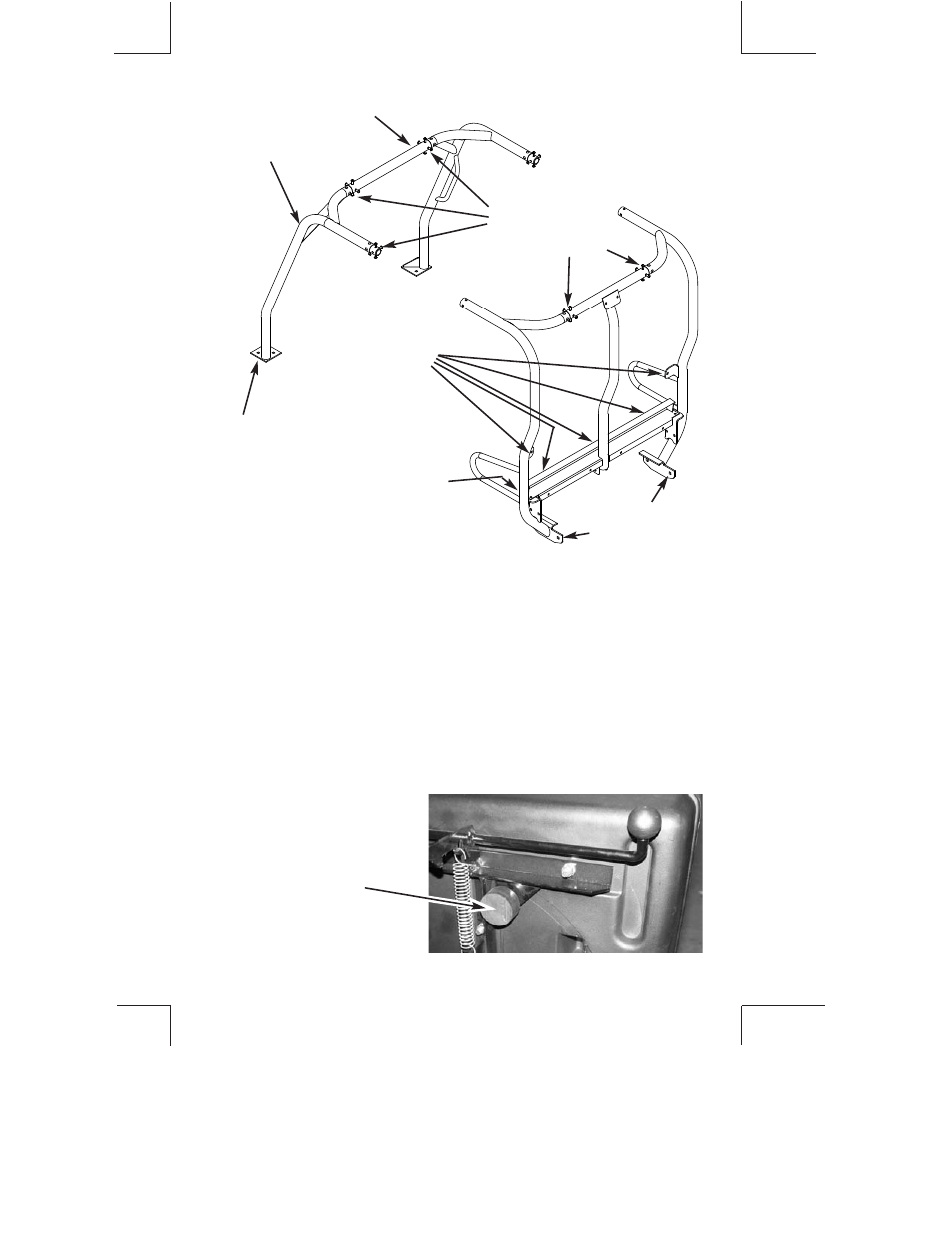

Bumper Pad
5/16 x 3/4”
Hex Socket
Button Head Bolts
Seat Back
Mounting Holes
(Use 5/16” Flatwashers &
Locknuts)
Bottom
Mounting Plates
(Use 5/8 x3” Bolts
& Locknuts)
Cross Member
Front Left
Frame Member
(Use 1/ 2 x 3” Bolts & Locknuts)
Bottom Panel
(Use 3/8 x 1” Bolts & Locknuts)
OCCUPANT PROTECTION
STRUCTURE
