Form No. 61714 R03, Printed in the USA
08/10
Beckett
GeniSys Control
Part No.
Lockout
Time
Valve-on
Delay
Time
2
Motor-off
Delay
Time
2
Replaces
Honeywell:
Replaces
Carlin:
7505A 0000
15 sec - - R7184A, R8184G
48245, 40200 42230,
50200 1
7505B 1500 15 sec 15 sec - R7184B -
7505P 1515 15 sec 15 sec 15 sec R7184P, R7184U 1 60200 1
7505P 1530 15 sec 15 sec 30 sec R7184P, R7184U 1 60200 1
7505P 152M 15 sec 15 sec 2 min R7184P, R7184U 1 60200 1
1) Beckett snap-in alarm module required for direct replacement of the control.
2) Valve-on delay and motor-off delay timings on all models are programmable with Beckett snap-in programming display. Other factory set timings are available.
Contact Beckett for alternate timings.

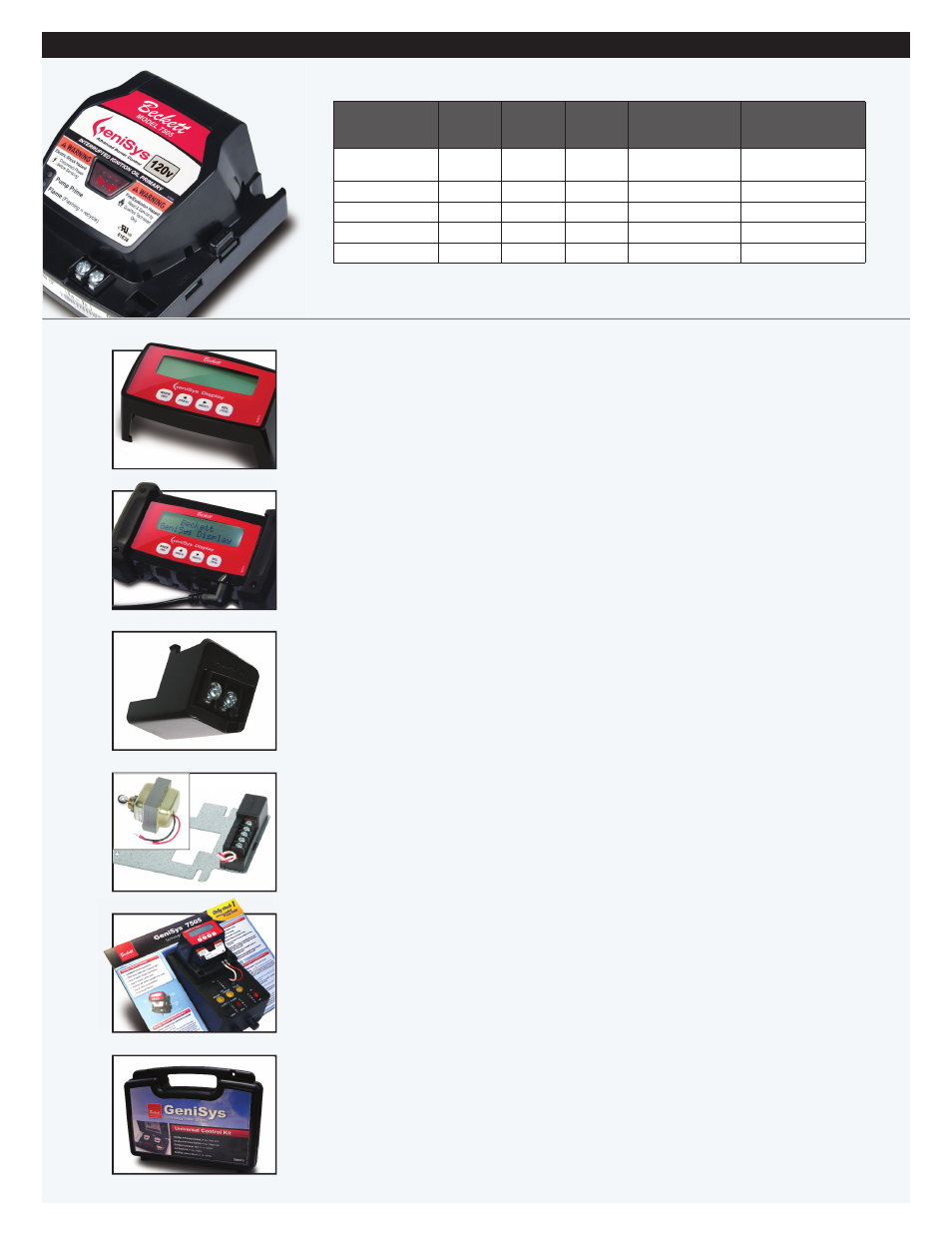

GeniSys Control Cross-Reference Chart
GeniSys Display,
52067U
The GeniSys Display enables the contractor to access the advanced features of the
GeniSys Burner Control. It communicates the current status and last fi fteen cycles of
history for ease of diagnostics. The Tool also allows the contractor to program the pre-
time and post-time delay timings, making the GeniSys a universal control.
GeniSys Contractor Tool,
52082U
The GeniSys Contractor Tool, with its sturdy shock absorbing design, is made for the
contractor’s toolbox. The Tool provides the same functions as the GeniSys Display.
GeniSys Lockout Alarm,
52040U
The GeniSys Lockout Alarm provides dry contacts for use with an alarm system
requiring contact closure in the event of a soft or hard lockout of the GeniSys Control.
A/C Ready Kit,
51950U
The A/C Ready Kit adds air conditioning capability to an existing furnace or boiler.
GeniSys Docking Station,
52049U
The GeniSys Docking Station provides the ability to give power to the GeniSys
Control when it is not attached to a burner. The Docking Station is also a great training
tool giving the ability to simulate burner operation.
GeniSys Universal Control Kit,
52097U
Beckett has combined all of the accessories for the GeniSys control into a convenient
and durable toolbox. Stock the GeniSys Universal Control Kit on your truck and you
can replace almost any burner primary control on the market. Included in the Kit are:
(2) GeniSys Advanced Burner Controls, (1) GeniSys Contractor Tool – programming
and diagnostic tool, (1) GeniSys Lockout Alarm – snap on module to provide dry
contacts, (1) AC Ready Kit – burner mounted kit to add AC to a furnace or boiler.
