TR M2
J1
J2
J3
J4
J5
J6
J7
TR M1
TR M2
J1
J2
J3
J4
J5
J6
J7
TR M1
CAUTION DISC AR D D EC AN TER
IF: . C RA CK ED
. S CR AT CH ED
. B OI LE D D RY
. H EA TE D W HE N E MP TY
. U SE D O N H IG H FL AM E
. O R EX PO SE D ELE CTR IC
E LE ME NT S
FA ILUR E TO C OM PLY R ISK S IN JUR Y
PN : 65 8
19 85 B UNN -O -M AT IC C OR PO RA TIO N
FUN NEL C ON TEN TS
A RE HO T
!
CAUTION :
W AR M ER S AN D S UR FA CE S A RE H OT
ON /LOW ER
START
FRO NT-S IDE-R EAR
CAUTION :
W AR M ER S A ND S UR FA CE S AR E HO T
ON /LOW ER
STA RT
FRO NT-SIDE
-R EAR

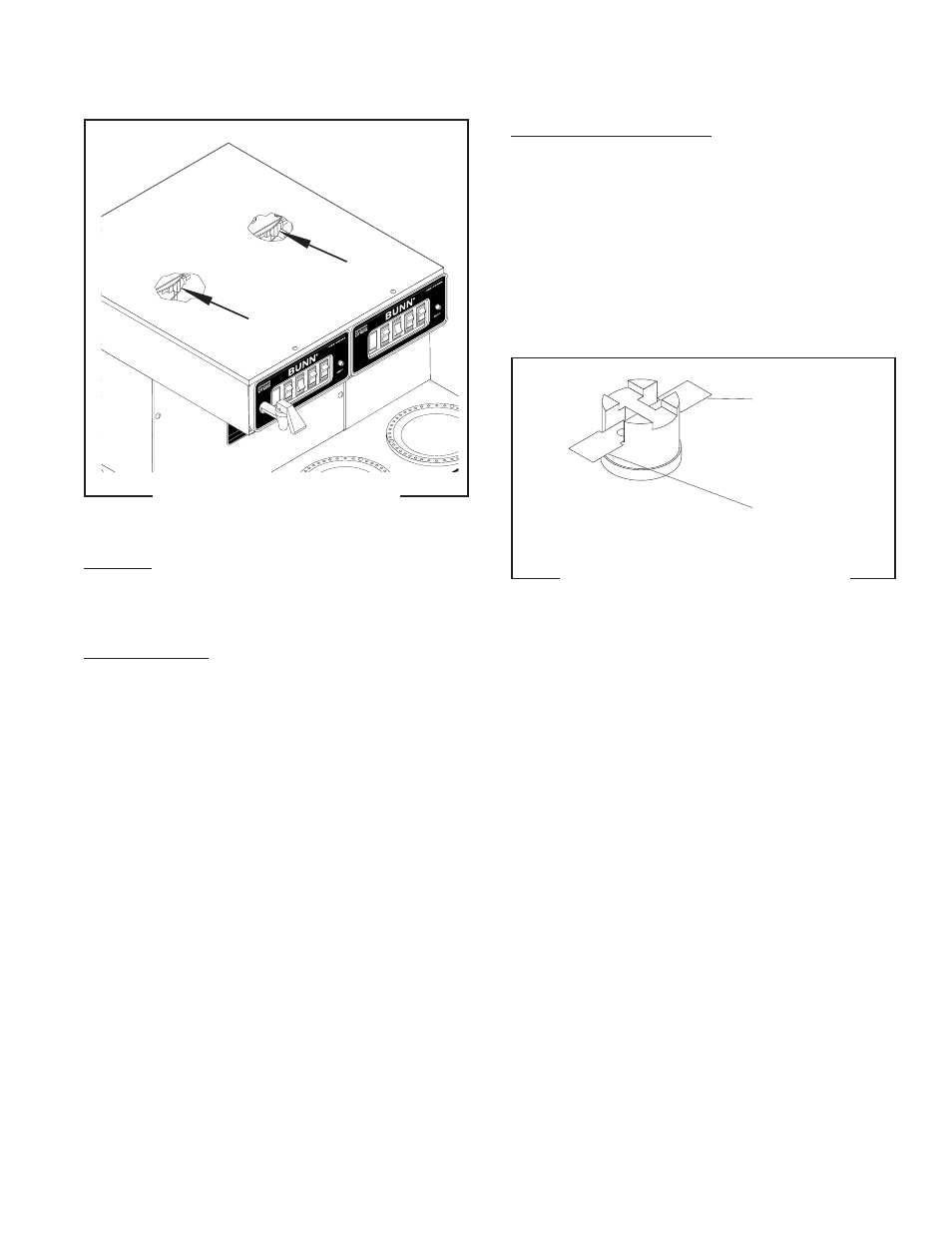

LIMIT THERMOSTAT
Location:
The limit thermostats are located inside the front
access panel on the front side of the tanks.
Test Procedures:
1. Disconnect the brewer from the power source.
2. Disconnect the blue and black wires from the limit
thermostat.
3. With an ohmmeter, check for continuity across the
limit thermostat terminals.
If continuity is present as described, the limit thermo-
stat is operating properly.
If continuity is not present as described, replace the
limit thermostat.
P1800
P1878
SERVICE (cont.)
BLU from Control
Board
BLK from Terminal
Block
FIG. 11 LIMIT THERMOSTATS
Removal and Replacement:
1. Remove the black and blue wires from limit ther-
mostat terminals.
2. Carefully slide the limit thermostat out from under
the retaining clip and remove limit thermostat.
3. Carefully slide the new limit thermostat into the
retaining clip.
4. Refer to FIG. 12 when reconnecting the wires.
FIG. 12 LIMIT THERMOSTAT WIRING
29319 091203
