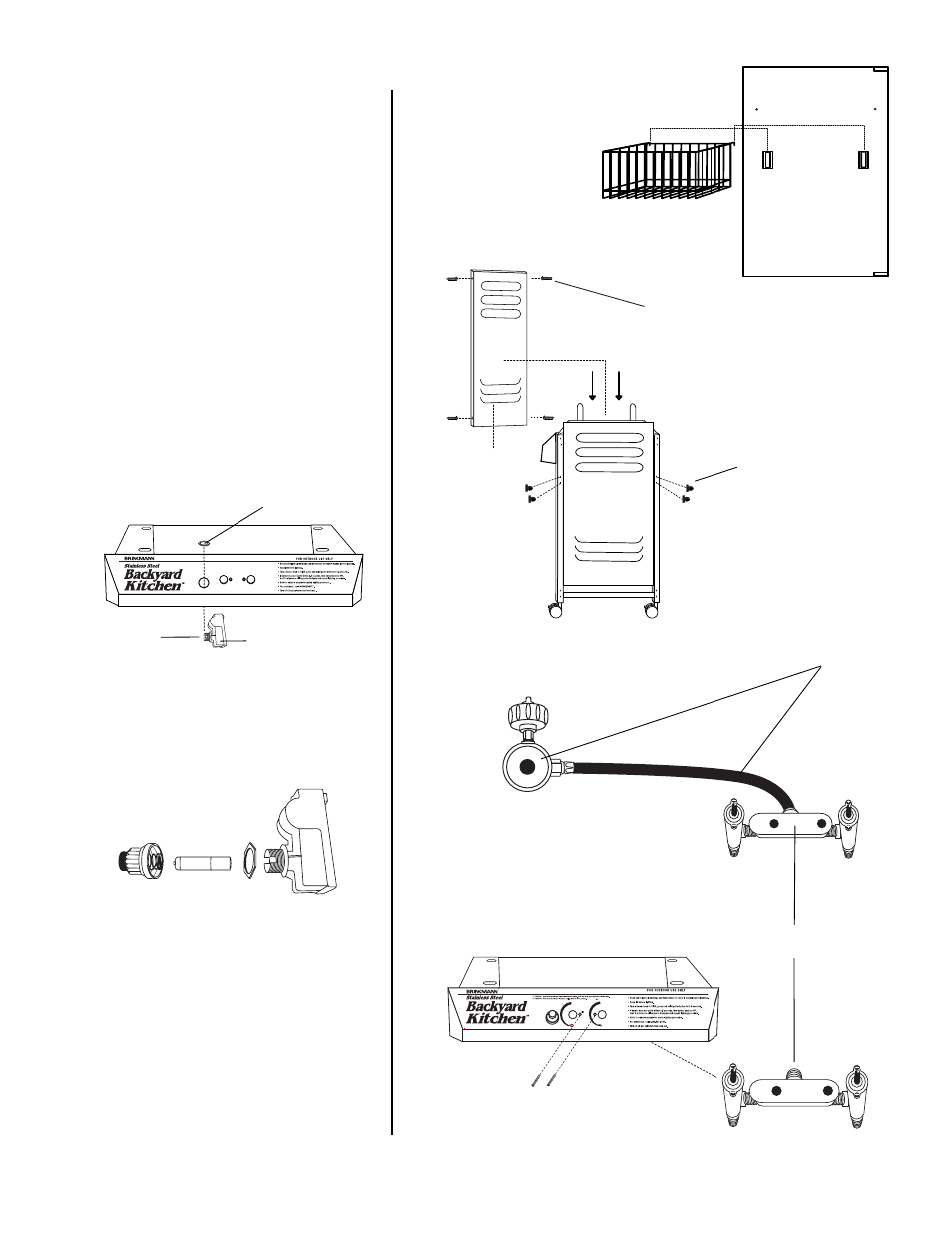

Step 13

Slide baskets into slots located on
inside of doors.

Step 14

Attach right side panel between
straight legs using four #8 X 3/8"
sheet metal screws. Panel should be
mounted with louvers toward bottom
of panel. Then add four plastic inserts
into holes on straight legs.

Step 15

Remove button cap and retaining nut
from igniter. Feed threaded end of
igniter through hole on the control
panel from back side and secure with
retaining nut.

Step 16

To install battery unscrew igniter
button cap. Insert battery with positive
end towards button. Replace igniter
button cap.

Step 17

Attach control valve manifold to
control panel using screws and split
lock washers provided with manifold.
One screw hole is offset for proper
installation.

NOTE: Manifold will have offset

holes and can only be
installed by aligning holes
in manifold with holes in
control panel.

Louvers

Sheet Metal Screws

screw from inside of Panel

Control Valve Manifold

Four - Plastic inserts

Hose/Regulator

Retaining nut

Insert this end

into hole

Igniter
