Grill - Bottom Frame
19

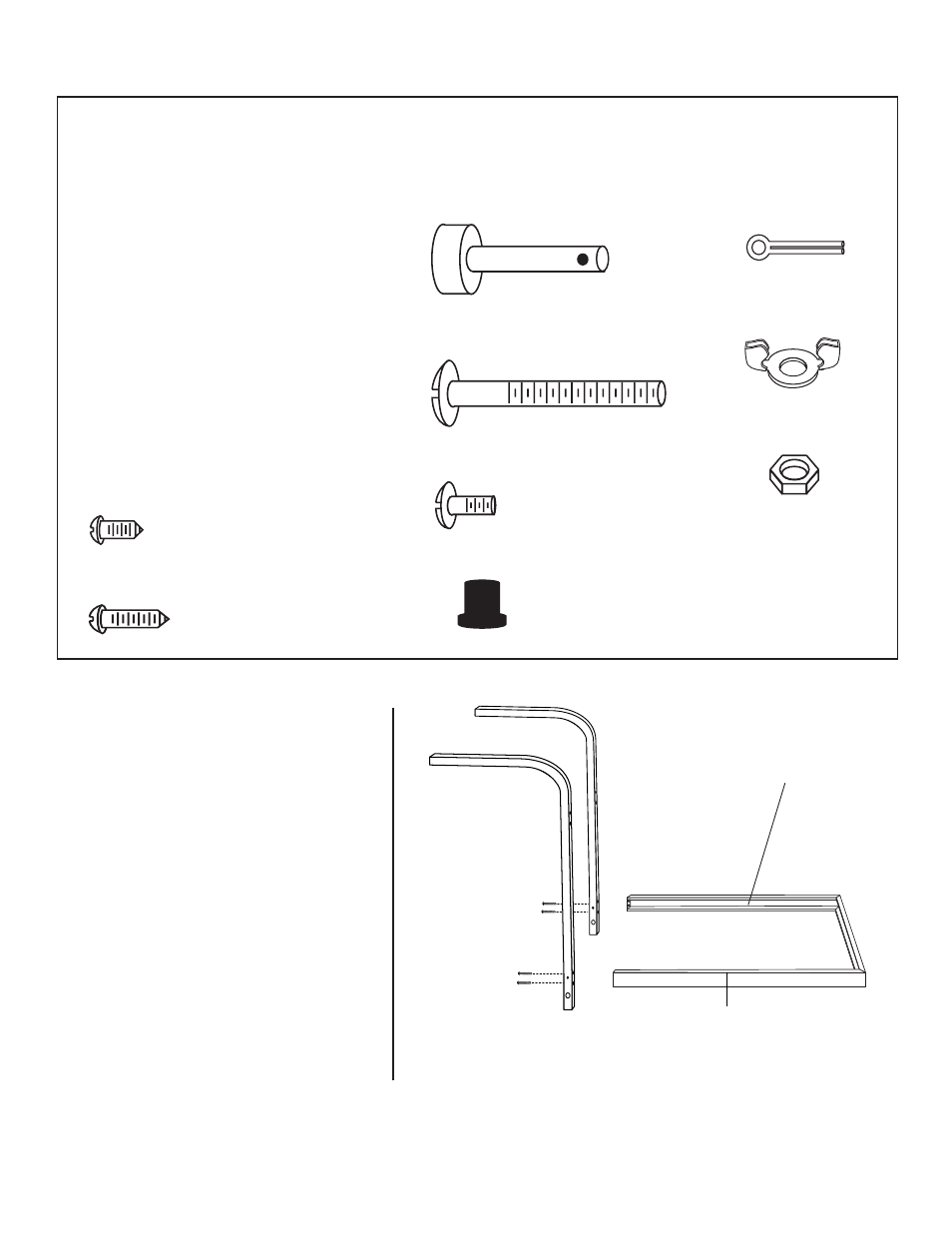

PARTS BAG CONTAINS:
10 #8 X 3/8" Sheet metal screws
12 Stainless steel sheet metal screws
2 Hood pivot pins
34 M6 X 35 bolts
4 M6 X 12 bolts
4 Plastic inserts
2 Cotter pins
2 Wing nuts
10 M6 X 5 hex nuts
4 Stainless steel acorn nuts
PARTS BAG CONTENTS
Make sure you have all items listed under PARTS LIST and PARTS BAG CONTENTS before
you begin the installation process.
Your Parts Bag will include:
10 - #8 X 3/8" Sheet metal screws
4 - M6 X 12 bolts
2 - Hood pivot pins
10 - M6 X 5 hex nuts
4 - Plastic inserts
2 - Cotter pins
2 - Wingnuts
12 - Stainless steel sheet metal screws
NOTE: Wider flange indicates
top edge of frame.
Choose a good, cleared assembly area
and get a friend to help you put your
grill together. Lay cardboard down to
protect grill finish and assembly area.
Step 1
Assemble side table legs to open end
of grill bottom frame using four M6 X 35
bolts (hand tighten only at this point).
Then set aside for Step 3.
34 - M6 X 35 bolts
4 - Stainless steel
acorn nuts
