Back side

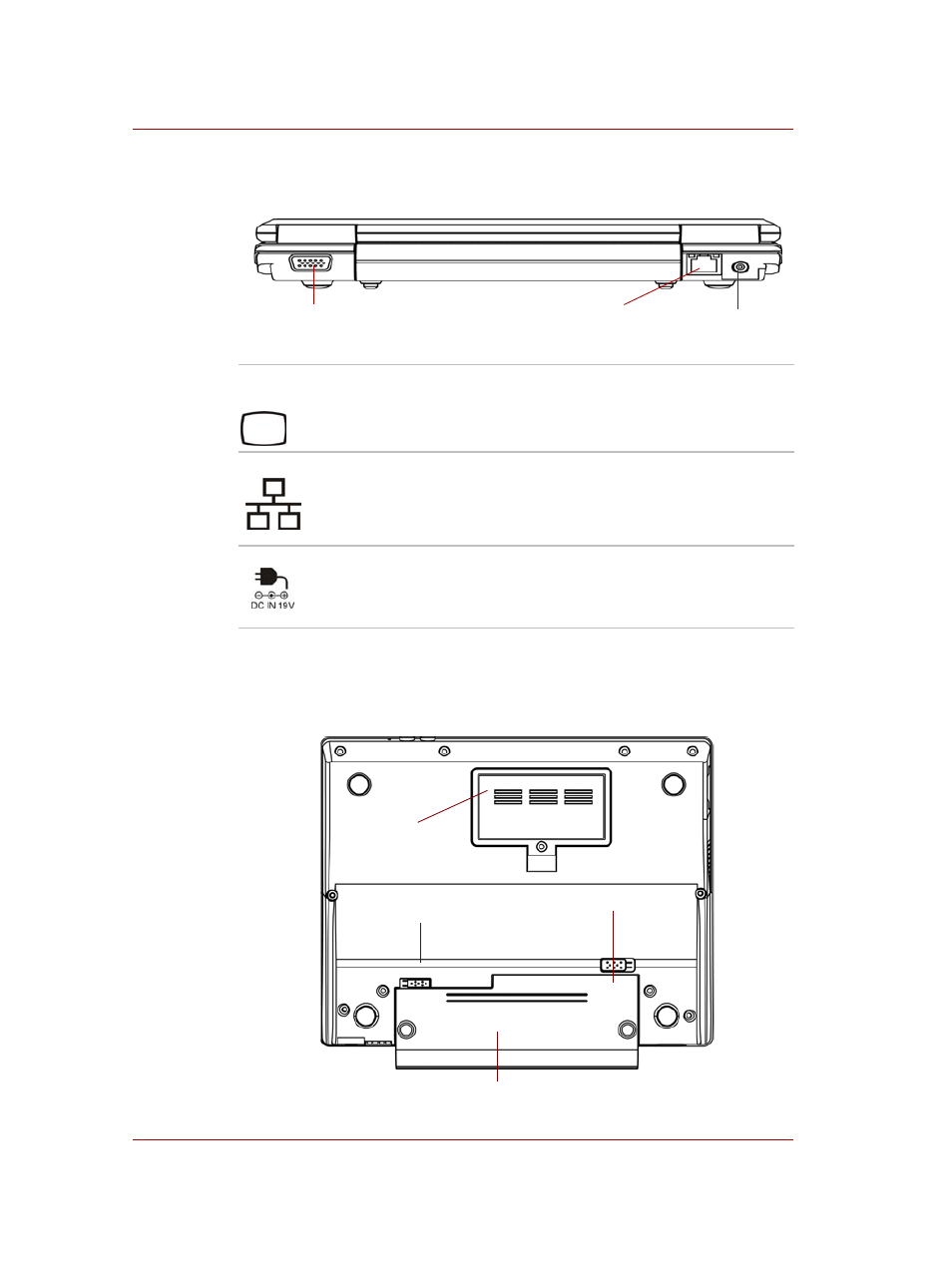

Figure below shows the computer’s back side.

The computer’s back side

Underside

Figure below shows the underside of the computer. Make sure the display

is closed before turning over your computer.

External monitor

port

This 15-pin port allows you to connect an external

monitor.

LAN jack

This jack lets you connect to a LAN. The adaptor

has built-in support for Ethernet LAN (10 Mbit/s,

10BASE-T), or Fast Ethernet LAN (100 Mbit/s,

100BASE-TX).

DC IN 19V

The AC adaptor connects to this socket. Use only

the model of AC adaptor that comes with the

computer. Using the wrong adaptor can damage

your computer.

LAN jack

External monitor port

DC IN 19V

Memory
module cover

Battery pack

Battery release Latch

Battery pack lock
