9
KEYBOARD AMP/PA SYSTEM KX1200

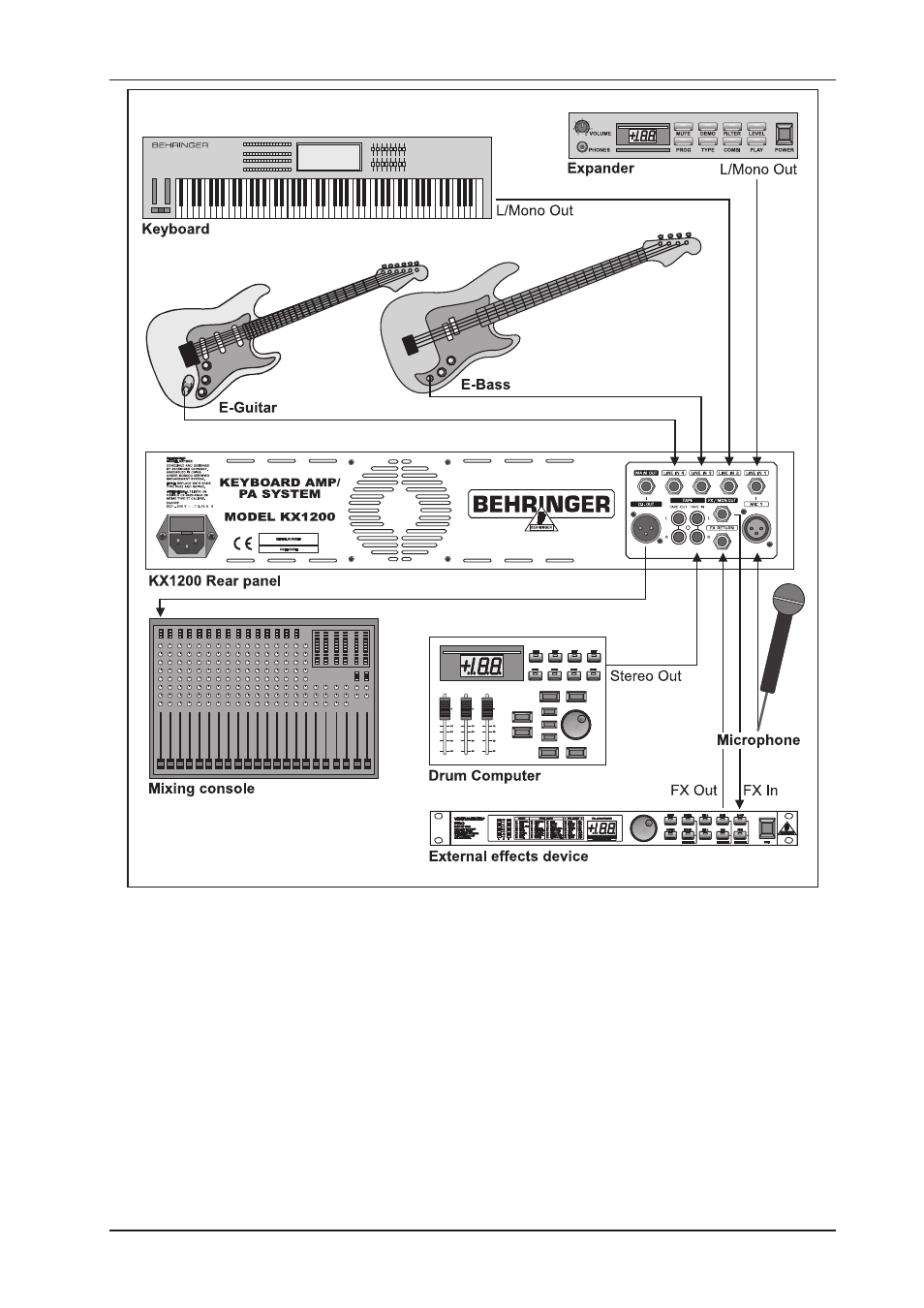

Fig. 2.2: Expanded set-up
3. AUDIO CONNECTIONS
The 1/4" jack inputs/outputs of your BEHRINGER KX1200 are on balanced mono jacks – except for the
LINE IN-connectors (TRS) and the stereo headphones connector. The DIRECT OUT and microphone input are
on balanced XLR connectors. The tape inputs/outputs are on cinch connectors.
+
Please ensure that only qualified personnel install and operate the KX1200. During installation
and operation the user must have sufficient electrical contact to earth, otherwise electrostatic
charges might affect the operation of the unit.
