900W Generator
20

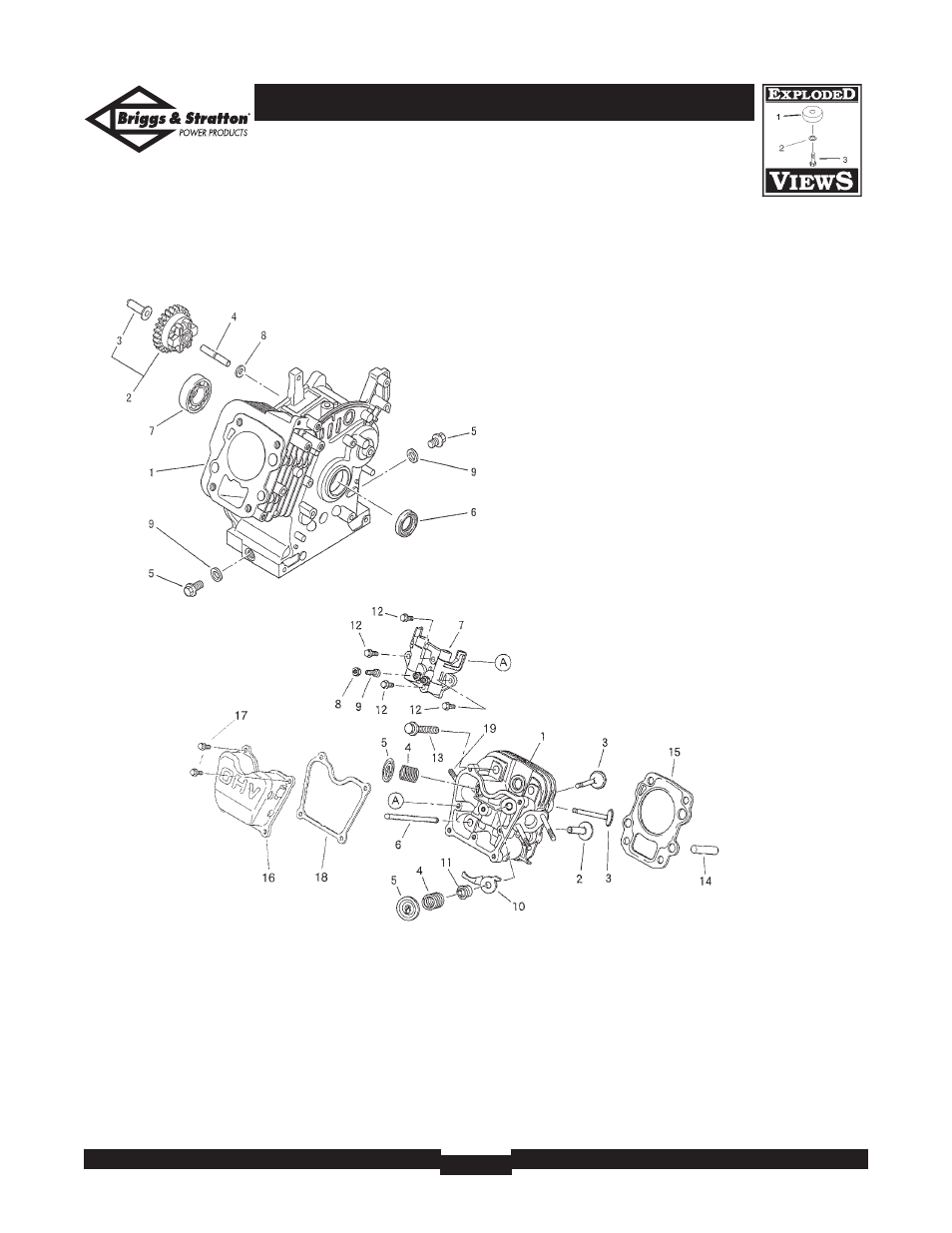

EXPLODED VIEW AND PARTS LIST – ENGINE
Cylinder Block, Cylinder Head
Item Part # Qty Description
1 187404GS 1 ASSY, CYL HEAD
2 187406GS 2 TPPT, CYL HEAD
3 187408GS 2 VLV, EXH
4 187410GS 2 SPRNG, VLV
5 187412GS 2 RTNR, VLV SPG
6 187414GS 2 ROD, PUSH
7 187416GS 1 ASSY, RCKR, ARM
8 187417GS 2 NUT, CYL HEAD
9 187418GS 2 SCRW, ADJST
10 187421GS 1 PLT, CYL HEAD
Item Part # Qty Description
11 187422GS 1 SEAL, VLV STEM
12 187423GS 4 NUT, M5 X 0.8
13 187426GS 4 BOLT, FLNG
14 187428GS 2 PIN, DWL
15 187429GS 1 GSKT, HEAD
16 187468GS 1 CVR, VALVE
17 187470GS 4 BOLT, VALVE CVR
18 187472GS 1 GSKT, VALVE CVR
19 187569GS 2 BOLT, STUD
Item Part # Qty Description
1 187380GS 1 BLOCK, CYL
2 187386GS 1 ASSY, GOV, GEAR
3 187387GS 1 SLIDER, GOV
4 187391GS 1 SHFT, GOV
5 187393GS 2 PLUG, DRAIN
6 187394GS 2 SEAL, OIL
7 187395GS 1 BRG, BALL
8 187400GS 1 WSHR, CYLBLOCK
9 187402GS 2 GSKT, CYLBLOCK
