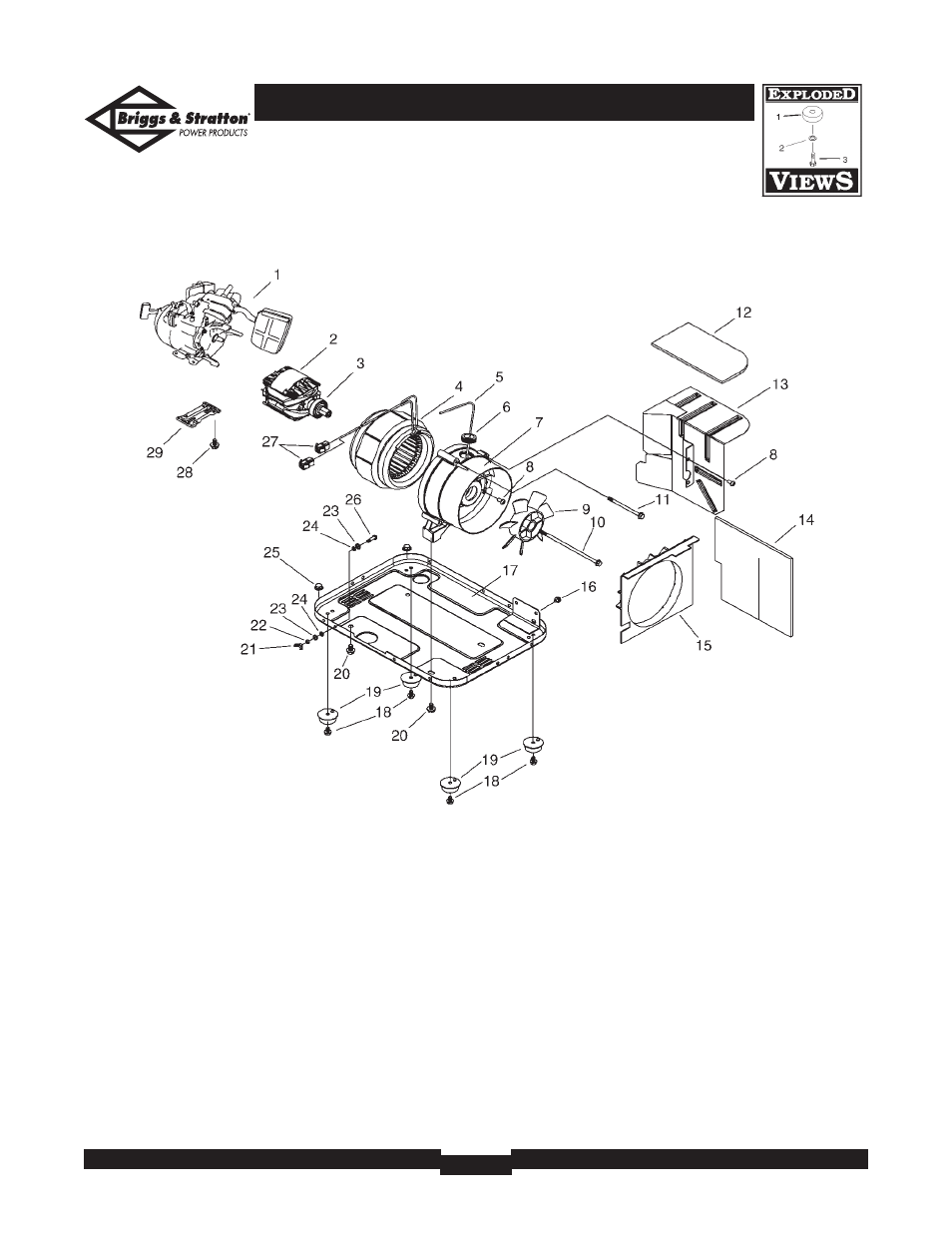

EXPLODED VIEW AND PARTS LIST – MAIN UNIT
Item Part # Qty Description
1 NSP 1 ENG, MITSUB, 2.4HP
2 187378GS 1 ROTOR
3 187411GS 1 BRG
4 187379GS 1 STATOR
5 187430GS 1 LEAD, GREEN
6 187409GS 1 BUSHING, LEAD WIRE, G790B
7 187381GS 1 RBC, 1K
8 187399GS 3 SCREW, SELF TAP, M6-12
9 187382SGS 1 FAN, COOLING
10 187388GS 1 BOLT, RTR
11 187389GS 3 BOLT, STATOR
12 187405GS 1 INSLTN, HEAT SEALED, #1
13 187384GS 1 MFFLR, SEALED
14 187407GS 1 INSLTN, HEAT SEALED, #2
15 187403GS 1 DUCT, AIR
Item Part # Qty Description
16 187392GS 2 PHMS, M6-1.0, W/L/FW
17 187383GS 1 BASE, GEN
18 187390GS 4 BOLT, FLNG, M6-1.0 X 10
19 187385GS 4 MNT, VIBR
20 187427GS 4 HHCS, FLNG, M8-1.25 X 12
21 187424GS 1 NUT, WING, M5 X 0.8
22 187423GS 1 NUT, M5 X 0.8
23 187419GS 2 WSHR, LOCK
24 187420GS 2 WSHR, FLAT
25 187401GS 2 NUT, M8-1.25, FLANGE
26 187415GS 1 PHMS, M5-0.8 X 20
27 187413GS 2 CNNCTR
28 187434GS 4 HHCS, FLNG
29 187431GS 1 STND, ENG
