Blue/white
To system control terminal of
the power amp (max. 300 mA 12 V DC).
Blue/white (6*)
Refer to “Connecting to a
Sold Separately Power Amp”.
RCA output
Refer to “Connecting to a sold
separately Power Amp”.
Blue/white (7*)
To Auto-antenna relay control
terminal (max. 300 mA 12 V DC).
Speaker leads
White
: Front left +
White/black : Front left ≠
Gray
: Front right +
Gray/black : Front right ≠
Green
: Rear left + or Not Used
Green/black : Rear left ≠ or Not Used
Violet
: Rear right + or Subwoofer +
Violet/black : Rear right ≠ or Subwoofer ≠
This Product
IP-BUS input
(Blue)
Note:
When a subwoofer is connected to this unit
instead of a rear right speaker, do not connect the
rear left speaker lead to anything. For details, refer
to the Initial Setting Menu in the Operation
Manual.
The pin position of the ISO connector will differ
depends on the type of vehicle. Connect 6* and 7*
when Pin 5 is an antenna control type. In another
type of vehicle, never connect 6* and 7*.

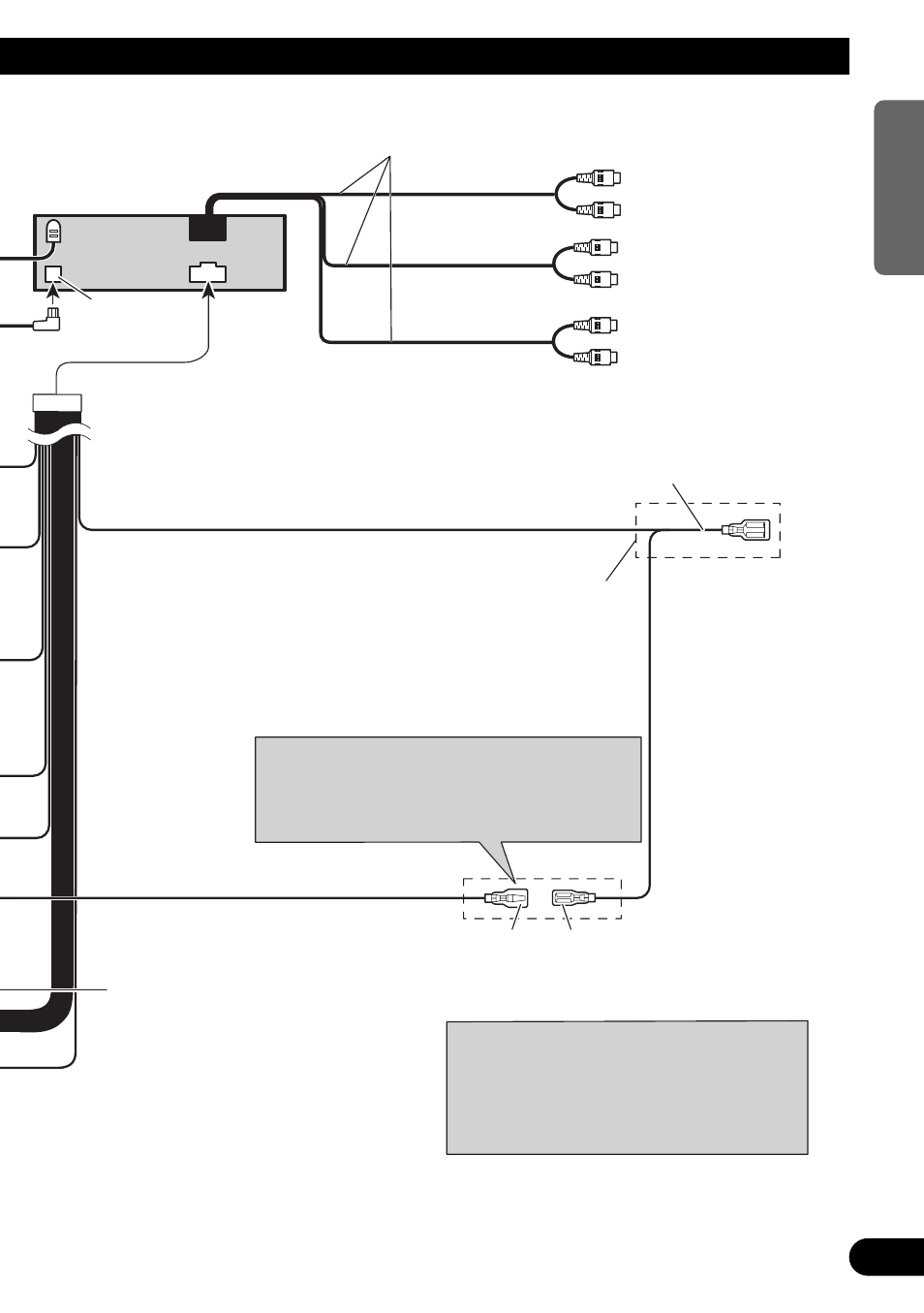

Fig. 2
