Connecting using a SCART AV
cable
A SCART-type AV connector is provided for
connection to a TV or AV receiver. The video
output is switchable between ordinary
composite and RGB. See AV Connector Out on
page 36 for how to set it.
The SCART AV connector also outputs analog
audio, so there is no need to also connect the
AUDIO OUT L/R jacks.
• Use a SCART cable (not supplied) to
connect the AV CONNECTOR (RGB) TV/
AV Receiver output to a SCART AV input
on your TV (or AV receiver).
Connecting using the
component video output
You can use the component video output
instead of the standard video out jack to
connect this player to your TV (or other
equipment). This should give you the best
quality picture from the three types of video
output available.
• Use a component video cable (not
supplied) to connect the COMPONENT
VIDEO OUT jacks to a component video
input on your TV, monitor or AV receiver.
Watching progressive scan video
from the component video
outputs
This player can output progressive scan video
from the component video output. Compared
to interlace video, progressive scan video
effectively doubles the scanning rate of the
picture, resulting in a very stable, flicker-free
image.
To set up the player for use with a progressive
scan TV, see Video Output settings on page 36.
When the player is set to output progressive
scan video, the
PRGSVE indicator lights in the
front panel display.

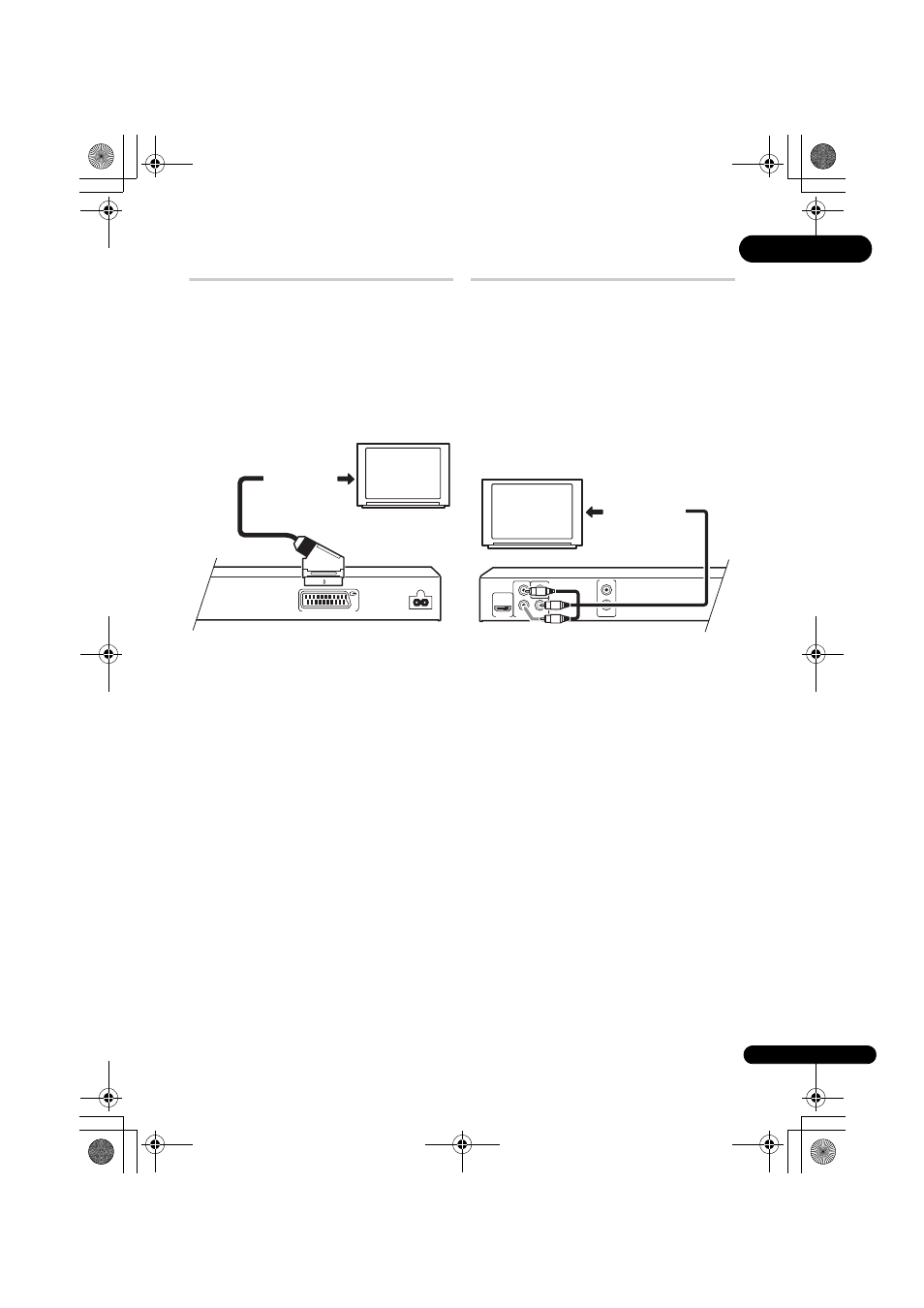

AV CONNECTOR (RGB) TV/AV Receiver
