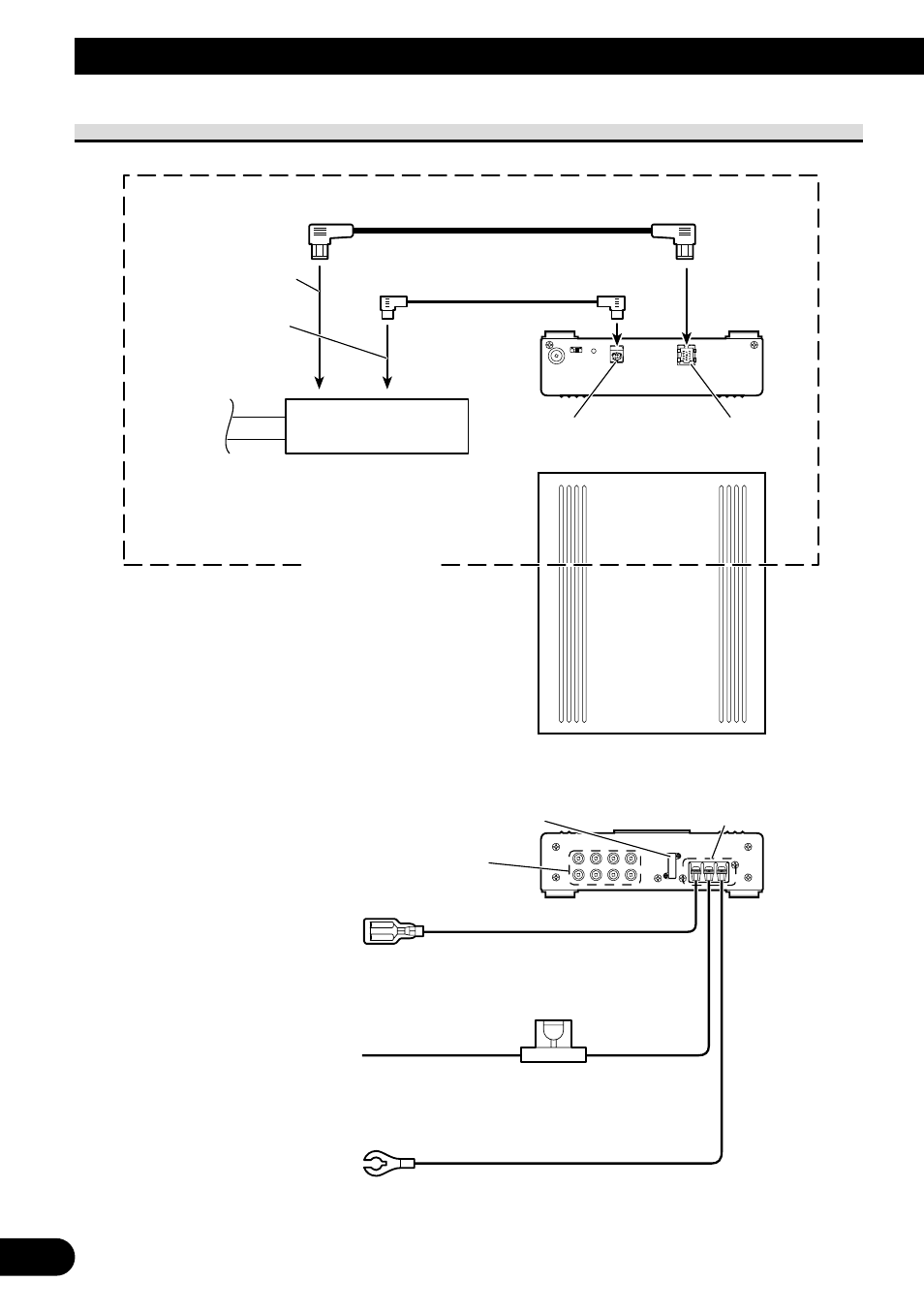

Connection Diagram
Optical INPUT
(blue)
IP-BUS INPUT
(blue)
IP-BUS cable (supplied)
optical cable (supplied)
DEX-P90RS
To IP-BUS OUTPUT
(black)
To Optical OUTPUT
(black)
Audio system
Fuse (4A)
Fuse holder
Power Terminal
Refer to “Connecting the Power
Terminal” on page 51.
Yellow
To terminal always supplied
with power regardless of
ignition switch position.
Black (ground)
To vehicle (metal) body.
Blue/white
To system control terminal
of the power amp
(max. 300 mA 12 V DC).
RCA OUTPUT
See “Connecting the
RCAInput Amprifier.”
Connecting the Units
