21
Device Connections

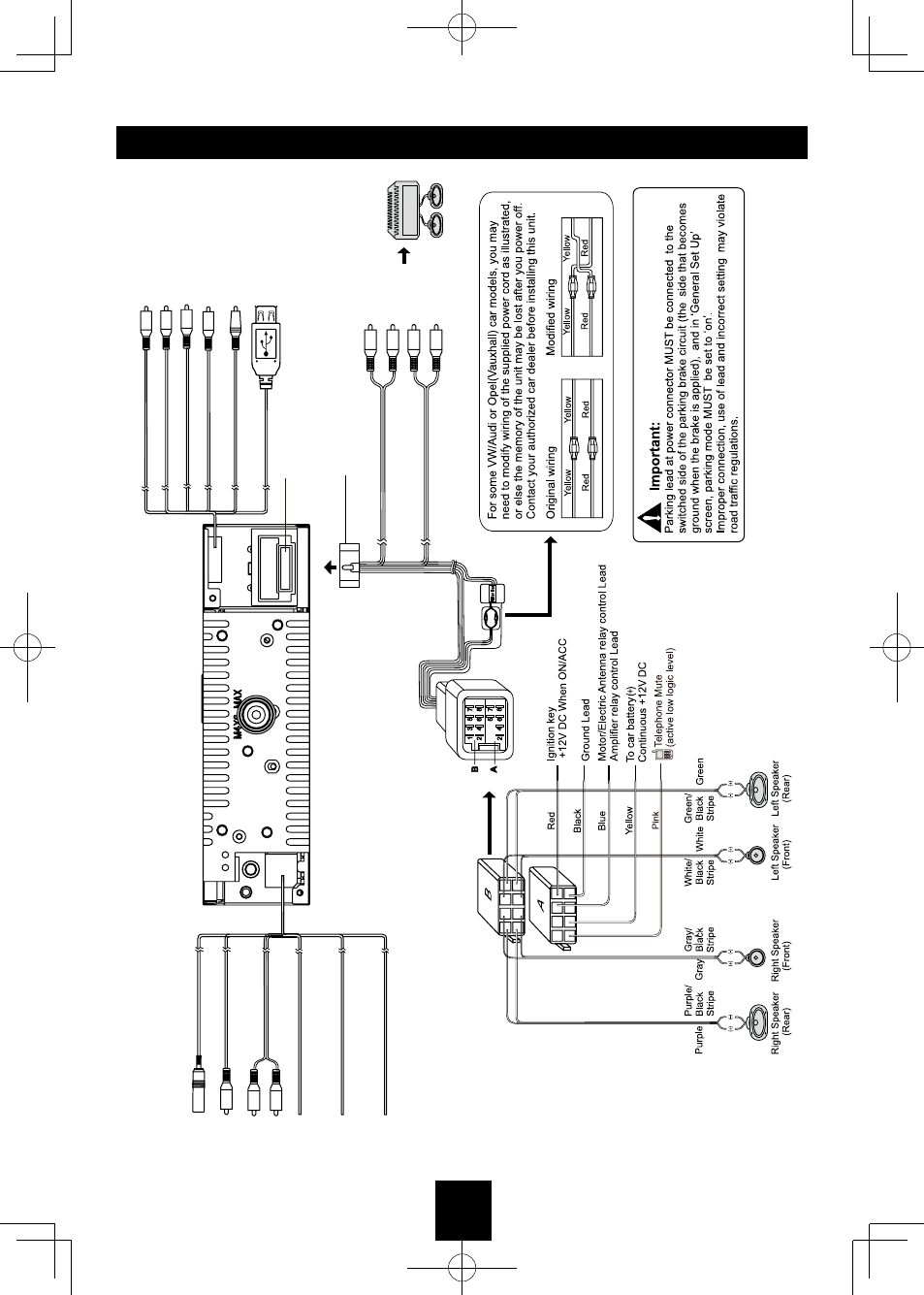

Wiring Diagram
Audio in (A
V 1)
L(White) R(Red)
(Black)
Bluetooth microphone
(Pink
)
Radio
Antenna
Reverse
(Active high level input
)
Parking
(Active low level input
)
Fuse 15A
(Green/ White)
Bluetooth
Antenna
(Gray)
(Blue)
Subwoofer out
Rear Line-out(Gray
)
ISO Connecto
r
Amplifier
Connecto
r
L(White) R(Red)
Front Line-out(Brown)
L(White) R(Red)
Video-out
1
Video-out
2
(Y
ellow)
(Y
ellow)
(Y
ellow)
Camera-in
(Y
ellow)
Video-in (A
V 1)
(Black)
USB slot
