Connecting the speaker output terminals – Pioneer GM-6000F User Manual
Page 9
8
ENGLISH
ESPAÑOL
DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
ENG/MASTER 96

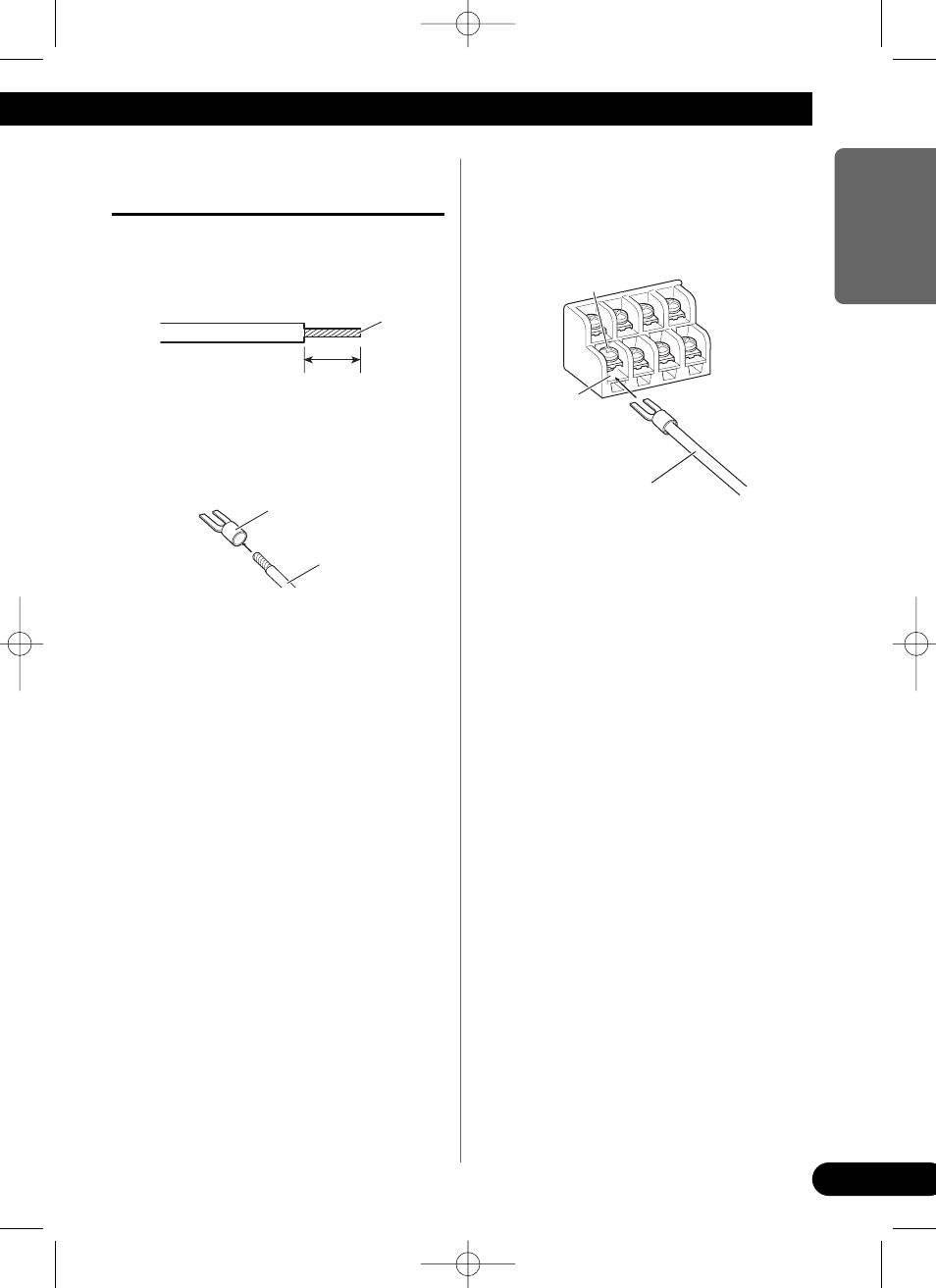

Connecting the Speaker Output
Terminals
1. Expose the end of the speaker wires
using nippers or a cutter by about
10 mm and twist.
2. Attach lugs to speaker wire ends.
Lugs not supplied.
• Use pliers, etc., to crimp lugs to wires.
3. Connect the speaker wires to the
speaker output terminals.
• Fix the speaker wires securely with the termi-
nal screws.
10 mm
Twist
Speaker wire
Lug
Speaker
output
terminal
Terminal screw
Speaker wire
1_HRD0264A_Eng 1/21/04 12:40 Page 9
