Connecting Up 02
13
En

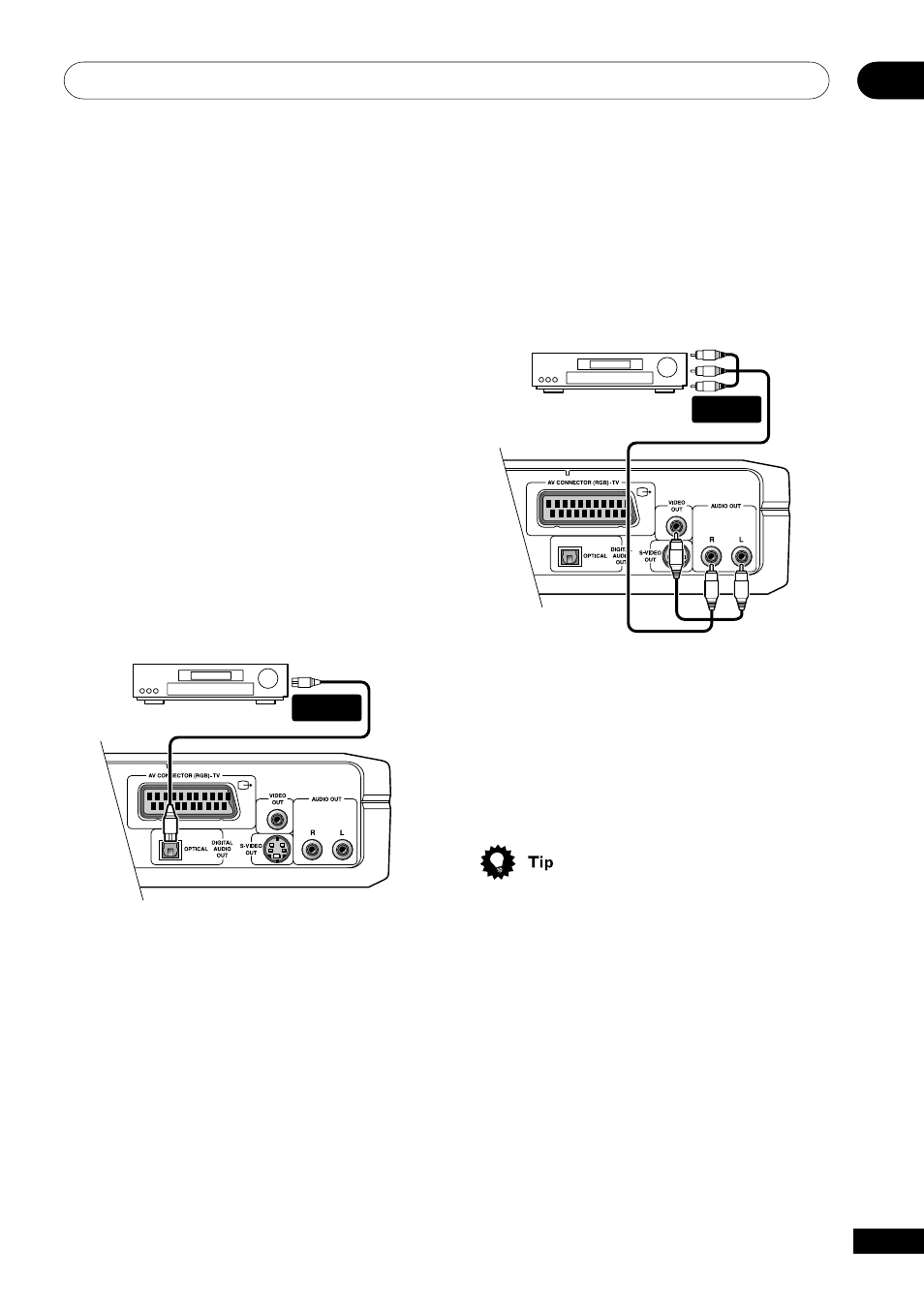

Connecting to an AV
receiver
To enjoy multichannel surround sound you
need to connect this player to an AV receiver
using the digital output.
In addition to a digital connection, we
recommend also connecting using the
stereo analog connection.
You’ll probably also want to connect a video
output to your AV receiver. You can use any
of the video outputs available on this player
(the illustration shows a standard (compos-
ite) connection).
1 Connect the OPTICAL DIGITAL AUDIO
OUT jack on this player to a digital input
on your AV receiver.
AV receiver
DIGITAL IN
OPTICAL
This enables you to listen to multichannel
surround sound.
Use an optical cable (not supplied) to
connect the OPTICAL DIGITAL AUDIO OUT
jack to an optical input on your AV receiver.
2 Connect the analog AUDIO OUT L/R
and VIDEO OUT jacks on this player to a
set of analog audio and video inputs on
your AV receiver.
AV receiver AUDIO/
VIDEO INPUT
The diagram shows standard video connec-
tions, but you can alternatively use the S-
Video or SCART cable connections if they’re
available.
3 Connect the AV receiver’s video
output to a video input on your TV.
• You usually have to connect the same
kind of video cable between your DVD
player and AV receiver, and between
your AV receiver and TV.
