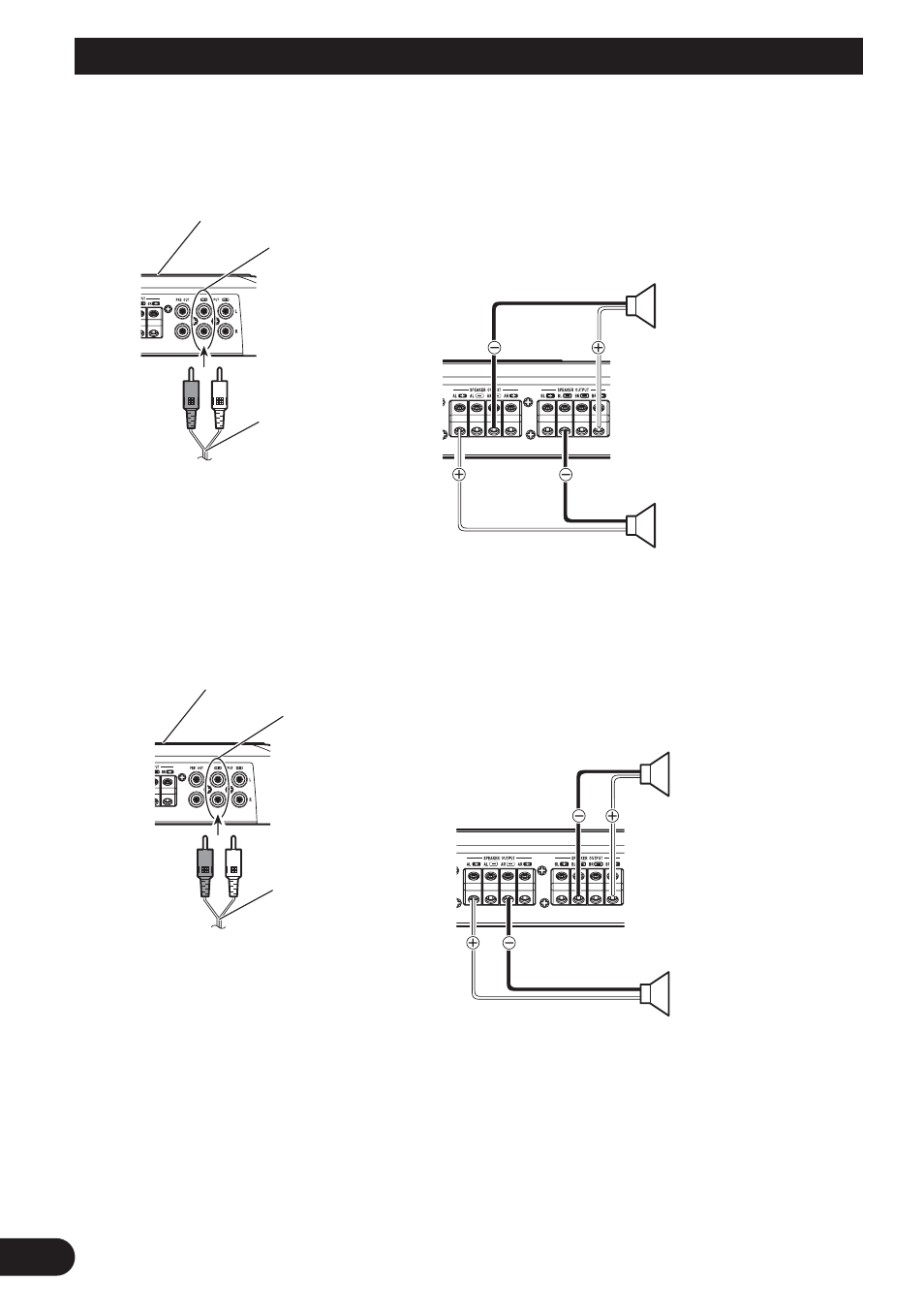

Connecting the Unit
Two-channel (Stereo)
Two-channel (Mono)
RCA input jack A
In the case of two-channel mode
connect RCA plugs to the RCA
input jack A.
Speaker (Left)
Speaker (Right)
Connecting wire with
RCA plugs
(sold separately)
From car stereo (RCA output)
Speaker (Mono)
Speaker (Mono)
Connecting wire with
RCA plugs
(sold separately)
From car stereo (RCA output)
Input select switch is on
the top of the unit. Slide
this switch to the left.
RCA input jack A
In the case of two-channel mode
connect RCA plugs to the RCA
input jack A.
Input select switch is on
the top of the unit. Slide
this switch to the left.
