Controls and displays
English
9
En
Chapter 3
Controls and displays

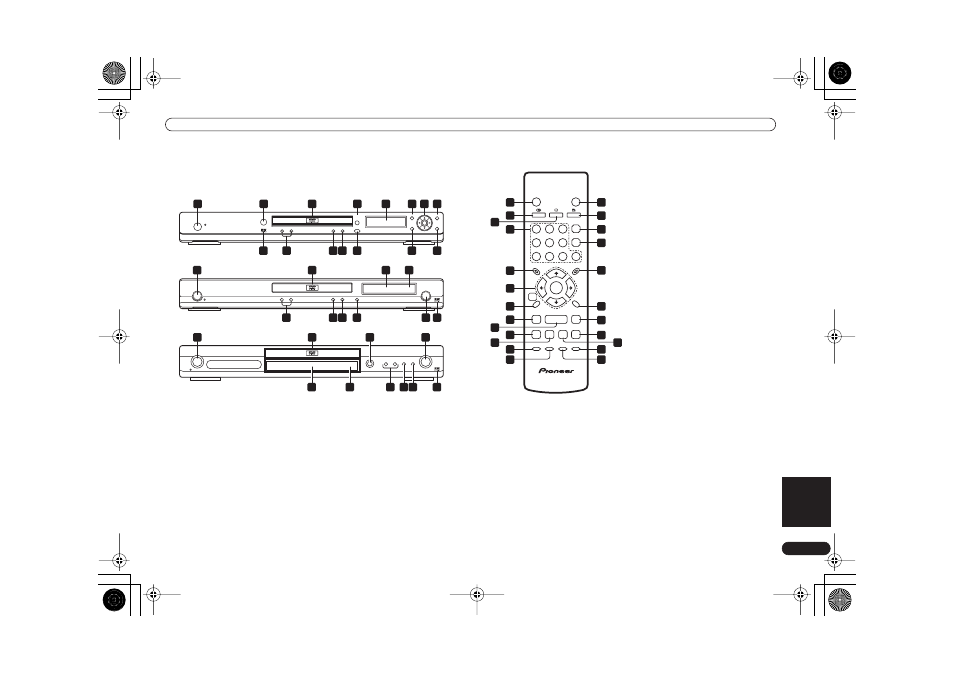

Front panel
1
STANDBY/ON
(page 10)
2
Remote control sensor
(page 9)
3
Disc tray
4
OPEN/CLOSE
(page 11)
5
Display
6
TOP MENU
(page 12)
7
ENTER & cursor buttons
(page 10)
8
MENU
(page 12)
9
RETURN
(page 12)
10 HOME MENU
(page 10)
11
(page 11)
12
(page 11)
13
(page 11)
14
and
(page 11)
15 RW Compatible
(page 6)
Remote control
Using the remote control
Keep in mind the following when using the remote control:
• Make sure that there are no obstacles between the remote and the remote sensor on the unit.
• The remote has a range of about 7m.
• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the
unit’s remote sensor.
• Remote controllers for different devices can interfere with each other. Avoid using remotes for
other equipment located close to this unit.
• Replace the batteries when you notice a fall off in the operating range of the remote.
STANDBY/ON
TOP MENU
MENU
HOME
MENU
RETURN
ENTER
OPEN/
CLOSE
1
3
2
4
5
6
7
8
9
10
11
12
13
15
14
DV-2750
STANDBY/ON
1
3
2
5
4
11 15
12
13
14
DV-370
STANDBY/ON
OPEN/CLOSE
1
3
4
11
13 12
15
2
5
14
DV-470
1
STANDBY/ON
(page 10)
2
AUDIO
(page 16)
3
SUBTITLE
(page 16)
4
Number buttons
(page 11)
5
TOP MENU
(page 12)
6
ENTER & cursor buttons
(page 10)
7
HOME MENU
(page 10)
8
and
/
(page 13)
9
(page 11)
10
(page 11)
11
(page 11)
12 PLAY MODE
(page 14)
13 SURROUND
(page 17)
14
OPEN/CLOSE
(page 11)
15 ANGLE
(page 16)
16 CLEAR
17 ENTER
(page 10)
18 MENU
(page 12)
19 RETURN
(page 10)
20
and
/
(page 13)
21
(page 11)
22
(page 11)
23 DISPLAY
(page 16)
24 ZOOM
(page 16)
0
1
2
3
4
5
6
7
8
9
CLEAR
ENTER
ANGLE
AUDIO
TOP MENU
HOME
MENU
SUBTITLE
PLAY MODE SURROUND
ZOOM
DISPLAY
MENU
RETURN
ENTER
STANDBY/ON
OPEN/CLOSE
/
/
1
14
15
16
17
18
19
20
21
23
2
4
5
6
7
8
10
12
13
3
9
11
22
24
