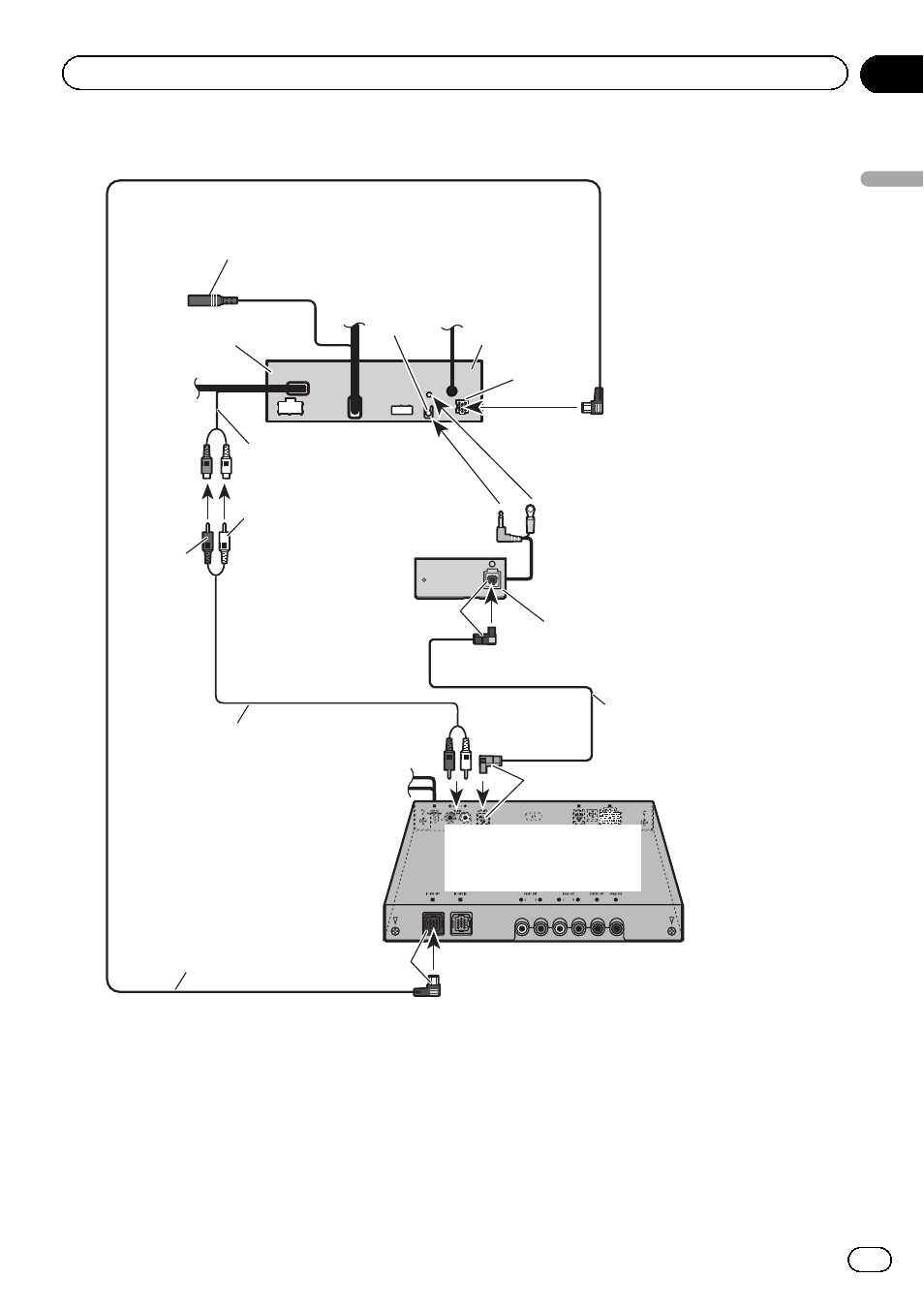

When connecting with a multi-channel processor

This product

IP-BUS input

Optical
output

Wired remote input (WIRED REMOTE INPUT)
Hard-wired remote control adapter can be
connected (sold separately).

17 cm

Subwoofer output
(SUBWOOFER OUTPUT)

IP-BUS cable (supplied with
multi-channel processor)

RCA cable (supplied with
multi-channel processor)

Optical cable
(supplied with
multi-channel processor)

Black

Optical cable connection box
(supplied with multi-channel processor)

To SWL

To SWR

Blue

Multi-channel processor
(DEQ-P6600)
(sold separately)

This product

Black
