Specifications
General
System ... DVD system and Compact Disc digital audio system
Power requirements ................. AC 220-240 V, 50/60 Hz
Power consumption ................................................ 11 W
Power consumption in standby mode ....... less than 1 W
Weight ................................................................... 2.7 kg
Dimensions .................. 420 (W) x 282 (D) x 95.5 (H) mm
(Not including protruding cables, etc.)
Operating temperature ............................ +5°C to +35°C
Operating humidity .......... 5% to 85% (no condensation)
S-Video output
Y (luminance) - Output level ........................ 1 Vp-p (75
Ω)
C (color) - Output level ........................ 286 mVp-p (75
Ω)
Jacks .......................................................... S-VIDEO jack
Video output
Output level ................................................ 1 Vp-p (75
Ω)
Jacks ................................................................. RCA jack
AV connector input/output .................... 21-pin connector
This connector provides the video and audio signals
for connection to a compatible color TV or monitor.

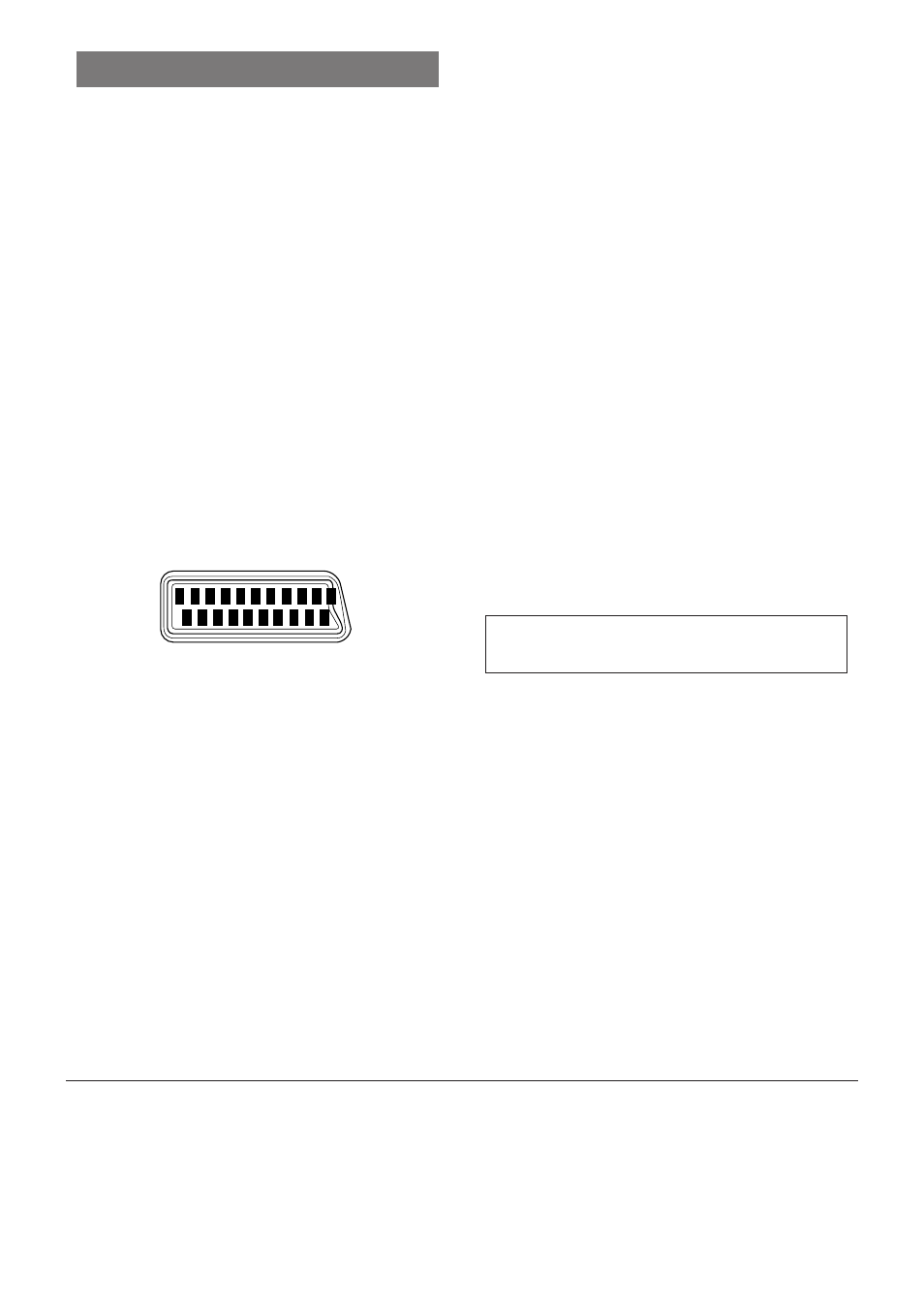

21-pin connector assignment
PIN no.
1 Audio 2/R out 13 GND
3 Audio 1/L out 14 GND
4 GND 17 GND
5 GND 18 GND
8 Status 19 Video out
9 GND 21 GND
Audio output
Output level
During audio output ............. 200 mVrms (1 kHz, –20 dB)
Number of channels ....................................................... 2
Jacks ............................................................... RCA jacks
Digital audio characteristics
Frequency response ..... 4 Hz to 44 kHz (DVD fs: 96 kHz)
S/N ratio ............................................................... 118 dB
Dynamic range ..................................................... 103 dB
Total harmonic distortion ................................. 0.0016 %
Wow and flutter ............................ Limit of measurement
(±0.001% W. PEAK) or lower
Digital output
Coaxial digital output ......................................... RCA jack
Other terminals
CONTROL IN .......................................... Minijack (3.5 ø)
Accessories
Audio cord ...................................................................... 1
Video cord ...................................................................... 1
Power cord ..................................................................... 1
Remote control unit ....................................................... 1
AA (R6P) dry cell batteries ............................................. 2
Operating Instructions ................................................... 1
Note
The specifications and design of this product are subject to
change without notice, due to improvement.
1 3 5 7 9 11 13 15 17 19 21
2 4 6 8 10 12 14 16 18 20
