Connecting the Units

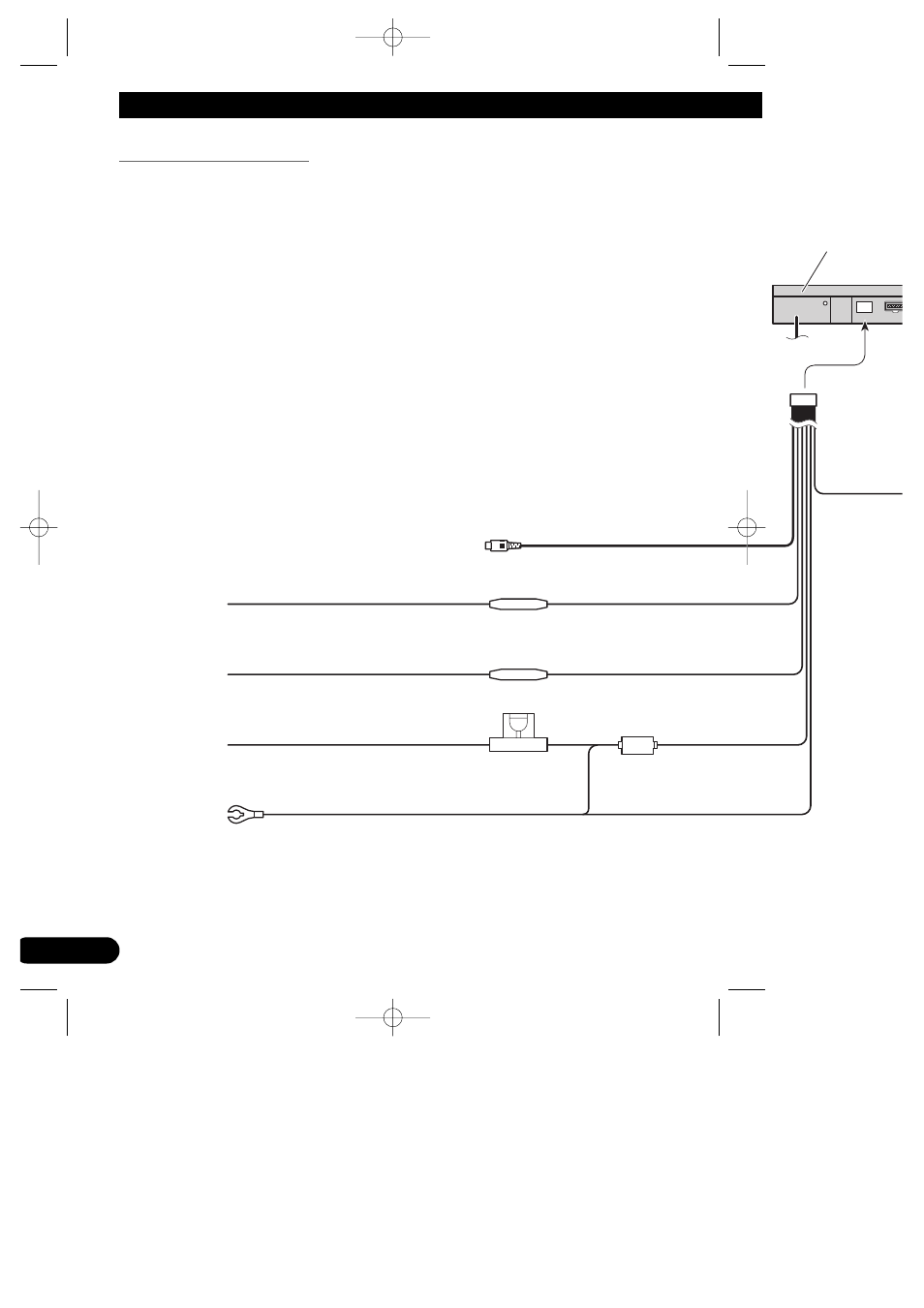

Connecting the Power Cord
Light green
Used to det
This lead m
of the park
Red
To electric terminal controlled by ignition
switch (12 V DC) ON/OFF.
Fuse resistor
Fuse holder
Black (ground)
To vehicle (metal) body.
This Product
Yellow
To terminal always supplied with power
regardless of ignition switch position.
Yellow (video input)
(VIDEO INPUT) 15 cm
Fuse resistor Orange/white
To lighting switch terminal.
